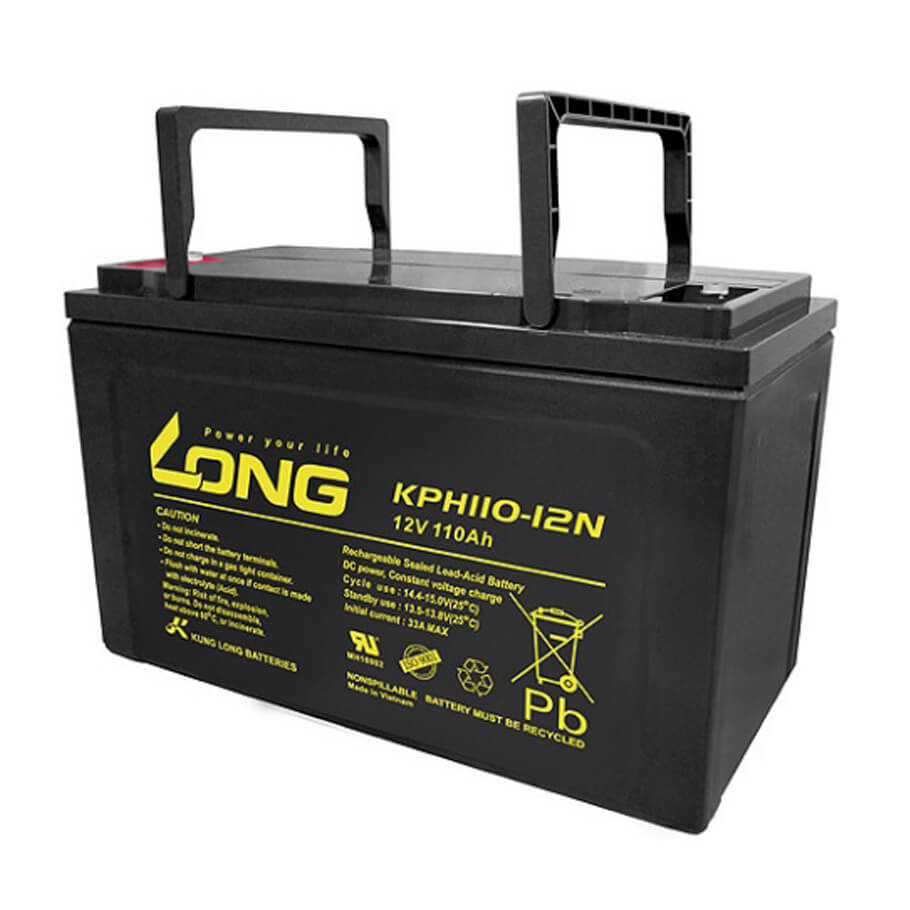

Ắc quy 12V-110Ah Long KPH110-12N
- Dung lượng: 12V-110Ah.
- Kích thước (L x W x H): 388 x 170 x 212 mm.
- Trọng lượng: 31.2kg.
- Ứng dụng: Nguồn dự phòng (Backup Power), nguồn tái sử dụng (Cyclic Power), nguồn tuổi thọ cao (Long life Power), nguồn năng lượng tái tạo (Green Power).
Đặc tính kỹ thuật
| Nominal Voltage(V) | 12V |
| Nominal Capacity | 20 hour rate (5.5A to 10.50V): 110Ah 10 hour rate (11A to 10.80V): 110Ah 5 hour rate (18.7A to 10.20V): 93.5Ah 1 hour rate (66A to 9.60V): 66Ah 1C (110A to 9.60V): 69.67Ah |
| Weight | Approx. 31.2kg(68.6Lbs.) |
| Internal Resistance (at 1KHz) | Approx. 5 mΩ |
| Maximum Discharge Current for | 5 seconds:1200A |
| Charging Methods at 25℃(77℉) | Cycle use: Charging Voltage 14.4 to 15.0V Coefficient -5.0mV/℃/cell |
| Maximum Charging Current: 33A | |
| Standby use: Float Charging Voltage: 13.5 to 13.8V Coefficient -3.0mV/℃/cell |
|
| Operating Temperature Range | Charge: -15℃(5℉) to 40℃(104℉) Discharge: -15℃(5℉) to 50℃(122℉) Storage: -15℃(5℉) to 40℃(104℉) |
| Charge Retention (shelf life) at 20℃(68℉) | 1 month: 98％ 3 month: 94％ 6 month: 85％ |
| Case Material | ABS UL94 HB Option: Flammability resistance of (UL94 V-0) |
| Design Life | 12 Years. |
| Terminal | F8 |
| Dimensions | Length (L): 338 mm Width (W): 170 mm Height (H): 212 mm Overall Height (HT): 217 mm |
- Bảo hành: 12 tháng.
