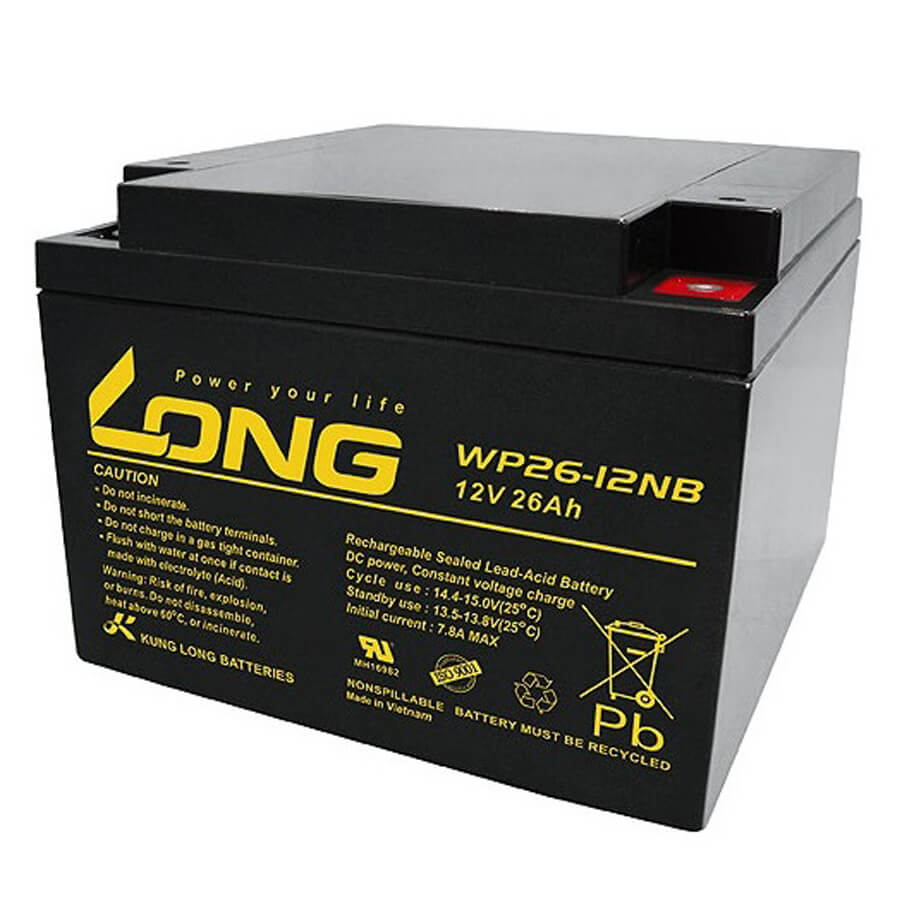

Ắc quy 12V-26Ah Long WP26-12NB
- Dung lượng: 12V/26Ah.
- Kích thước (L x W x H): 166 x 175 x 125 mm.
- Trọng lượng: 5.6kg.
- Ứng dụng: Nguồn dự phòng (Backup Power), nguồn tái sử dụng (Cyclic Power), nguồn công suất cao (High Power), nguồn năng lượng tái tạo (Green Power).
Đặc tính kỹ thuật
| Nominal Voltage (V) | 12V |
| Nominal Capacity | 20 hour rate (1.3A to 10.50V): 26Ah 10 hour rate (2.47A to 10.50V): 24.7Ah 5 hour rate (4.42A to 10.20V): 22.1Ah 1 C (26A to 9.60V): 13.87Ah 3 C (78A to 9.60V): 9.10Ah |
| Internal Resistance (at 1KHz) | Approx. 11 mΩ |
| Maximum Discharge Current for 5 seconds | 390A |
| Charging Methods at 25℃(77℉) | - Cycle use: Charging Voltage 14.4 to 15.0V Coefficient -5.0mV/℃/cell Maximum Charging Current: 7.8A |
| - Standby use: Float Charging Voltage 13.5 to 13.8V Coefficient -3.0mV/℃/cell |
|
| Operating Temperature Range | Charge: -15℃(5℉) to 40℃(104℉) Discharge: -15℃(5℉) to 50℃(122℉) Storage: -15℃(5℉) to 40℃(104℉) |
| Charge Retention (shelf life) at 20℃(68℉) | 1 month: 92％ 3 month: 90％ 6 month: 80％ |
| Case Material | ABS UL94 HB |
| Terminal | F6 |
| Weight | Approx. 8.0kg |
- Bảo hành: 12 tháng.
