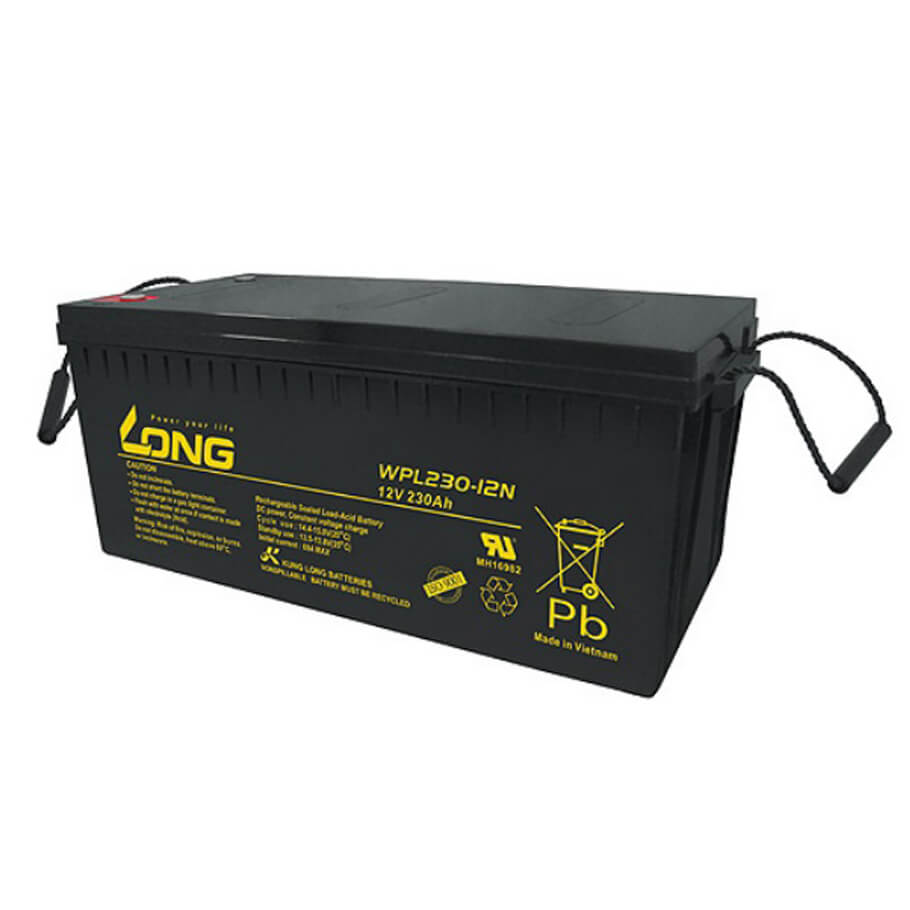

Ắc quy 12V-230Ah Long WPL230-12N
- Dung lượng: 12V-230Ah.
- Kích thước (L x W x H): 522 x 238 x 219 mm.
- Trọng lượng: 73.2kg.
- Ứng dụng: Nguồn dự phòng (Backup Power), nguồn tái sử dụng (Cyclic Power), nguồn tuổi thọ cao (Long life Power), nguồn năng lượng tái tạo (Green Power).
Đặc tính kỹ thuật
| Nominal Voltage(V) | 12V |
| Nominal Capacity | 10 hour rate (23A to 10.80V): 230Ah 5 hour rate (39.1A to 10.20V): 195.5Ah 1 hour rate (138A to 9.60V): 138Ah |
| Weight | Approx. 73.2kg(161Lbs.) |
| Internal Resistance (at 1KHz) | Approx. 2.5 mΩ |
| Maximum Discharge Current for | 5 seconds: 1840A |
| Charging Methods at 25℃(77℉) | Maximum Charging Current: 69A |
| Standby use: Float Charging Voltage 13.5 to 13.8V Coefficient -3.0mV/℃/cell |
|
| Operating Temperature Range | Charge: -15℃(5℉) to 40℃(104℉) Discharge: -15℃(5℉) to 50℃(122℉) Storage: -15℃(5℉) to 40℃(104℉) |
| Charge Retention (shelf life) at 20℃(68℉) | 1 month: 98％ 3 month: 94％ 6 month: 85％ |
| Case Material | ABS UL94 HB Option: Flammability resistance of (UL94 V-0) |
| Design Life & Standard | Expected Trickle Design Life: 10-12 years at 20℃ according to Eurobat. |
| Terminal | F18 |
| Dimensions | Length (L): 522±3 (20.55±0.12) Width (W): 238±3 (9.37±0.12) Height (H): 219±3 (8.62±0.12) Overall Height (HT): 224±3 (8.82±0.12) |
| Width (W) | 238±3 (9.37±0.12) |
- Bảo hành: 24 tháng.
