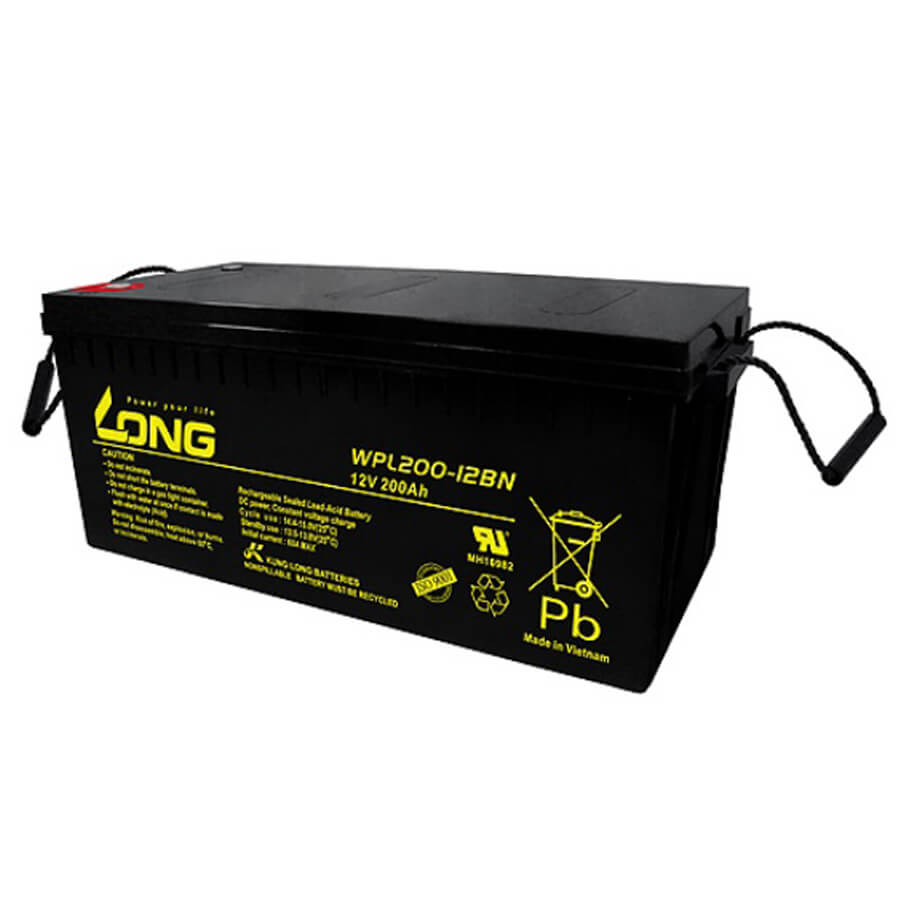

Ắc quy 12V-200Ah Long WPL200-12BN
- Dung lượng: 12V-200Ah.
- Kích thước (L x W x H): 522 x 238 x 219 mm.
- Trọng lượng: 61.5kg.
- Ứng dụng: Nguồn dự phòng (Backup Power), nguồn tái sử dụng (Cyclic Power), nguồn tuổi thọ cao (Long life Power), nguồn năng lượng tái tạo (Green Power).
Đặc tính kỹ thuật
| Nominal Voltage (V) | 12V |
| Nominal Capacity | 10 hour rate (20A to 10.80V): 200Ah 5 hour rate (34A to 10.20V): 170Ah 1 hour rate (120A to 9.60V): 120Ah |
| Weight | Approx. 61.5kg(135Lbs.) |
| Internal Resistance (at 1KHz) | Approx. 3 mΩ |
| Maximum Discharge Current for | 5 seconds: 1600A |
| Charging Methods at 25℃(77℉) | Cycle use: Charging Voltage 14.4 to 15.0V Coefficient -5.0mV/℃/cell |
| Maximum Charging Current: 60A | |
| Standby use: Float Charging Voltage: 13.5 to 13.8V Coefficient -3.0mV/℃/cell |
|
| Operating Temperature Range | Charge: -15℃(5℉) to 40℃(104℉) Discharge: -15℃(5℉) to 50℃(122℉) Storage: -15℃(5℉) to 40℃(104℉) |
| Charge Retention (shelf life) at 20℃(68℉) | 1 month: 98% 3 month: 94% 6 month: 85% |
| Case Material | ABS UL94 HB Option: Flammability resistance of (UL94 V-0) |
| Design Life & Standard | Expected Trickle Design Life: 10-12 years at 20℃ according to Eurobat. |
| Terminal | F18 |
| Dimensions | Length (L): 522±3 (20.55±0.12) Width (W): 238±3 (9.37±0.12) Height (H): 219±3 (8.62±0.12) Overall Height (HT): 224±3 (8.82±0.12) |
- Bảo hành: 24 tháng.
