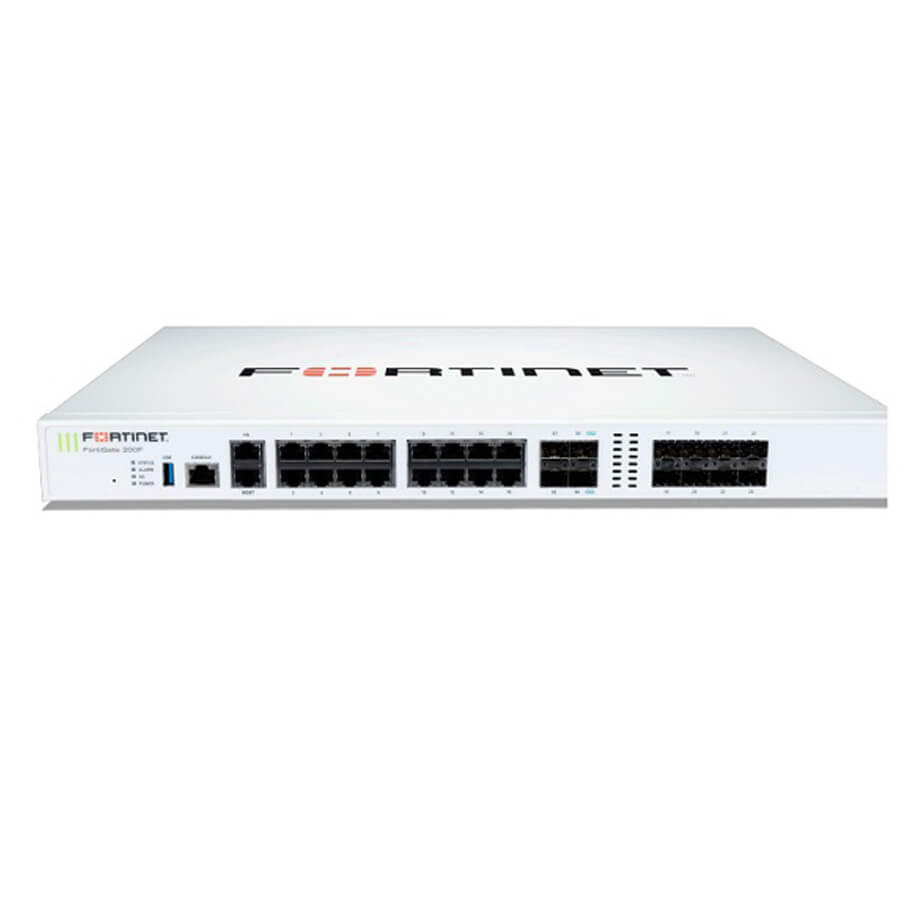

Firewall Fortinet FortiGate 201F (FG-201F-BDL-950-12)
- Support 18 x GE RJ45 (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 4 x 10GE SFP+ slots, NP6XLite and CP9 hardware accelerated, 480GB onboard SSD storage.
- IPS Throughput: 5Gbps.
- NGFW Throughput: 3.5Gbps.
- Threat Protection Throughput: 3Gbps.
- Firewall Latency (64 byte, UDP): 4.78μs
- Firewall Throughput (Packet per Second): 16.5Mpps.
- Form Factor (supports EIA/non-EIA standards): Ear Mount, 1 RU.
- AC Power Supply: 100-240V AC, 50/60 Hz.
- Dimension (H x W x L): 44 x 432 x 342 mm.
Specifications
| Interfaces and Modules | - GE RJ45 Ports: 16 - GE RJ45 Management/HAP: 1/1. - GE SFP Slots: 8 - 10 GE SFP+ FortiLink Slots (default): 2 - 10 GE SFP+ Slots: 2 - USB Port: 1 - Console Port: 1 |
| Onboard Storage | 1x 480 GB SSD |
| Trusted Platform Module (TPM) | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| System Performance-Enterprise Traffic Mix | IPS Throughput: 5 Gbps |
| NGFW Throughput: 3.5 Gbps | |
| Threat Protection Throughput: 3 Gbps | |
| System Performance and Capacity | - IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 27 / 27 / 11 Gbps - Firewall Latency (64 byte, UDP): 4.78 μs - Firewall Throughput (Packet per Second): 16.5 Mpps - Concurrent Sessions (TCP): 3 Million - New Sessions/Second (TCP): 280000 - Firewall Policies: 10000 - IPsec VPN Throughput (512 byte): 13Gbps - Gateway-to-Gateway IPsec VPN Tunnels: 2000 - Client-to-Gateway IPsec VPN Tunnels: 16 000 - SSL-VPN Throughput: 2Gbps - Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 500 - SSL Inspection Throughput (IPS, avg. HTTPS): 4 Gbps - SSL Inspection CPS (IPS, avg. HTTPS): 3500 - SSL Inspection Concurrent Session (IPS, avg. HTTPS): 300000 - Application Control Throughput (HTTP 64K): 13 Gbps - CAPWAP Throughput (HTTP 64K): 20 Gbps - Virtual Domains (Default/Maximum): 10/10 - Maximum Number of FortiSwitches Supported: 64 - Maximum Number of FortiAPs (Total / Tunnel): 256 / 128 - Maximum Number of FortiTokens: 5000 - High Availability Configurations: Active-Active, Active-Passive, Clustering |
| Dimensions and Power | - Height x Width x Length (mm): 44 x 432 x 342 - Weight: 4.6 kg - Form Factor (supports EIA/non-EIA standards): Ear Mount, 1 RU - AC Power Supply: 100–240V AC, 50/60 Hz - Power Consumption (Average / Maximum): 104.52 W / 121.94 W - Current (Maximum): 100V / 2A, 240V / 1.2A - Heat Dissipation: 436.98 BTU/h - Redundant Power Supplies: Yes (Default dual non-swappable AC PSU for 1+1 Redundancy) - Power Supply Efficiency Rating: 80Plus Compliant |
| Operating Environment and Certifications | - Operating Temperature: 32°–104°F (0°–40°C) - Storage Temperature: -31°–158°F (-35°–70°C) - Humidity: 20%–90% non-condensing - Noise Level: 49.9 dBA - Forced Airflow: Side to Back - Operating Altitude: Up to 10 000 ft (3048 m) - Compliance: FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI - Certification: USGv6/IPv6 |
- Bảo hành: 12 tháng.
