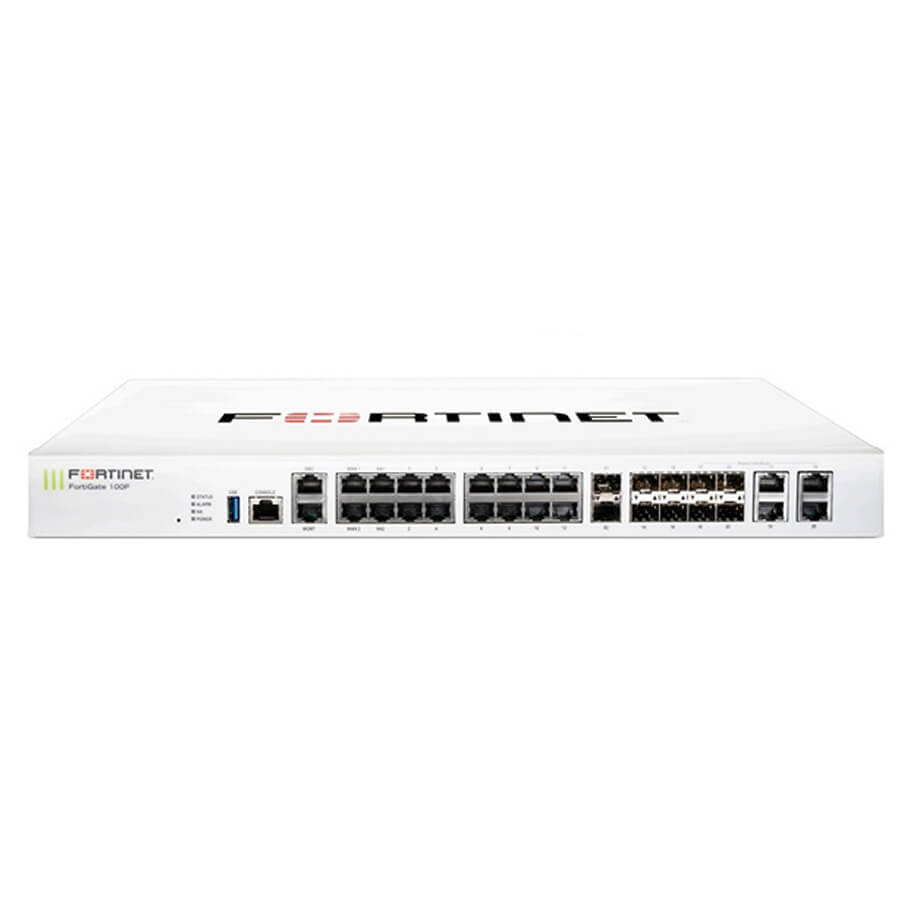

22 x GE RJ45 ports Firewall FORTINET FG-100F-BDL-950-12
- 22 cổng GE RJ45 (bao gồm 2 cổng WAN, 1 cổng DMZ, 1 cổng quản lý, 2 cổng HA, 16 cổng chuyển mạch với 4 cổng SFP chia sẻ).
- 4 cổng SFP, 2 cổng 10G SFP+ FortiLinks, dự phòng nguồn cấp đôi.
- Số lượng FortiAP quản lý tối đa (Tổng cộng / Đường hầm): 128 / 64.
- Hỗ trợ VPN.
- Bao gồm phần cứng và dịch vụ FortiCare 24/7 cùng FortiGuard Unified (UTM).
Đặc tính kỹ thuật
| Model | FG-100F-BDL-950-12 |
| Firewall | 20 Gbps |
| IPS | 2.6 Gbps |
| NGFW | 1.6 Gbps |
| Threat Protection | 1 Gbps |
| Interfaces | 1 USB Port, 1 Console Port, 2x GE RJ45 MGMT/DMZ Ports, 2x GE RJ45 WAN Ports, 2x GE RJ45 HA Ports, 12x GE RJ45 Ports, 2x 10 GE SFP+ FortiLink Slots, 4x GE SFP Slots, 4x GE RJ45/SFP Shared Media Pairs |
| Interfaces and Modules | |
| GE RJ45 Ports | 12 |
| GE RJ45 Management/HA/DMZ Ports | 1/2/1 |
| GE SFP Slots | 4 |
| 10 GE SFP+ Slots | 2 |
| GE RJ45 WAN Ports | 2 |
| GE RJ45 or SFP Shared Ports | 4 |
| USB Port | 1 |
| Console Port | 1 |
| Internal Storage | |
| Included Transceivers | 0 |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 2.6 Gbs |
| NGFW Throughput | 1.6 Mbps |
| Threat Protection Throughput | 1 Gbps |
| System Performance and Capacity | |
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 20 / 18 / 10 Gbps |
| Firewall Latency (64 byte, UDP) | 5 μs |
| Firewall Throughput (Packet per Second) | 15 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 56 |
| Firewall Policies | 10 |
| IPsec VPN Throughput (512 byte) | 11.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,5 |
| Client-to-Gateway IPsec VPN Tunnels | 16 |
| SSL-VPN Throughput | 1 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 1 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 1800 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 135 |
| Application Control Throughput (HTTP 64K) | 2,2 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 15 Gbps |
| Virtual Domains (Default / Maximum) | 10/10 |
| Maximum Number of FortiSwitches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel) | 128 / 64 |
| Maximum Number of FortiTokens | 5 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Dimensions and Environment | |
| Height x Width x Length | 1.75 x 17.0 x 10.0 inches |
| 44.45 x 432 x 254 mm | |
| Form Factor | Rack Mount, 1 RU |
| Power Required | 100–240V AC, 60–50 Hz |
| Maximum Current | 100V / 0.52A, 240V / 0.22A |
| Power Consumption (Average / Maximum) | 35.1 W / 38.7 W |
| Heat Dissipation | 119.77 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 40.4 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, |
| CB, BSMI | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN;IPv6 |
- Bảo hành: 12 tháng.
