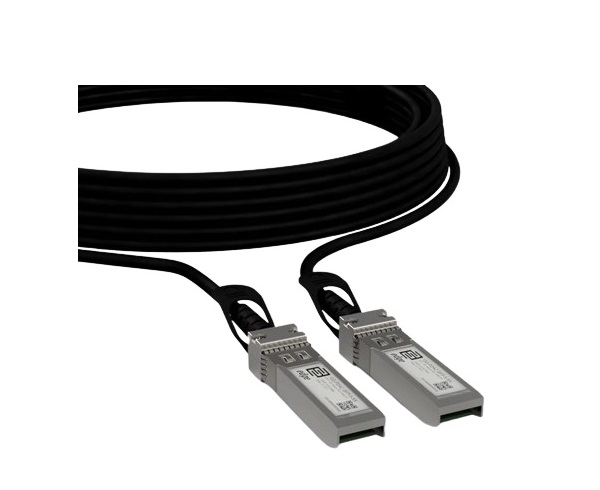

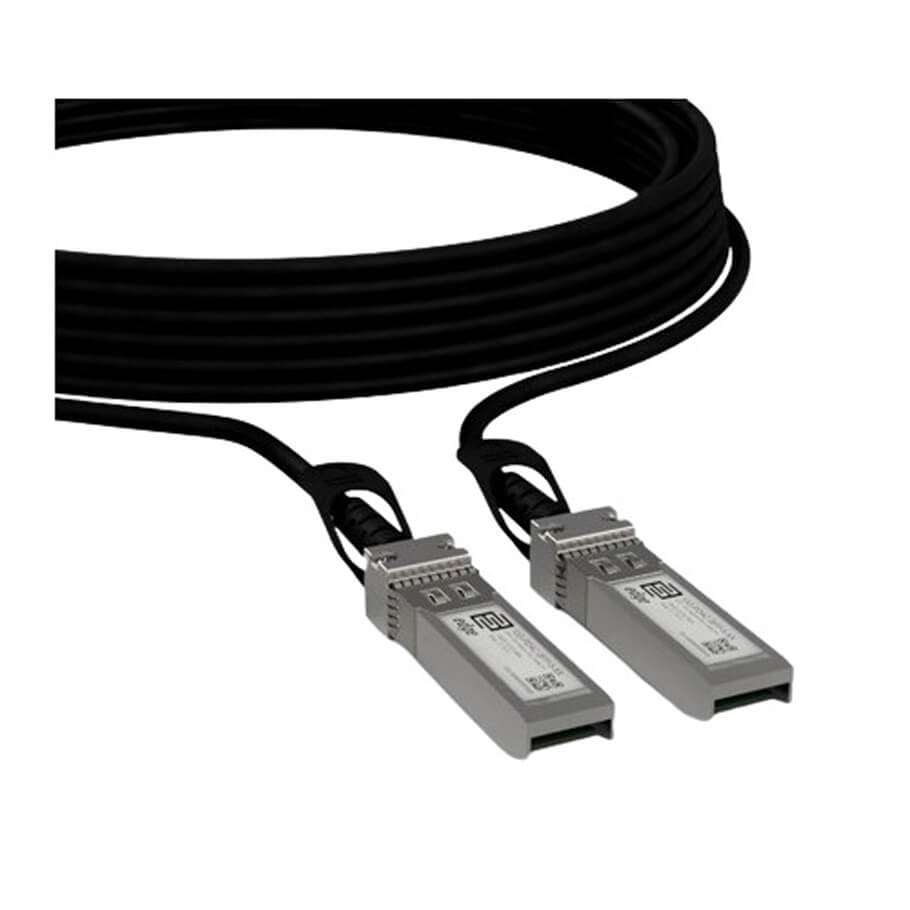

10GE SFP+ Passive Direct Attach Cable FORTINET SP-CABLE-FS-SFP+3
- Type: 10G Passive Twinax Cable
- Compatibility: Fortinet compatible
- Media Type: Passive Twinax Cable
- Lenght: 3m
- Data Rate: 1.0625-10.52 Gbps
- Temperature: Standard 0°-70°C
- Low Power Consumption: 0.5W (Typical)
Thông số kỹ thuật
| Media Type | Twinax Cable |
| DAC Copper Type | AWG30 |
| Maximum Distance | 3m |
| Supported Data Rate | 1.0625-10.52 Gbps |
| Supported Applications | CPRI option 3 (2.458 Gbp, 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), CPRI option 2 (1228.8 Mbps) |
| DDM/DOM | Supported |
| Temperature Range | Standard 0°-70°C |
| Connectors | SFP+ |
| Power | +3.3V single power supply |
| Power Consumption | 0.5W |
| MTBF | 1,000,000 Hours |
| Compliance | CE, RoHS, SFF-8431, SFP+ MSA |
| Transceiver Type | DAC |
- Bảo hành: 12 tháng.
