0916 287 068 Fortinet FortiGate Switch FS-424E-FIBER
Trang Chủ >>
Thiết bị mạng >> Thiết bị mạng FORTINET >> Fortinet FortiGate Switch FS-424E-FIBER
Mã số:04753845

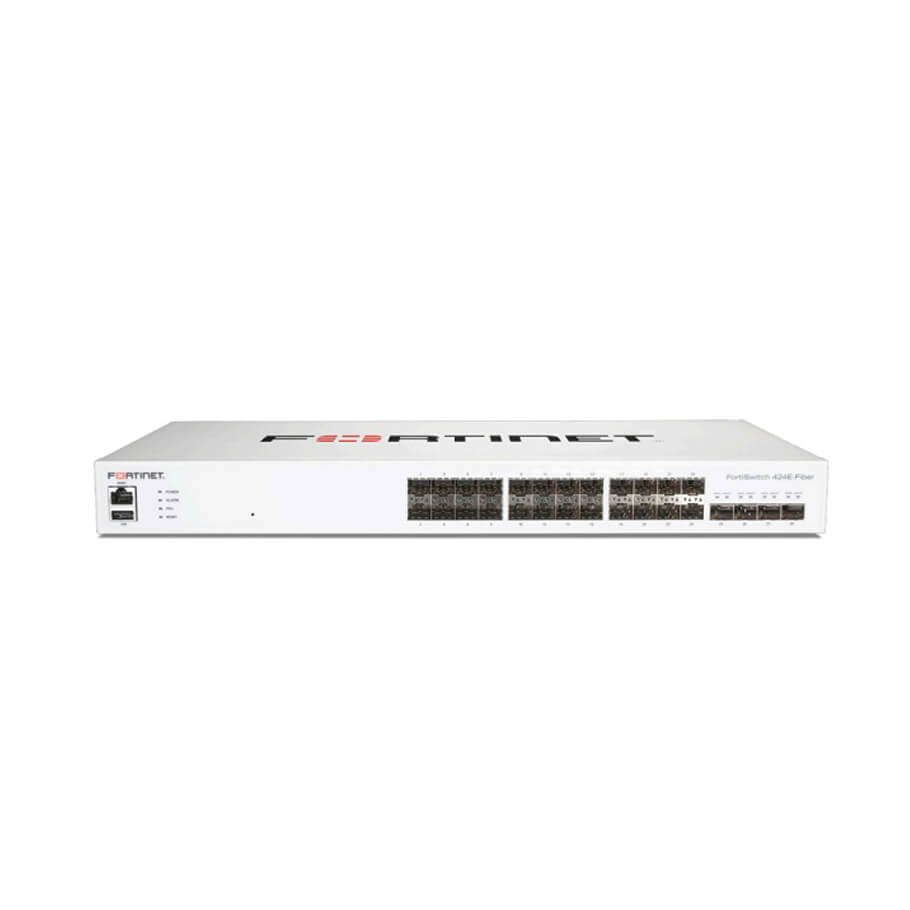

Fortinet FortiGate Switch FS-424E-FIBER
- Layer 2/3 FortiGate switch controller compatible switch with 24xGE SFP and 4x 10GE SFP+ Uplinks.
- Switching Capacity (Duplex): 128Gbps
- Packets Per Second (Duplex): 204Mpps.
- MAC Address Storage: 32K.
- Memory: 1GB DDR4.
- Flash: 256MB.
- Power Required: 100–240V AC, 50/60 Hz.
- Operating Temperature: 32°–122°F (0°–50°C).
- Dimensions (Height x Depth x Width): 44 x 200 x 440 mm.
- Weight: 2.55kg.
Specifications
| Hardware Specifications | |
| Total Network Interfaces | 24x GE SFP and 4x 10GE SFP+ ports Note: SFP+ ports are compatible with 1 GE SFP |
| Dedicated Management 10/100 Port | 1 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| Mean Time Between Failures | > 10 years |
| System Specifications | |
| Switching Capacity (Duplex) | 128 Gbps |
| Packets Per Second (Duplex) | 204 Mpps |
| MAC Address Storage | 32K |
| Network Latency | < 1µs |
| VLANs Supported | 4 K |
| Link Aggregation Group Size | 8 |
| Total Link Aggregation Groups | Up to number of ports |
| Packet Buffers | 4 MB |
| Memory | 1 GB DDR4 |
| Flash | 256 MB |
| ACL | 1.5k |
| Spanning Tree Instances | 16 |
| Route Entries (IPv4) | 16k |
| Host Entries | 16k |
| Dimensions | |
| Height x Depth x Width (mm) | 44 x 200 x 440 |
| Weight | 2.55 kg |
| Environment | |
| Power Required | 100–240V AC, 50/60 Hz |
| Power Supply | AC built in |
| Redundant Power | Redundant AC |
| Power Consumption* (Average/ Maximum) | 36 W / 38 W |
| Heat Dissipation | 132.5 BTU/h |
| Operating Temperature | 32°–122°F (0°–50°C) |
| Storage Temperature | -4°–158°F (-20°–70°C) |
| Humidity | 5%–95% non-condensing |
| Air-Flow Direction | Side-to-back |
| Noise Level | 32.8 dBA |
| Certification and Compliance | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
- Bảo hành: 12 tháng.
Giá: Vui lòng gọi
