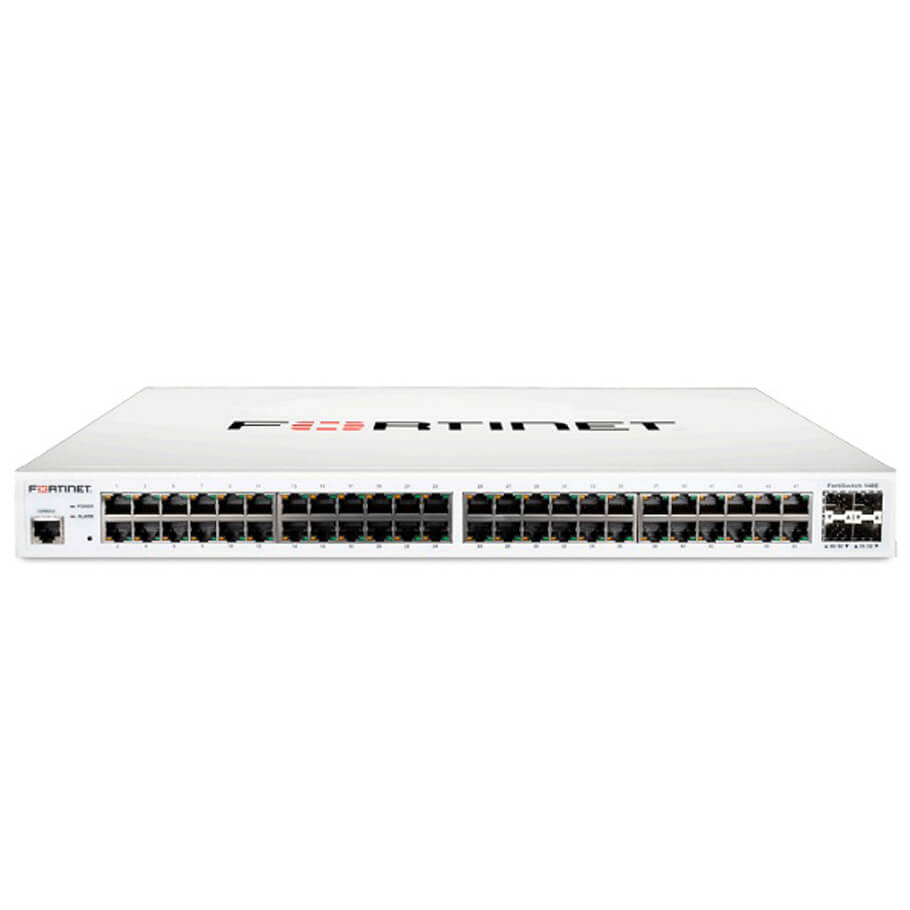

Fortinet FortiGate Switch FS-148E
- Layer 2 FortiGate switch controller compatible switch with 48 GE RJ45 + 4 SFP ports.
- Switching Capacity (Duplex): 104Gbps
- Packets Per Second (Duplex): 155Mpps.
- MAC Address Storage: 16K.
- Memory: 256MB DDR3.
- Flash: 64MB.
- Power Required: 100–240V AC, 50/60 Hz.
- Operating Temperature: 32°–113°F (0°–45°C).
- Dimensions (Height x Depth x Width): 44 x 309 x 440 mm.
- Weight: 3.9kg.
Specifications
| Hardware Specifications | |
| Total Network Interfaces | 48x GE RJ45 and 4x GE SFP |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| Mean Time Between Failures | > 10 years |
| System Specifications | |
| Switching Capacity (Duplex) | 104 Gbps |
| Packets Per Second (Duplex) | 155 Mpps |
| MAC Address Storage | 16 K |
| Network Latency | 3860 ns |
| VLANs Supported | 4 K |
| Link Aggregation Group Size | 8 |
| Total Link Aggregation Groups | 16 |
| Packet Buffers | 1.5 MB |
| Memory | 256 MB DDR3 |
| Flash | 64 MB |
| ACL | 640 |
| Spanning Tree Instances | 16 |
| Dimensions | |
| Height x Depth x Width (mm) | 44 x 309 x 440 |
| Weight | 3.9 kg |
| Environment | |
| Power Required | 100–240V AC, 50/60 Hz |
| Power Supply | AC Built in |
| Power Consumption* (Average / Maximum) | 19.804 W / 22.137 W |
| Heat Dissipation | 67.574 BTU/h |
| Operating Temperature | 32°-113°F (0°–45°C) |
| Storage Temperature | -4°–158°F (-20°–70°C) |
| Humidity | 10%–90% non-condensing |
| Air-Flow Direction | side-to-back |
| Noise Level | 36.9 dBA |
| Certification and Compliance | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
- Bảo hành: 12 tháng.
