Photoelectric Beam Sensor TAKEX PXB-100ATC-KH(E)

Trang Chủ >> Báo cháy-Báo trộm >> Báo động TAKEX >> Photoelectric Beam Sensor TAKEX PXB-100ATC-KH(E)
Mã số:13307611

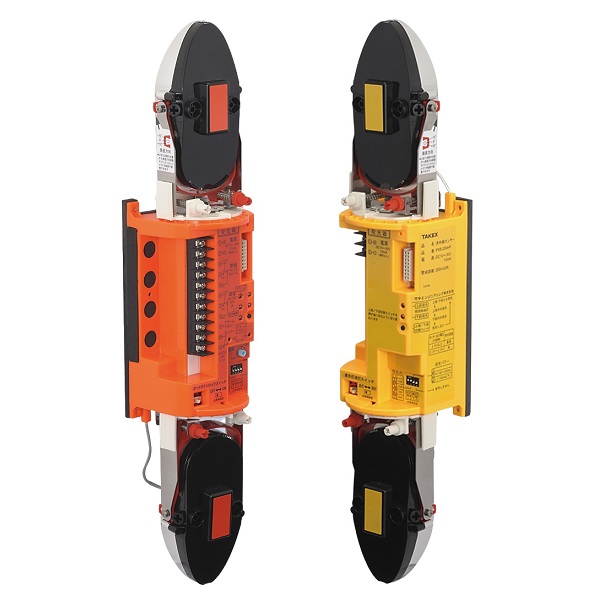

Photoelectric Beam Sensor TAKEX PXB-100ATC-KH(E)

Photoelectric Beam Sensor TAKEX PXB-100ATC-KH(E)

- Anti-Crawl Detection: Upper and lower beam individually detects the objects and issues a signal only by blocking each beam.

- AT/HF Separate Output

   + AT output: OR-gated by upper and lower beam.

   + HF output: AND-gated.

- Synchronized High Power Beam: By synchronizing the timing of transmitting and receiving beam, the stacking system will be more reliable.

- Double Modulation

   + Double modulated beams are designed to distinguish the true beam signal from accidental or deliberate interference from sunlight, car headlights and other artificial light sources.

   + This increases the reliability in the outdoor security system.

- Quad High Power Beam

   + The beam power is 100 times of the minimum requirement.

   + The beam distance is 10 times of the described specification.

   + This high power beam also realizes the reliability against the harsh conditions like fog, snow, heavy rain.

- Ecology: RoHS adapted - Environment friendly. Free from Lead, Mercury, Cadmium, Hexavalent chromium, Polybrominated biphenyl, Polybrominated diphenyl ether.

- Dual Ring Sight: Enables better and clear view for easy beam alignment.

- Target Color

   + The vivid color of the internal structure can be recognized easily from the far end in the beam alignment procedure.

   + The color differs between a transmitter and a receiver which helps easy installation and checking.

- Increased Range Adjustment Allowance: Vertically ±20°compared with previous version. It may adapt to the slope installation flexibly.

- Wireless Alignment Checker: Enables easy and accurate beam alignment. (Sold separately).

- Lightning Protection

   + Minimizes the damage caused by induced lightning through wiring.

   + Rated up to 10,000V under normal mode and 15,000V under common mode.

Specification

Model PXB-100ATC-KH
Detection system Near infrared pulsed beam interruption system
(Anti-crawling, Anti-corrosion)
Infrared beam Double modulation pulsed beam by LED
Protection distance Outdoor 330' (100m) or less
Response time AT output : 0.05sec by upper/lower level simultaneous interruption 0.1/0.2/0.3/0.5sec by either level interruption
HF output: 0.05sec by upper/lower level simultaneous interruption
Power supply 12 to 30V DC (Non-polarity)
Current consumption Transmitter: 27mA
Receiver: 48mA
Alarm output Dry contact relay output N.O./N.C. selectable
Contact action: Interruption time (Min.2sec.)
Contact capacity: 30V (AC/DC) 0.25A (resistive load)
Protective resistor
Environmental output Dry contact relay output N.O./N.C. selectable
Action: Activated when weather condition gets worse (Min.5sec.)
Contact capacity: 30V (AC/DC) 0.25A (resistive load)
Protective resistor
Alarm LED Red LED (Receiver)
ON: when an alarm is initiated
Attenuation LED Red LED (Receiver)
ON : when beam is attenuated
Ambient temperature range -31°F to +151°F (-35°C to +66°C)
Beam adjustment Horizontal: ±90°, Vertical: ±20°
Functions Modulated beam frequency selection,Tone indicator, Environmental module, Beam power selection,Transmitting power adjutment, Programmed AGC, Auto-gain lock function, Monitor Jack, Tamper, Response time adjustment, Upper/lower beam switch Wireless checker, LED light turn-off function
Mounting positions Inside the housing
Wiring Terminals
Weight Transmitter: 12.6oz (360g)
Receiver: 15.8oz (450g)

- Bảo hành: 12 tháng.

Giá: 10.322.000 VND (Đã bao gồm VAT)
