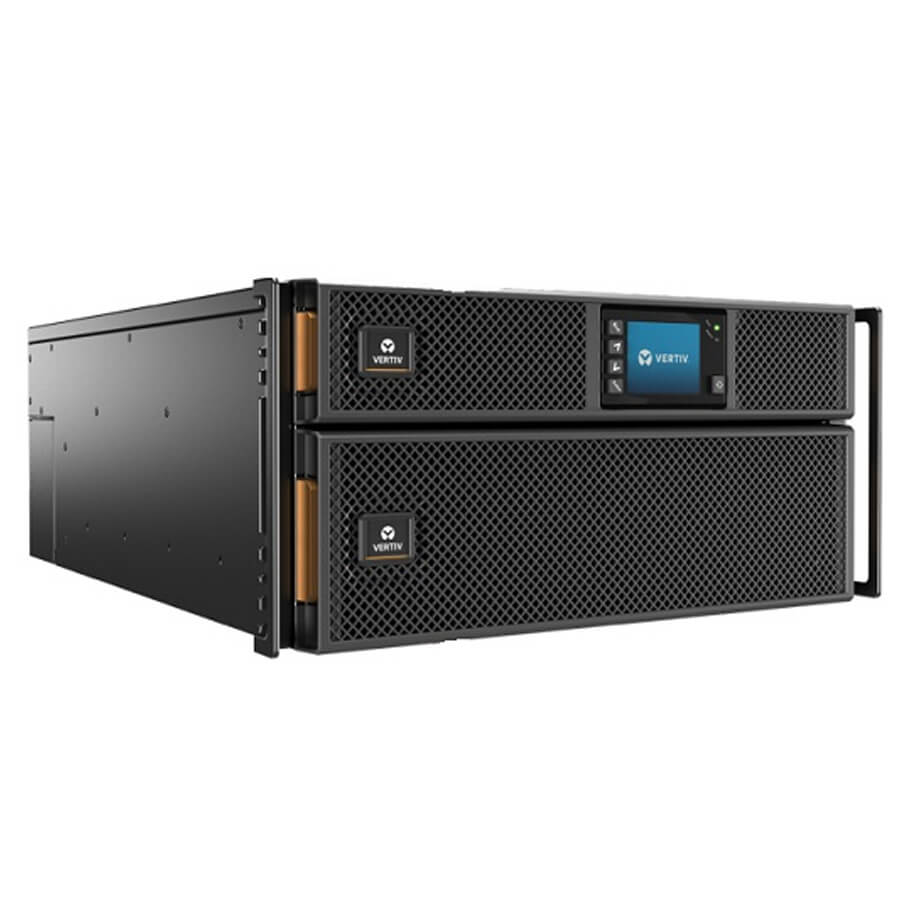

Nguồn lưu điện UPS VERTIV GXT5-8000IRT5UXLN (01201979)
- Liebert GXT5 On-Line 8000VA/8000W 230V LCD PF1.0 5U Extended Run Rack/Tower, RDU101 webcard and Rail Kit Bundled.
- Công nghệ: On-line Double Conversion.
- Điện áp đầu vào: 230VAC.
- Tần số nguồn vào: 40Hz-70Hz.
- Điện áp đầu ra: 200/208/220/230/240 VAC.
- Kích thước: 430 × 630 × 217 cm.
- Trọng lượng: 74.5kg.
Đặc tính kỹ thuật
| Ratings (VA/W ) | 8000VA/ 8000W |
| Dimensions and Weight | |
| Dimensions (W×D×H) | 430 × 630 × 217 mm |
| Unit Weight | 74.5kg |
| Input AC Parameters | |
| Operating Frequency, Nom | 50 or 60 Hz (Factory default is 50 Hz ) |
| Factory Default Voltage | 230 VAC |
| Operating Voltage Range Without Battery Operation | 176 to 288 VAC (100 to 176 VAC with power derating) |
| Maximum Allowable Voltage | 288 VAC |
| Input Frequency Without Battery Operation | 40 to 70 Hz |
| Output AC Parameters | |
| AC-AC Efficiency | 94.5% |
| User-configurable Voltage | 200/208/220/230/240 VAC |
| Factory Default Voltage | 230 VAC |
| Frequency | 50 Hz or 60 Hz, Nominal |
| Waveform | Pure Sinewave |
| Output Power Connection | Output terminal block |
| Main Mode Overload | >150% minimum 200 ms, 125 – 150% for 60 seconds; 105 – 125% for 5 minutes; ≤ 105% continuous |
| Internal Battery | |
| Charger Current | 2.25 A (default), maximum 8 A |
| Type | Valve-regulated, non-spillable, lead acid |
| Qty x V x Rating | 2 x 8 x 12V x 9.0 AH |
| Back-up Time at Full Load | 3,5 |
| Back-up Time at Half Load | 9,5 |
| Bypass Protection Limits | |
| Upper-limit Selections | + 10%, + 15%, + 20%; default + 10% |
| Lower-limit Selections | - 10%, - 15%, - 20%; default - 15% |
| Disable-bypass Operation | When the input frequency prevents synchronous operation |
| General | |
| Operating Temperature, °C | Full power up to 40 ºC (up to 50 ºC with derating) |
| Storage Temperature, °C | - 15 to + 40 |
| Relative Humidity | 0 – 95% non-condensing |
| Operating Elevation | Up to 3,000 m (9,842.5 ft) at 25°C (77°F) without derating |
| Audible Noise | <55 dBA |
| Safety | UL-1788 (Fifth Edition),C-UL listed, IEC 62040-1: 2017 Edition 2.0, EN 62040-1:2008+A1:2013 |
| EMI/EMC/C-Tick EMC | IEC/EN/AS 62040-2 2nd Ed (Cat 2 – Table 6); FCC Part 15 (Class A) CISPR22 Class A (RFI) |
| ESD | IEC/EN EN61000-4-2, Level 4, Criteria B |
| Radiated Susceptibility | IEC/EN EN61000-4-3, Level 3, Criteria A |
| Electrical Fast Transient | IEC/EN EN61000-4-4, Level 4, Criteria B |
| Surge Immunity | IEC/EN EN61000-4-5, Level 4, Criteria A; ANSI C62.41 Category B |
| Transportation | ISTA Procedure 1E |
- Xuất xứ: Trung Quốc.
- Bảo hành: 3 năm.
