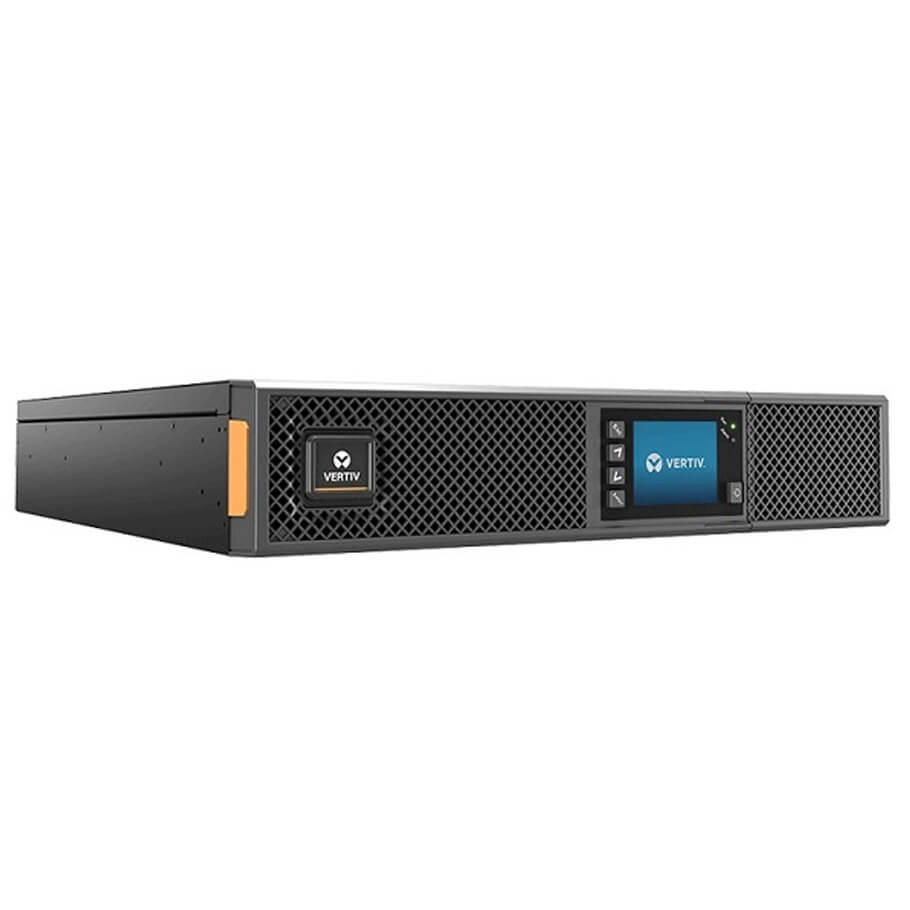

Nguồn lưu điện UPS VERTIV GXT5-1000IRT2UXL (01202008)
- Liebert GXT5 On-Line 1000VA/1000W 230V LCD PF1.0 2U Extended Run Rack/Tower, Rail Kit Bundled.
- Công nghệ: On-line Double Conversion.
- Điện áp đầu vào: 230VAC.
- Tần số nguồn vào: 40Hz-70Hz.
- Điện áp đầu ra: 200/208/220/230/240 VAC.
- Kích thước: 400 × 430 × 85 cm.
- Trọng lượng: 16.5kg.
Đặc tính kỹ thuật
| Ratings (VA/W) | 1000VA/1000W |
| Dimensions and Weight | |
| Dimensions (D × W × H) | 400 × 430 × 85 mm |
| Weight | 16.5kg |
| Input | |
| Rated Volatge | 230 VAC |
| Rated Frequency | 50 Hz / 60 Hz |
| Frequency Range | 40 to 70 Hz |
| Power Factor | ≥0.99 |
| Input Power Cord | C14 |
| Output | |
| Nominal Voltage | 200/208/220/230/240 VAC |
| Waveform | Sine wave |
| Inverter Overload Capability | >200% minimum 250 ms, 150 to 200% for 2 seconds; 125 to 150% for 50 seconds; 105 to 125% for 60 seconds |
| Efficiency in Online Mode | Up to 93% |
| Active Eco Mode | Up to 98% |
| Output Receptacles | (8) EN60320/C13 |
| Internal Battery | |
| Rated Voltage | 36 Vdc |
| Charger Current | Nominal 2.2 A; Maximum 8 A |
| Type | Valve-regulated, non-spillable, lead acid |
| Qty x V x Rating | 3 x 12 V x 9.0 Ah |
| End Cell Voltage | 1.67 V/cell (discharge voltage per cell will be from 1.67 Vdc to 1.90 Vdc, canbe selected by PARAMSET) |
| Floating Voltage | Equalize charge: 2.35 V/cell; Float charge: 2.27 V/cell |
| Battery Voltage Range | 30 Vdc to 42.3 Vdc |
| General | |
| Operating Temperature, °C | Full power up to 40 ºC (up to 50 ºC with derating) |
| Storage Temperature, °C | -20 to 60 ( contain batteries will be from -15 to 40 °C.) |
| Relative Humidity | 0 to 95% non-condensing |
| Operating Elevation | Up to 3,000 m at 25°C without derating |
| Audible Noise | |
| Safety | UL-1778 (Fifth Edition), C-UL listed, IEC 62040-1: 2008 (First Edition) + Am 1:2013, EN 62040-1:2008+A1:2013 |
| RFI/EMI | CISPR22 Class A (RFI)/ FCC Part 15 (Class A) |
| Transportation | ISTA Procedure 1A |
| Surge Immunity | ANSI C62.41 Category B |
- Xuất xứ: Trung Quốc.
- Bảo hành: 3 năm.
