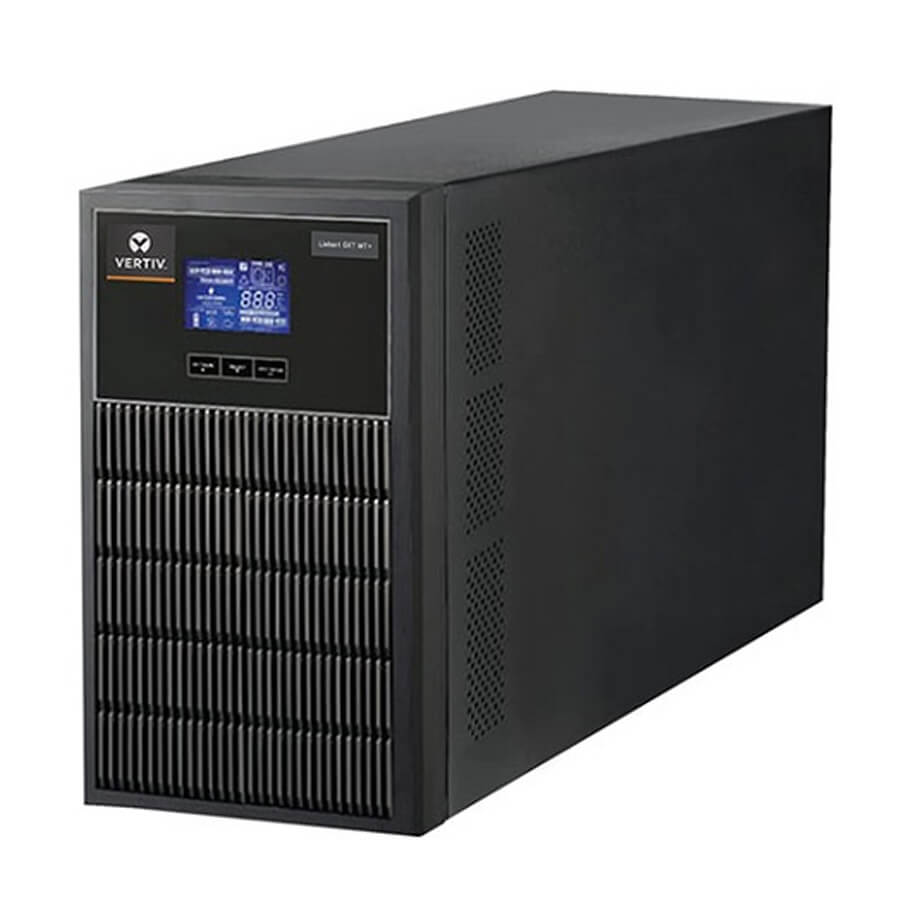

Nguồn lưu điện UPS VERTIV GXT-3000MTPLUSC230
- Liebert GXT-MTPLUS CX On-Line 3000VA/2700W 230V LCD Tower.
- Công suất: 3000VA/2700W.
- Công nghệ: On-line Double Conversion.
- Hệ số công suất: 0.9.
- Điện áp vào: 160-290VAC±5%.
- Tần số nguồn vào: 40Hz-70Hz.
- Điện áp ra: 208/220/230/240 VAC.
- Tần số nguồn ra: 47 ~ 53 Hz or 57 ~ 63 Hz (Synchronized Range).
- Kích thước: 421 × 190 × 318 cm.
- Trọng lượng: 27.6kg.
Đặc tính kỹ thuật
| Capacity | 3000VA/2700W |
| Input | |
| Low Line Transfer | 180VAC/160VAC/140VAC/120VAC±5% (Ambient Temp.<35°C) ( based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0) |
| Voltage Range | Low Line Comeback: 195VAC/175VAC/155VAC/135VAC ± 5 % (Ambient Temp.<35°C) (based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60% - 0) |
| High Line Transfer: 300 VAC ± 5% High Line Comeback: 290 VAC ± 5% |
|
| Frequency Range | 40Hz ~ 70 Hz |
| Phase | Single phase with ground |
| Power Factor | ≥0.99 @ nominal voltage (input voltage) |
| Output | |
| Output Voltage | 208/220/230/240VAC |
| Output Power Factor | 0.9 |
| AC Voltage Regulation | ±1% (Battery Mode) |
| Frequency Range | 47 ~ 53 Hz or 57 ~ 63 Hz (Synchronized Range) |
| Frequency Range (Battery Mode) | 50 Hz ± 0.5% or 60Hz ±0.5% |
| Overload | Ambient Temp.<35°C 105%~110%: UPS shuts down after 10 minutes at battery mode or transfer to bypass when the utility is normal 110%~130%: UPS shuts down after 1 minute at battery mode or transfer to bypass when the utility is normal >130%:UPS shuts down after 3 seconds at battery mode or transfer to bypass when the utility is normal |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | ≤ 3 % THD (linear load); ≤ 6 % THD (non-linear load) |
| Transfer Time | - AC Mode to Batt. Mode: Zero - Inverter to Bypass: 4ms (Typical) |
| Waveform (Battery Mode) | Pure Sinewave |
| Efficiency | |
| AC Mode | 90% |
| Battery Mode | 88% |
| Battery | |
| Battery Type | 12 V / 9 AH |
| Battery Numbers | 6 |
| Recharge Time | 4 hours recover to 90% capacity (Typical) |
| Charging Current | 1.0 A (max.) |
| Charging Voltage | 82.1 VDC ± 1% |
| Physical | |
| Dimension, D × W × H | 421 × 190 × 318 mm |
| Net Weight | 27.6kg |
| Management | |
| Smart RS-232 or USB | Supports Windows® 2000/2003/XP/Vista/2008/7, Linux, Unix and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
| Agency | |
| Compliance | CE, RoHS, WEEE |
- Xuất xứ: Trung Quốc.
- Bảo hành: 2 năm.
