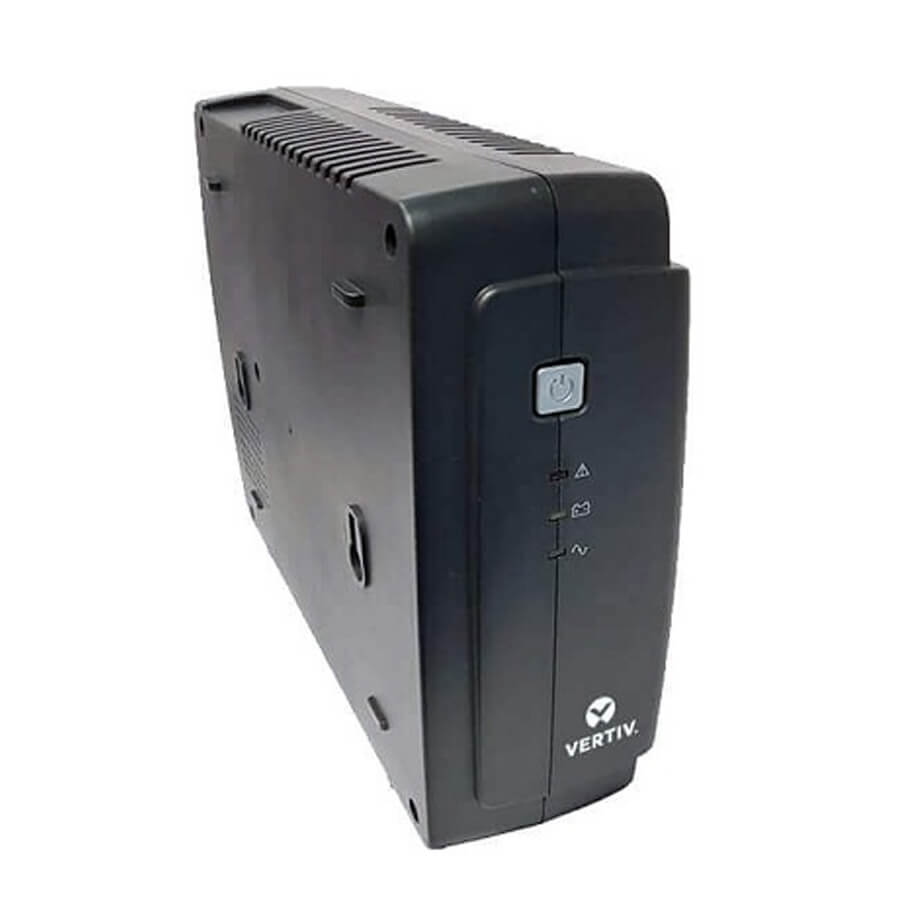

Nguồn lưu điện UPS VERTIV PSA1000-SOHO (01202771)
- Capacity: 1000VA/600W.
- Input voltage range: 162 – 290VAC, single-phase.
- Input frequency range: 50Hz/60Hz automatic identification.
- Transfer time: Typical 2–6 ms, 10ms max.
Features
- Universal Sockets.
- USB Port Mobile Charger.
- Built-in Boost and Buck AVR.
- Space for large power plugs.
- Fuse Protection.
- Microprocessor control guarantees high system reliability.
- Provides AC overload protection.
- Auto restart when AC source recovers.
- Compact size, lightweight.
- Fast charging.
- OFF mode charging.
- Cold start function.
- Overload protection and alarm.
- Surge protector against transient voltages.
Key Advantages
- AVR features gives higher protection level by correcting high and low voltage without using valuable battery power.
- Universal sockets ensures hassle-free connection of virtually any equipment input plug types.
- Standard USB mobile charger allows for fast and safe charging or powering any electronic peripherals like routers, modems, wireless storage devices and etc...
Specifications
| Model Number | PSA1000-SOHO |
| Capacity (VA/W) | 1000VA/600W |
| Input | |
| Voltage range | 162 – 290VAC, single-phase |
| Frequency range | 50Hz/60Hz automatic identification |
| Output | |
| Voltage tolerance (Batt. Mode) | Simulated sine wave at nominal voltage ±10% |
| Frequency range (Batt. Mode) | 50Hz/60Hz automatic identification |
| Transfer time | Typical 2–6 ms, 10ms max. |
| Battery | |
| Battery type & Number | 12V/9AH × 1 |
| Typical recharge time | 6-8 hours recover to 90% capacity (About 1A charging current at Normal Mode) |
| Configuration | Battery: 1×2.7kg, 9Ah Sockets: 6×Universal USB Charger: *0 |
| Runtime | |
| Load% | 25%: 18 min 50%: 4m |
| System Features | |
| Indicators | AC Mode: Solid green led lighting; Battery Mode: Solid yellow led flash; Fault Solid: Red led lighting |
| Protection | Discharge, Overload and overcharge protection |
| Alarm | 1.) Battery Mode: Sounding every 10 seconds; 2.) Low battery: Sounding every 1 second; 3.) Overload: Sounding every 0.5 second; 4.) Fault: Continuously sounding |
| Operating temperature | 0 ~ 40°C |
| Humidity range | 0 ~ 95% (non-condensing) |
| Noise level | Less than 40dB (1 meter from surface) |
| Fuse Protection | Yes |
| USB Charging slot | No |
| Physical | |
| Dimension D × W × H (mm) | 87 × 346 × 208 |
| Weight (kg) | 6.0 kg |
- Xuất xứ: Trung Quốc.
- Bảo hành: 2 năm.
