0916 287 068 Digital Time Switches THEBEN SUL 181 d 24V

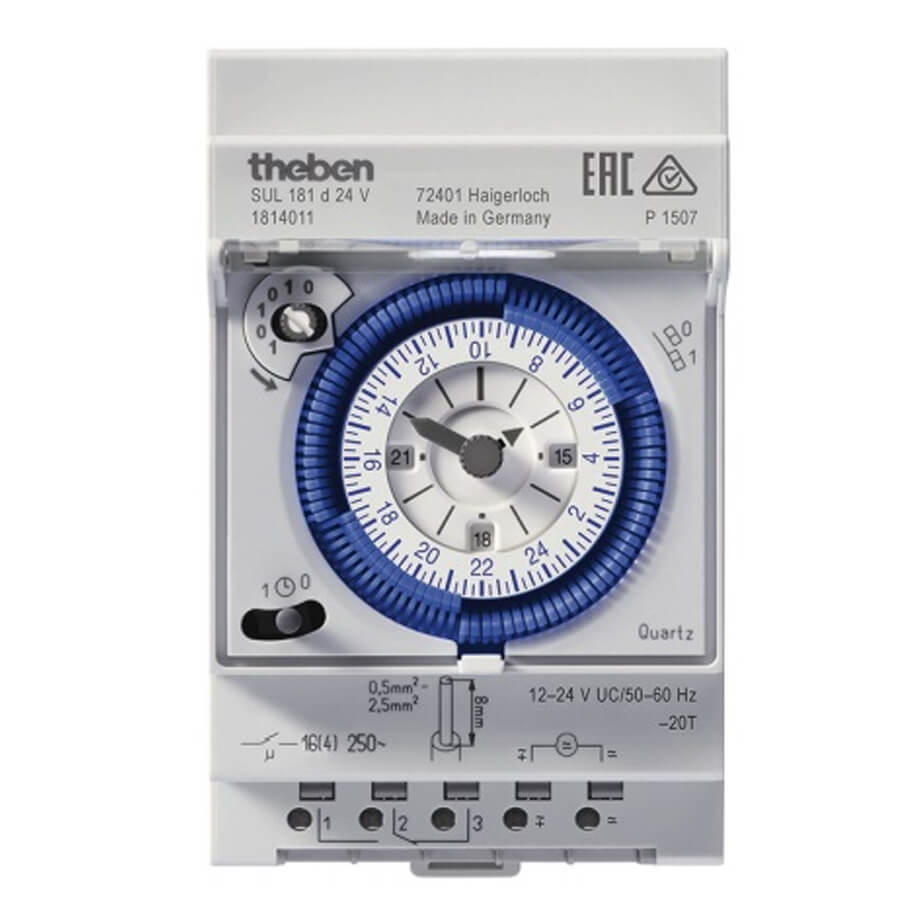

Digital Time Switches THEBEN SUL 181 d 24V
- Part Number: 1814011.
- Analogue time switch.
- 1 channel.
- Daily program.
- With power reserve (NiMH rechargeable battery).
- 96 switching segments.
- Quartz controlled.
- Shortest switching time: 15 minutes.
- Clock hands for time display and in addition 12/24 hour recognition.
- Simple summer/winter time correction.
- Time can be changed clockwise or anti-clockwise.
- DuoFix spring terminals.
- For 2 conductors each.
- Wire or strand (with or without wire end sleeve).
- Wire diameter: 0.5 - 2.5 mm².
- Button for releasing plug-in connection.
- Switching preselection.
- Manual switch with 3 positions: Continuous ON/AUTO/continuous OFF.
- Switching status display.
Đặc tính kỹ thuật
| Model | SUL 181 d 24V |
| Operating voltage | 12 – 24 V UC |
| Frequency | 50 – 60 Hz |
| Number of channels | 1 |
| Width | 3 modules |
| Installation type | DIN rail |
| Type of connection | DuoFix spring terminals |
| Drive | Quartz-controlled stepper motor |
| Program | Daily program |
| Power reserve | 200 hours |
| Switching capacity at 250 V AC, cos φ=1 | 16 A |
| Switching capacity at 250 V AC, cos φ=0,6 | 4 A |
| Incandescent/halogen lamp load | 1100 W |
| Shortest switching times | 15 min |
| Programmable every | 15 min |
| Time accuracy at 25 °C | ≤ ± 1 s/day (quartz) |
| Type of contact | Changeover contact |
| Switching output | Potential-free and phase-independent |
| Number of switching segments | 96 |
| Stand-by consumption | ~0,5 W |
| Capacity loss max. | 1,3 W |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Type of protection | IP 20 |
| Protection class | II according to EN 60 730-1 |
| Ambient temperature | -20 °C … +55 °C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
