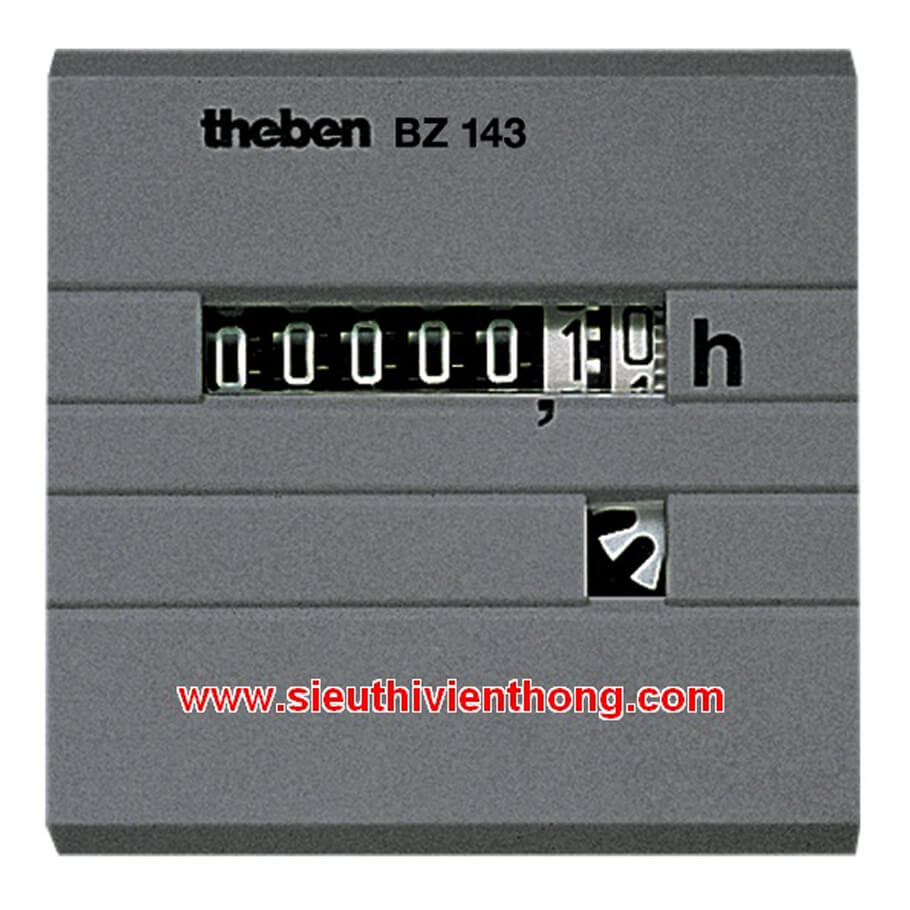

Bộ đếm giờ THEBEN BZ 143-1
- Hour counter with synchronous motor drive
- Front panel devices with click-in or stretch clamp supports for walls up to a maximum of 10 mm thick
- Clamp or flat plug connection 6.3 mm
- Versions for direct voltage with quartz-controlled stepper motor
- Progress display
Specifications
|
Operating voltage |
230 V AC |
|
Frequency |
50 Hz |
|
Installation type |
Front panel installation |
|
Size front plate |
52 x 52 mm |
|
Size of Installation section |
46 x 46 mm or 50 mm |
|
Counting range |
99 999,99 hours without reset |
|
Type of protection |
Front frame IP 65 |
|
Protection class |
II as per EN 60 335-1 |
|
Ambient temperature |
-20 °C ... +70 °C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
