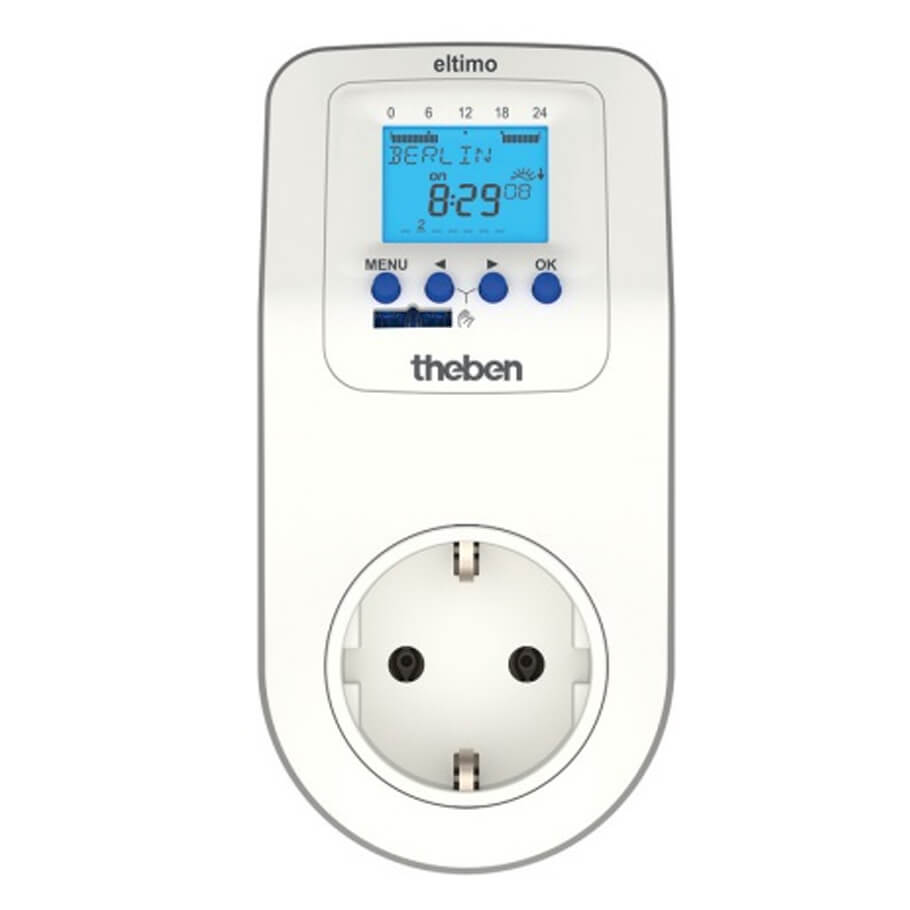

Digital Time Switch THEBEN theben-eltimo 020 Astro top3
- Digital plug-in timer with weekly and astronomical program.
- Programming by app possible.
- Safe transfer via optional Bluetooth Low Energy OBELISK top3.
- Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch.
- Use with earthed sockets.
- 1 channel.
- Easy operation via keys for program function and day of the week, hours, minutes.
- ON-OFF switching times.
- Switching preselection.
- Permanent switching ON/OFF.
- Automatic summer/winter time changeover.
Đặc tính kỹ thuật
| Operating voltage | 230 V AC |
| Frequency | 50 Hz |
| Installation type | Plug-in |
| Type of contact | NO contact |
| Program | Weekly program |
| Program functions | EIN-AUS |
| Number of channels | 1 |
| Number of memory locations | 56 |
| Power reserve | 6 years |
| Switching capacity at 250 V AC, cos φ = 1 | 16 A |
| Switching capacity at 250 V AC, cos φ = 0,6 | 10 A |
| Incandescent/halogen lamp load | 2600 W |
| Shortest switching times | 1 min |
| Time accuracy at 25 °C | ≤ ± 0.25 s/day (quartz) |
| Time basis | Quartz |
| Stand-by consumption | ~0.9 W |
| Type of connection | Plug-in |
| Display | LCD-Anzeige |
| Type of protection | IP 20 |
| Protection class | II for housing, I for plug system as per EN 62 730-1 |
| Ambient temperature | -10°C ... 40°C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
Giá: 2.340.000 VND
