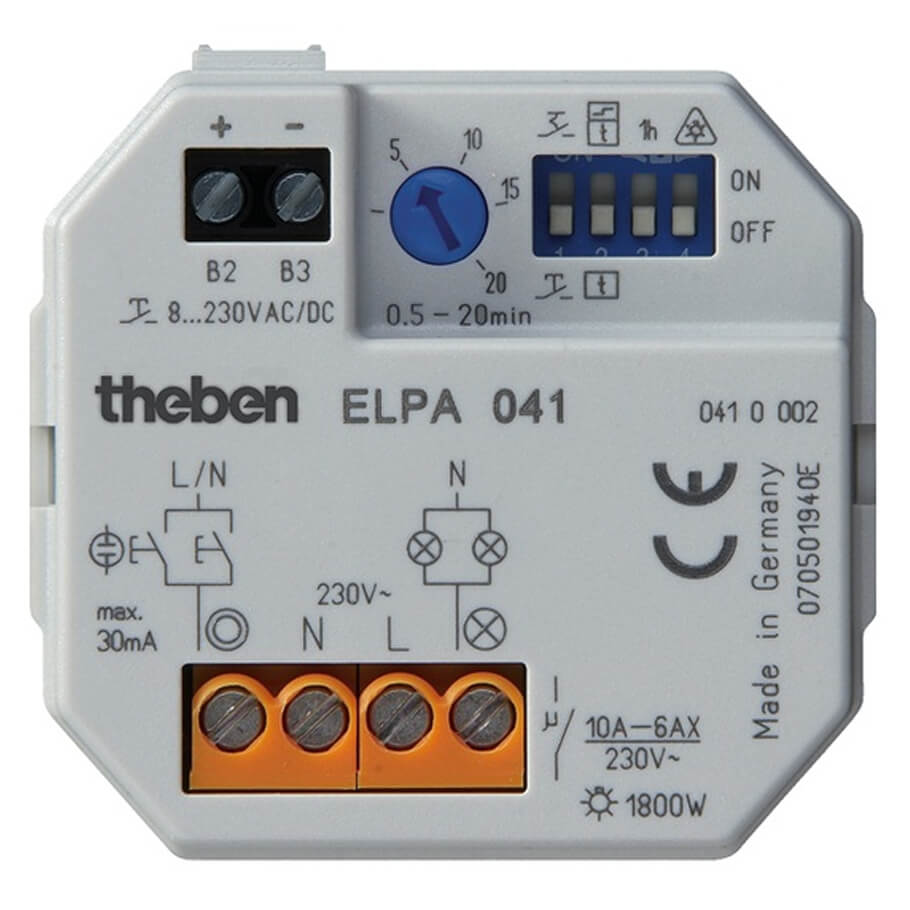

Công tắc hẹn giờ Staircase THEBEN ELPA 041

Trang Chủ >> Báo cháy-Báo trộm >> Công tắc hẹn giờ THEBEN >> Công tắc hẹn giờ Staircase THEBEN ELPA 041
Mã số:13140034
Công tắc hẹn giờ Staircase THEBEN ELPA 041

Công tắc hẹn giờ Staircase THEBEN ELPA 041

- Flush-mounted staircase time switch, electronic.

- Multi-functional device with 12 available functions, set at the front of the device.

- Switch or push button connectable, i.e. existing switches can be used (e.g. when updating).

- Additional multi-voltage input electrically isolated for AC/DC 8...240 V, e.g. for intercoms.

- Switch-off pre-warning (two double flashes) in accordance with DIN 18015-2 to avoid sudden darkness.

- 60 min. extended function activated via long button press.

- Immediate secondary switching (stair light switch) or prematurely switched off (pulse switch with switch-off delay).

- Suitable for upgrades and new installation.

- Zero-cross switching for relay-saving switching and high lamp loads.

- Push button input with electronic overload protection.

- Automatic 3 or 4 conductor detection (4 conductor with connection for floor lighting, 3 conductor no longer permitted for new systems).

- Extremely accurate.

- Immediate secondary switching.

Specifications

Model ELPA 041
Operating voltage 230 VAC
Frequency 50 - 60 Hz
Installation type Flush-mounted
Stand-by consumption ~0,1W
Glow lamp load 30 mA
Setting range time 0,5 – 20 min
Type of connection 3-/4-conductors
3/4-way conductors Automatic
Secondary switching At once
Type of contact NO contact
Opening width < 3 mm (µ)
Switching output Not Potential-free (230V)
Incandescent/halogen lamp load 1800 W
Fluorescent lamp load (conventional) lead-lag circuit 1200 VA
Fluorescent lamp load (conventional) parallel-corrected 580 VA 54 µF
Energy saving lamp 110W
LED lamp < 2 W 20W
LED lamp 2-8 W 70W
LED lamp > 8 W 100W
Fluorescent lamp load (electronic ballast) 200 W
Fluorescent lamp load (conventional) series-corrected 1200 VA
Switching capacity 6 AX (at 230 V AC, cos φ = 0.3), 10 A (at 230 V AC, cos φ = 1)
Test approval VDE
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Ambient temperature -25°C … +45°C
Type of protection IP20
Protection class II

- Hãng sản xuất THEBEN của Đức.

- Bảo hành: 12 tháng.

Giá: 1.820.000 VND
