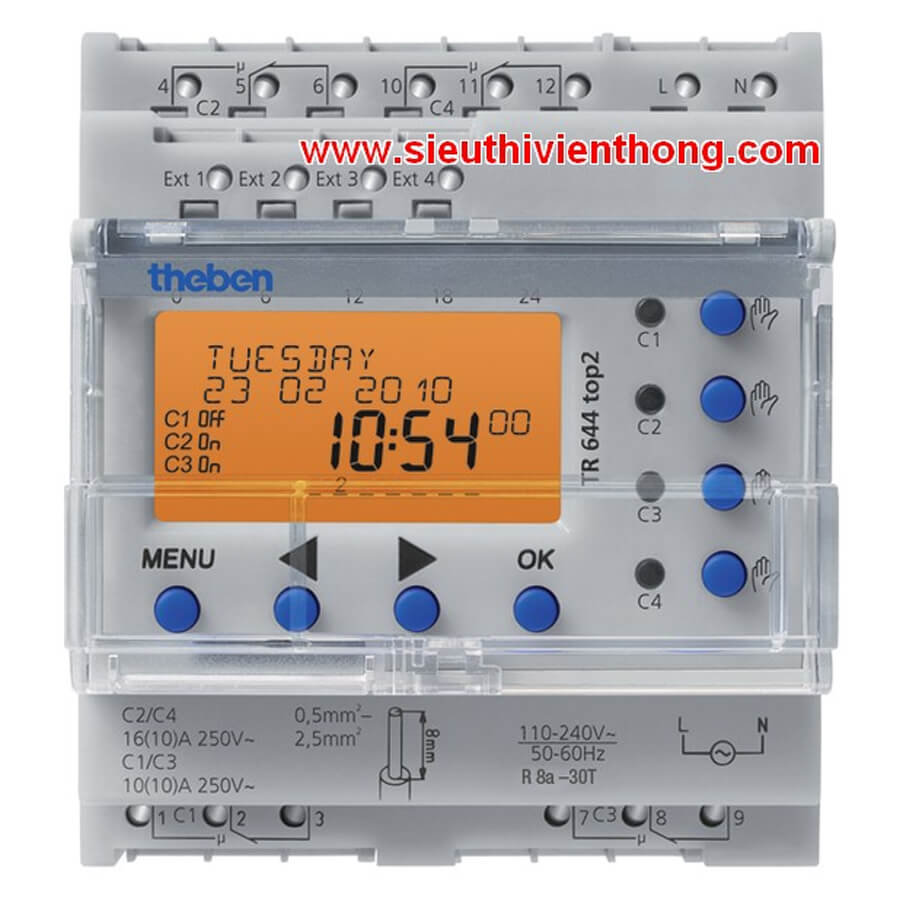

Công tắc hẹn giờ kỹ thuật số THEBEN TR 644 top2
- Digital time switch with yearly and astronomical time program
- 4 channels
- 4 external inputs
- Connectable sensors (external selector switch, sequence timer)
- Connectable switches (ON or OFF permanent switching)
- DuoFix spring terminals
- For 2 conductors each
- Wire or strand (with or without wire end sleeve)
- Wire diameter: 0.5 - 2.5 mm²
- Button for releasing plug-in connection
- Text-oriented user guidance in display
- Preset date and time
- fully operable without mains connection
- 800 memory locations
- Interface for OBELISK top2 memory card (PC programming)
- 2. insertable switching program
- Copying programs
- Storing programs
- OBELISK memory card included in delivery
- 10 year power reserve (lithium battery)
- Zero-cross switching for leay-saving switching and high lamp loads (not with 24 V devices)
- Automatic summer/winter time changeover
- can be deactivated
- Date rule options are already stored for Europe, the USA and other countries
- own date rule options or changeover around set dates are available
- ON-OFF switching times
- Pulse program
- Cycle program
- Extensive yearly clock functions
- Basic weekly program and 14 different weekly programs with priority levels and date ranges
- Permanent ON / permanent OFF with highest priority via date range program option
- fixed and variable public holidays, public holidays dependent on Easter, day and date ranges with serial pattern
- Public holiday database for Germany including all Federal states, Switzerland, France etc.
- Program simulation on clock display
- Graphic program simulation with 12 month overview for all channels on PC
- Astronomical time switch function (automatic calculation of sunrise and sunset times for the whole year)
- Offset for adjusting of sunrise and sunset times
- Position data via coordinates or country/city lists can be programmed
- Optional production of own city list (favourites) and a table with own astronomical times on PC
- Fixed ON-OFF switching times can be programmed (e.g. night time interruption)
- Simulation of astronomical switching times (calculated astronomical times and programmed ON/OFF switching times) for the whole year
- various astronomical setting options (evening ON - mornings OFF or evenings OFF - mornings ON, astronomical pulse)
- Switching preselection
- Permanent switching ON/OFF
- Count-down timer
- Integrated operating hour counter
- Reset option
- Service function for monitoring maintenance intervals
- Holiday program
- 2 random programs
- Display back light (can be turned off)
- PIN coding
Specifications
|
Operating voltage |
110 ~ 240 V AC |
|
Frequency |
50 ~ 60 Hz |
|
Width |
4 modules |
|
Installation type |
DIN rail |
|
Type of contact |
4 two-way switches |
|
Switching output |
Phase-independent |
|
Opening width |
< 3 mm |
|
Program |
Yearly program, Astronomical program |
|
Program functions |
ON-OFF, Pulse, Cycle |
|
Number of channels |
4 |
|
External inputs |
4 |
|
Number of memory locations |
800 |
|
Power reserve |
8 years |
|
Switching capacity at 250 V AC, cos φ = 1 |
16 A |
|
Switching capacity channels 1+3 |
10:00 AM |
|
Switching capacity at 250 V AC, cos φ = 0,6 |
10:00 AM |
|
Incandescent/halogen lamp load 230 V |
2300 W |
|
Incandescent/halogen lamp load 120 V |
1150 W |
|
Energy saving lamps 230 V |
37 x 7 W, 30 x 11 W, 26 x 15 W, 26 x 20 W, 11 x 23 W |
|
Energy saving lamps 120 V |
18 x 7 W, 15 x 11 W, 13 x 15 W, 13 x 20 W, 11 x 23 W |
|
Switching capacity min. |
ca. 10 mA |
|
Shortest switching times |
1 s |
|
Time accuracy |
≤ ± 0.5 s/day (quartz) |
|
Time basis |
Quartz |
|
Stand-by consumption |
0,5 W |
|
Memory card supplied |
|
|
Type of connection |
DuoFix spring terminals |
|
Keyboards |
4 touch buttons, 4 buttons for manual switching |
|
Housing and insulation material |
High-temperature resistant, self-extinguishing thermoplastic |
|
Type of protection |
IP 20 |
|
Protection class |
II as per EN 60 730-1 |
|
Ambient temperature |
-30 °C ... +45°C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
