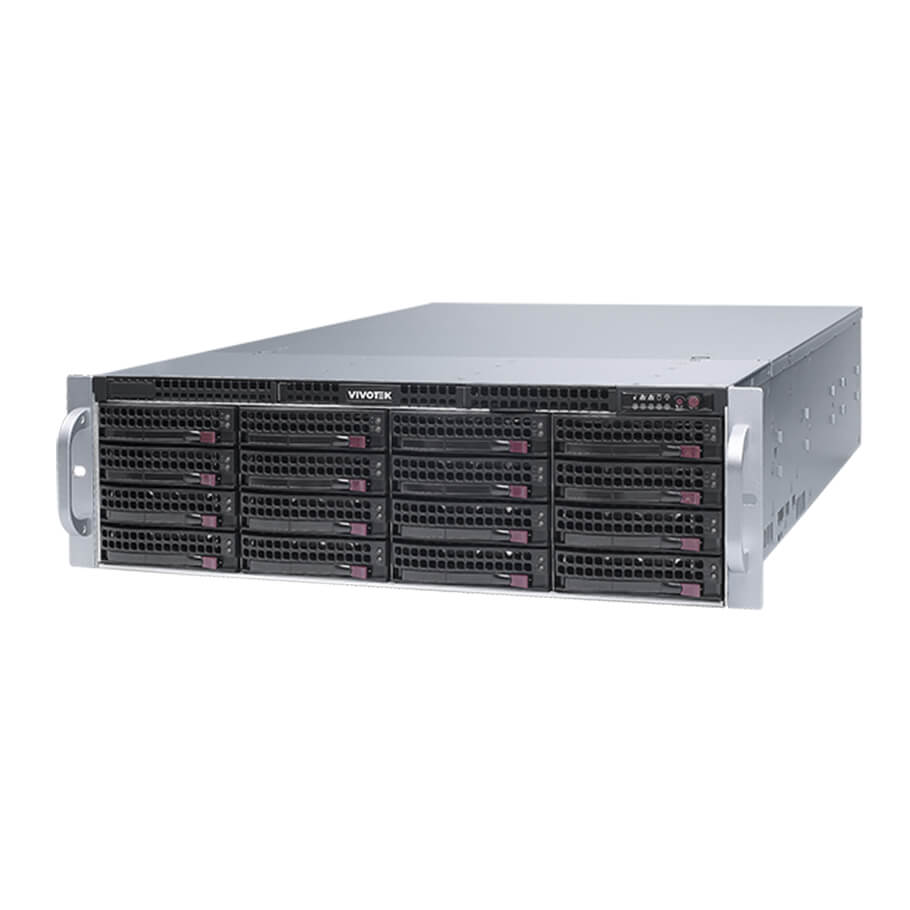

Đầu ghi hình camera IP 64 kênh Vivotek NR9682-V3
- Tích hợp VSS Pro 64 kênh, có thể mở rộng lên đến 192 kênh.
- 16 khay HDD có thể thay thế nóng.
- Nguồn điện dự phòng.
- Hai cổng mạng LAN 2.5Giga.
- Hỗ trợ lưu trữ RAID 0/1/5/6/10/50/60.
- Tích hợp VIVOTEK VAST Security Station.
- Hỗ trợ camera VIVOTEK Smart VCA cho tìm kiếm và ghi hình sự kiện.
- Tìm kiếm sâu (Tìm kiếm thuộc tính, tìm kiếm cảnh, tìm kiếm lại).
Đặc tính kỹ thuật
| Device | |
| Model | NR9682-V3 |
| OS | Embedded Windows 10 |
| Watchdog | Hardware + Software |
| Power Restoration | System Restart Automatically after Power Recovery |
| Display | |
| LiveView Display | 64 Channels(up to 192CH by license purchasing) Equal: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8 Panorama: 1P+6, 2P, 2P+3, 3P Focus: 1+12, 1+16, 1+3, 1+5, 1+7, 1+9, 2+8 Vertical: 1V+6, 2V+2, 2V+3, 3V, 3V+4, 4V, 4V+4, 5V Single Layout Display, full screen display Custom Layout, layout Rotation |
| Video Output | HDMI x1, Display Port x1, DVI x1, VGA x1 |
| Display Resolution | HDMI: 4096x2160 DP: 7680x4320 DVI: 1920x1200 VGA: 1920x1200 |
| Dual Monitor | Supported |
| Camera Position | Change the view cell position on the Live View screens |
| Stream Application | Stream selection & auto stream size |
| Monitor Enhancement | E-Map Embedded Drag & Drop Remote I/O Control PiP (Digital Zoom) Instant Playback Video Display Mode (Aspect Ratio & Camera Information) Metadata Display (VCA, Data Magnet) |
| Fisheye Dewarp | 1O, 1P, 1R, 1O3R, 4R, 2P, 4R Pro, 1O8R |
| PTZ/ePTZ Operation | Home, preset, patrol, auto pan, auto focus, manual focus, focus speed, zoom speed, tracking |
| Video | |
| Video Format | MJPEG, MPEG4, H.264, H.265 |
| Graphic Decoder | Software decoding |
| Decoding Resolution | Up to 7680x2560 |
| Decoding Capability | H.264: 1920x1080 @360 fps H.265: 1920x1080 @180 fps |
| Audio | |
| Audio Format | G.711, G.726, AMR, MPEG-2 AAC-LC |
| 2-way Audio | Supported |
| Record | |
| Recording Time (sec.) | Pre-Record: 3-15 Post-Record: 10-60 |
| Recording Stream | Single |
| Recording Throughput | 512 Mbps |
| Recording Mode | Continuous, Event, Customized Schedule |
| Recording Setting | Recycling time depends on the remaining storage space or the set number of days |
| Watermark | Supported |
| Recording Data Encry ption | Supported |
| Seamless Recording | Supported |
| Storage & Backup | |
| HDD Devices | Hot-Swappable Tray x16 (HDD is purchased by separately ) |
| HDD Max. Capacity | Please refer to HDD supported list on VIVOTEK website |
| RAID | RAID 0, 1, 5, 6, 10, 50, 60 |
| Disk Management | Create, Format and Remove Disk |
| Manual Backup | USB Dongle (FAT Format) NAS (SMB & CIFS) |
| Schedule Backup | NAS (SMB & CIFS) |
| Playback | |
| Playback Display | 64 Channels(up to 192CH by license purchasing) Equal: 1x1, 2x2, 3x3, 4x4, 5x5, 6x6, 7x7, 8x8 Panorama: 1P+6, 2P, 2P+3, 3P Focus: 1+12, 1+16, 1+3, 1+5, 1+7, 1+9, 2+8 Vertical: 1V+6, 2V+2, 2V+3, 3V, 3V+4, 4V, 4V+4, 5V Single Layout Display, full screen display Custom Layout, layout Rotation |
| Playback Control | 1/64X ~ 64X speed control, next/previous frame, pause, play, rewind, stop |
| Video Search | Calendar, Event, Alarm, Bookmark, Thumbnail, Smart Search II, Data Magnet, Log, Deep Search |
| Snapshot | JPEG, PNG |
| Video Clip Export | 3GP |
| Network | |
| Ethernet | 2.5 Gigabit LAN x2 |
| Video Throughput for Remote Client | 650 Mbps |
| Protocols | IPv4,TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, iSCSI |
| Alarm Management | |
| Alarm Period (sec.) | Max. 30 |
| Alarm Filter | Time, Trigger Type (Camera/ Substation/ System), Status, Name, Trigger Source |
| Alarm Setting | Realtime System Notification Alarm Result Display by List or Thumbnail |
| Schedule Type | Continuous, schedule |
| Camera Event | General: Audio detection, camera DI/DO, camera disconnected, IR (Infrared), Motion detection, PIR(Passive infrared), PPTZ (Panoramic PTZ), Recording error, SD card life expectancy detection, Shock detection, Stop recording, Tampering detection, Temperature, Video loss (Video server only ) Smart VCA: Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection, Running detection, Parking violation detection, Restricted zone detection, Smart tracking, Zone detection Trend Micro IoT Security: Brute force attack, Cyber attack, Quarantine Counting Camera: Number of remaining people |
| Substation | NV Series NVR: Storage failure, Storage full, Network disconnected, Abnormal g-sensor motion, speeding, GPS disconnected ND Series NVR: Storage failure, storage full, network disconnected, fan status, brute force attack, cyberattack, quarantine NR Series NVR: Storage failure, Storage full, Network disconnected |
| External Devices Event | DI/O (with I/O Box), TCP Message |
| Action | Start to record videos, Set DO status, Go to camera presets, Send HTTP requests, Send live streaming, Send email with snapshot of assigned camera(s), Go to E-Map, Sound the alarm and Add bookmark |
| Alarm State for Management | New, In Progress, False Alarm and Close |
| Alarm Result Export | .csv f ile |
| eMap | |
| Source | BMP, GIF, JPG, PNG, SVG |
| Device | Camera, DI/DO (Camera, NVR, external) , regional map |
| Marked | Add, Remove, Direction Control, PTZ Control, FOV Control, LiveView & Playback |
| Event Notification | One or More Live Streaming |
| External Interface | |
| USB | Back USB 2.0 x 2 USB 3.2x 4 |
| Audio In/ Out | Microphone audio jack Input x1 3.5 Line input audio jack x1 3.5 Line output audio jack x1 SPDIF out x1 7.1 HD support (surround out x 1, CEN/LFE x 1) |
| System | |
| POS Integration | ARCH |
| UPS Integration | Supported |
| Camera Integration | ONVIF Profile S |
| I/O Box Integration | Advantech ADAM-6000 Series CHIYU CYT-133SC MOXA ioLogik E1210, E1211 and E1212 |
| User Management | Authentication: Basic Account / Windows AD Account User-defined Role User Account: 4096 |
| Log | Operation, system and event log |
| Date & Time | Sync server |
| Advanced Features | |
| VCA Counting Solution | Supported |
| LPR Solution | Supported |
| VCA Event Search | Smart VCA |
| Smart Search | Smart Search I & Smart Search II |
| Deep Search | Supported |
| Cybersecurity Management | Supported |
| Failover | Supported |
| Remote Client | |
| Software AP | Shepherd, VSS Pro |
| Mobile/Tablet App | iViewer (iOS/Android) |
| General | |
| Power Input | Redundant power 100~240V AC |
| Power Consumption | Max. 920 W |
| Redundant Power | Supported |
| 80 Plus Certified | Platinum |
| Dimensions | 132 (H) x 437 (W) x 647 (D) mm |
| Weight | 33 kg (without HDD) |
| Operating Temperature | 5°C ~ 35°C (41°F ~ 95°F) |
| Humidity | 5% ~ 95% |
| Safety Certifications | CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS |
- Bảo hành: 24 tháng.
