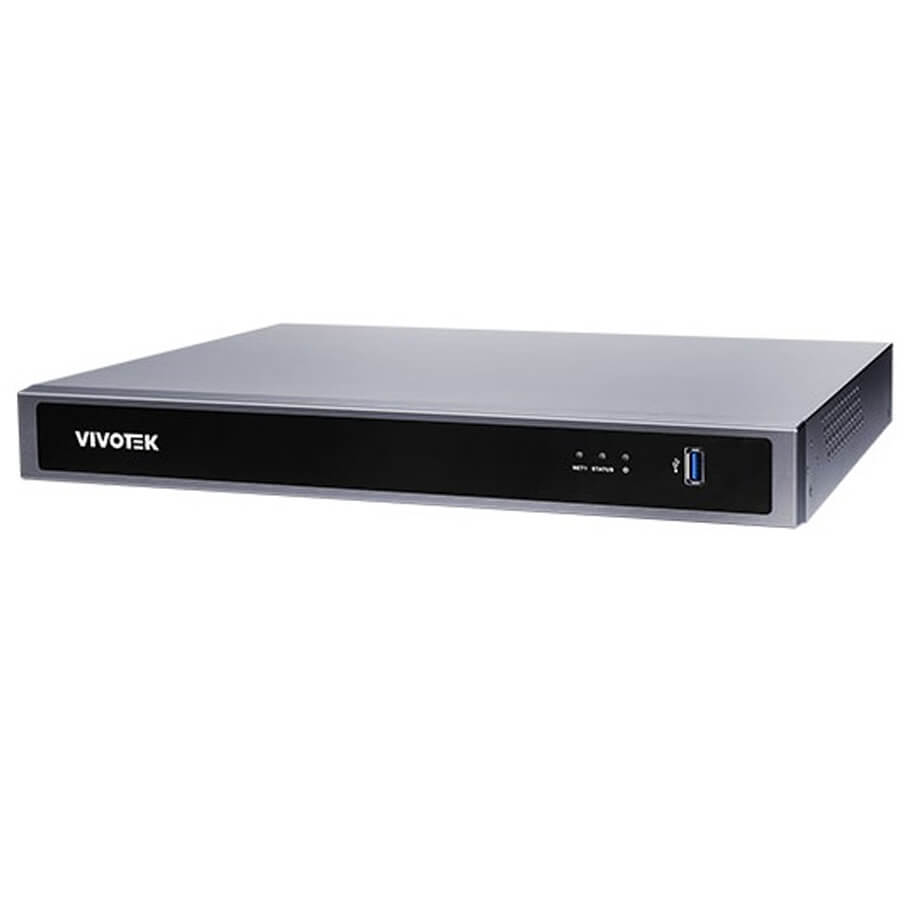

Đầu ghi hình camera IP 16 kênh Vivotek ND9426P
- Hỗ trợ camera 4K.
- Khả năng giải mã lên đến 1080P với tốc độ 480fps.
- Hỗ trợ nhiều sự kiện VIVOTEK VCA hơn.
- Hỗ trợ camera VIVOTEK Smart VCA cho tìm kiếm sự kiện và ghi hình.
- Đơn giản hóa việc đánh giá với Tìm kiếm Nâng cao.
- Hỗ trợ trình duyệt Chrome mà không cần cài đặt plugin.
Đặc tính kỹ thuật
| Device | |
| Model | ND9426P |
| Watchdog | Hardware + Sof tware |
| Power Restoration | System Restart Automatically after Power Recovery |
| Reset Button | Yes |
| Display | |
| LiveView Display | 16 Channels Multi Layout Display: 1x1, 2x2, 3x3, 4x4, 1M+5,1M+12, 1P+3,1P+6,2P+3, 3V |
| Video Output | HDMI x1, VGA x1 |
| Display Resolution | 3840x2160, 1920x1080, 1280x720 HDMI up to 3840 x2160, VGA up to 1920 x1080p |
| Fisheye Dewarp | Local: 1O, 1P, 1R, 1O3R, 1O8R, 1P3R Web: 1O, 1R, 1P |
| PTZ Operation | Direction Control, Home, Iris, Preset, Patrol (Group) |
| Video | |
| Video Format | MJPEG, H.264, H.265 |
| Graphic Decoder | Hardware decoding |
| Decoding Resolution | Up to 7680x2560 |
| Decoding Capability | H.265/H.264: 3840x2160 @ 120 fps (4-CH) 1920x1080 @ 480 fps (16-CH) |
| Audio | |
| Audio Format | G.711, G.726 |
| Audio In/Out | 3.5 Phone Jack Audio Output x1 3.5 Phone Jack Audio Input x1 |
| Record | |
| Recording Time (sec.) | Pre-Record: 5 (Max. 10) Post-Record: 20 (Max. 300) |
| Recording Throughput | 192 Mbps |
| Recording Mode | Continuous, Schedule, Manual, Event |
| Recording Setting | Recycle (unit: Day ) |
| Storage & Backup | |
| HDD Devices | Internal x2 (3.5 inch) |
| RAID | RAID 0,1 |
| Disk Management | Create, Format and Remov e Disk HDD S.M.A.R.T |
| External Storage | USB Storage (USB 3.0) |
| Video Clip Export | USB Dongle (FAT Format) |
| Schedule Backup | FTP |
| Playback | |
| Playback Display | 4 Channels Multi Layout Display |
| Playback Contro | Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Story board) |
| Video Search | By calendar, date/time, and alarm |
| Thumbnail Explorer (Story board) | Listing the thumbnail of recorded video (Max. 2 CH) |
| Snapshot | JPEG |
| Video Clip Export | Supported |
| Network | |
| Ethernet | 10/100/1000Mbps Ethernet (RJ-45) x2 |
| Network Throughput Input/Output Total | 224Mbps |
| PoE | 802.3at/af compliant PoE ports x 16 (total Max. 200W) |
| PoE Management | Supported |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS |
| External Interface | |
| USB | Front x1 (USB 3.0) Back x2 (USB 2.0) |
| Alarm In | 4 |
| Alarm Out | 1 |
| Audio | 3.5 Phone Jack Audio Output x1 3.5 Phone Jack Audio Input x1 (reserv ed) |
| System | |
| Camera Integration | ONVIF Profile S |
| Event | Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error |
| Event Action | Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full screen, send to CMS,VIVOCloud APP Notif ication |
| User Management | User level: administrator, regular user |
| Log | System, Recording, User, Error |
| Date & Time | Time Zone, Manual, Automatic Sync NTP, Day light Saving Time |
| Language | Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplif ied Chinese, Traditional Chinese, Arabic |
| Deep Search | |
| Object Search | People, Vehicle |
| Scene Search | Line crossing, Intrusion, Loitering |
| Attribute Search | People: Gender, Age, Clothing Color, Accessories Vehicles: Type, Color |
| Advanced Features | |
| VCA Counting Solution | Supported |
| VCA Event Search | Supported |
| Smart Search II | Supported |
| Trend Micro IoT Security | Supported |
| Cybersecurity Management | Supported |
| Remote Client | |
| Software AP | Shepherd, VSS (VAST Security Station) |
| Mobile/Tablet App | iViewer (Android & iOS) |
| Web Browser | Chrome |
| VIVOCloud | Supported |
| General | |
| Power Input | 100-240V AC, 50/60Hz |
| Power Consumption | Max. 270W |
| Dimensions | 365 (W) x 315 (D) x 44 (H) mm |
| Weight | 2.78 kg |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Humidity | 0 ~ 95% |
| Safety Certifications | CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS |
- Bảo hành: 24 tháng.
