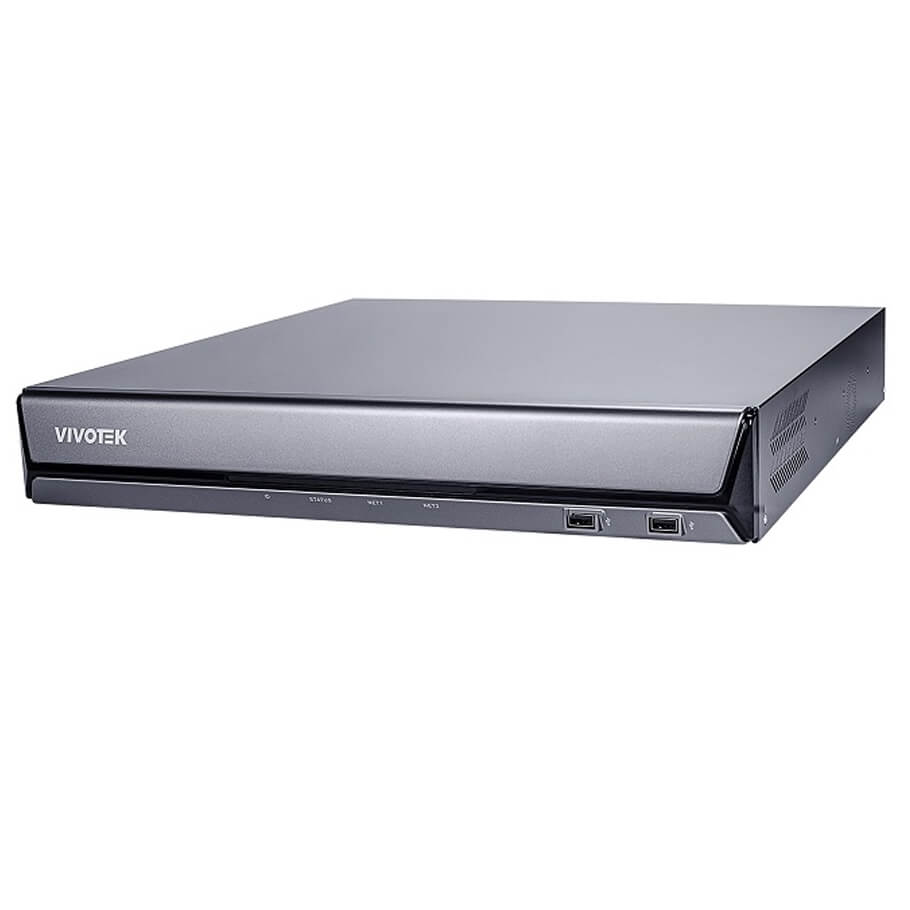

Đầu ghi hình camera IP 16 kênh Vivotek ND9442P
- Công nghệ nén hình ảnh H.265 với độ phân giải 1080P và tốc độ 360fps.
- Hỗ trợ camera lên đến 20MP.
- Đầu ra video 4K cho màn hình giám sát rõ ràng và chi tiết.
- Tìm kiếm nâng cao (tìm kiếm theo thuộc tính, tìm kiếm theo cảnh).
- Hỗ trợ camera VIVOTEK Smart VCA cho tìm kiếm sự kiện và ghi hình.
- Hỗ trợ PoE 802.3at/af với quản lý PoE.
- Hỗ trợ RAID 0, 1, 5 giúp ngăn ngừa mất dữ liệu ghi hình.
- Đầu vào cảnh báo x16, đầu ra cảnh báo x8.
- Bảo mật IoT Trend Micro và quản lý an ninh mạng.
Thông số kỹ thuật
| Model | ND9442P |
| Device | |
| OS | Embedded Linux |
| Watchdog | Hardware + Software |
| Power Restoration | System Restart Automatically after Power Recovery |
| Local Display | |
| LiveView Display | 16 Channels Multi-Layout Display: 1×1, 2×2, 3×3, 1P+3, 2P+3, 1M+5, 1P+6, 3V, 1M+12, 4×4 |
| Video Output | HDMI x1, VGA x1 |
| Display Resolution | 3840×2160, 1920×1080, 1280×720 |
| Fisheye Dewarp | Local: 1O, 1R, 1P, 1O3R, 1O8R, 1P3R Web: 1O, 1R, 1P |
| PTZ Operation | Direction Control, Home, Iris, Preset, Patrol (Group), PiP Control |
| Video | |
| Video Format | H.265, H.264, MJPEG |
| Graphic Decoder | Hardware decoding |
| Decoding Resolution | Up to 7680×2560 |
| Decoding Capability | H.265/H.264: 3840×2160 @ 90 fps (3-CH) 1920×1080 @ 360 fps (12-CH) |
| Audio | |
| Audio Format | G.711, G.726 |
| Audio In/Out | 3.5 Phone Jack Audio Output x1 3.5 Phone Jack Audio Input (Reserved) x1 |
| Record | |
| Recording Time (sec.) | Pre-Record: 5 (Max. 10) Post-Record: 20 (Max. 300) |
| Recording Stream | Dual |
| Recording Throughput | 192 Mbps |
| Recording Mode | Continuous, Schedule, Manual, Event, Activity Adaptive Streaming |
| Recording Setting | Recycle (unit: Day) |
| Watermark | Supported |
| Storage & Backup | |
| HDD Devices | Internal x4 (3.5″) |
| RAID | RAID 0, 1, 5 |
| External Storage | USB Storage (USB 3.0) |
| Video Clip Export | USB Dongle (FAT Format) |
| Schedule Backup | FTP |
| Playback | |
| Playback Display | 4 Channels Multi-Layout Display: 1×1, 2×2, 1P+3, 3V |
| Playback Control | Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard) |
| Video Search | By calendar, date/time, and alarm |
| Thumbnail Explorer (Storyboard) | Listing the thumbnail of recorded video (Max. 2-CH) |
| Snapshot | JPEG |
| Network | |
| Ethernet | 10/100/1000Mbps Ethernet (RJ-45) x2 |
| Network Throughput Input/Output Total | 224 Mbps |
| PoE | 802.3at/af compliant PoE ports x 16 (Total Max. 200 W) |
| PoE Management | Supported |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS |
| External Interface | |
| USB | Front: 2 (USB 2.0), Back: 1 (USB 3.0) |
| Alarm In | 16 |
| Alarm Out | 8 |
| Audio | 3.5 Phone Jack Audio Output x1 3.5 Phone Jack Audio Input (Reserved) x1 |
| RS485 | 1 (Reserved) |
| System | |
| Camera Integration | ONVIF Profile S |
| Event | Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Fan error |
| Event Action | Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, VIVOCloud APP Notification |
| User Management | User level: administrator, regular user |
| Log | System, recording, user, error |
| Date & Time | Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time |
| Deep Search | |
| Object Search | People, Vehicle |
| Scene Search | Line crossing, Intrusion, Loitering |
| Attribute Search | People: Gender, Age, Clothing Color, Accessories Vehicles: Type, Color |
| Advanced Features | |
| VCA Counting Solution | Supported |
| VCA Event Search | Supported |
| Smart Search II | Supported |
| Trend Micro IoT Security | Supported |
| Cybersecurity Management | Supported |
| Remote Client | |
| Software AP | Shepherd, VAST 2, VSS (coming soon) |
| Mobile/Tablet App | iViewer (Android & iOS) |
| Web Browser | Chrome |
| VIVOCloud | Supported |
| General | |
| Power Input | 100-240V AC, 50/60Hz |
| Power Consumption | Max. 300 W |
| Dimensions | 432 (W) x 421 (D) x 66 (H) mm |
| Weight | 4.6 kg (without HDD) |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F) |
| Humidity | 0 ~ 95% |
- Bảo hành: 24 tháng.
