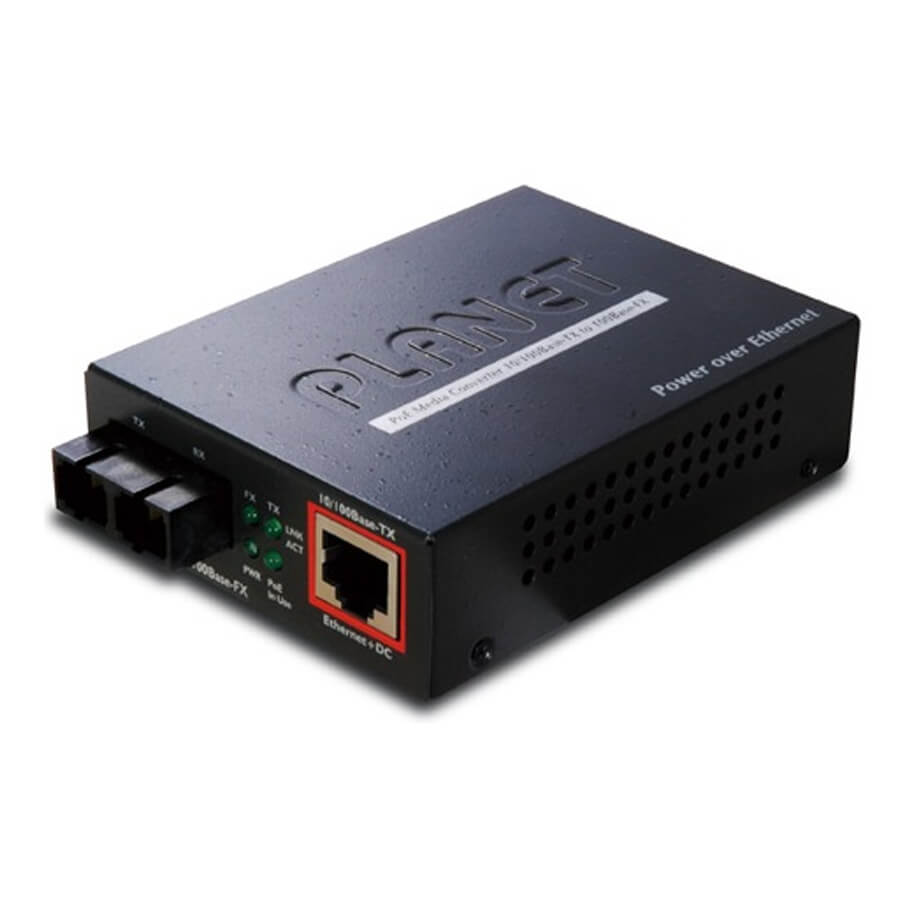

100Base-FX to 10/100Base-TX PoE Media Converter PLANET FTP-802

100Base-FX to 10/100Base-TX PoE Media Converter PLANET FTP-802

- Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX, IEEE 802.3afPower over Ethernet standards

- Auto negotiation for 10/100Base-TX half duplex mode or full duplex mode, auto-MDI / MDI-X function on copper port

- IEEE 802.3x full duplex flow control and back pressure in half duplex eliminate packets loss

- Provides DC 48V power over RJ-45 Ethernet cable to devices with Ethernet port

- Auto-detect PoE IEEE 802.3af equipment; protects devices from being damaged by incorrect installation

- 100Base-FX interface for up to 2km (multi-mode fiber 50µm/125µm, 62.5µm/125µm)

- DIP-switch: LFP (Link Fault Pass-through) mode selection

- Compact in size, easy to install

- LED indicators for easy network diagnostics

Specifications

Interface
Copper 1-port Fast Ethernet TP interface, auto negotiation, auto-MDI / MDI-X with PoE injector function
Fiber Multi-mode: 50/125µm or 62.5/125µm optical fiber
Fiber Port Type (connector) SC
Cable Distance 2km
Optical Frequency 1310nm
Launch Power(dBm) max.-14 min.-19.0
Receive Sensitivity -34.5
Maximum Input Power -14
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet
Power Output PoE 48V DC, max. 15.4 watts, 350mA
Power Pin Assignment 1/2(+) , 3/6(-)
Hardware
Switch Architecture Store-and-Forward
Flow Control Back pressure for half duplex mode
IEEE 802.3x pause frame for full duplex mode
LED System: Power, Status
FX / LNK: Data Active, Fiber Link
TX / LNK: 10/100 Link / Active
PoE in Use: Detects PSE Device
Dimensions (H x W x D) 26 x 70 x 97 mm
Weight 0.2 kg
Power Supply 48V DC, 0.4A external AC-to-DC adapter
Operating Temperature 0~50 degrees C
Operating Humidity 5~90% (non-condensing)
LFP Mode Enable: when either TP port or FX port is broken, shut down the other port
Disable: Link LED indicators is still on if connection of the other end is broken
Standards Conformance
Regulation Compliance FCC Part 15 Class A, CE
Protocols and Standards Compliance IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet

- Sản xuất tại Đài Loan.

- Bảo hành: 12 tháng.



Giá: 1.596.000 VND (Đã bao gồm VAT)
