0916 287 068 100/1000BASE-X to 10/100/1000BASE-T PoE Media Converter PLANET GTP-805A
Trang Chủ >>
Chuyển đổi Quang-điện >> Media Converter Planet >> 100/1000BASE-X to 10/100/1000BASE-T PoE Media Converter PLANET GTP-805A
Mã số:03017669

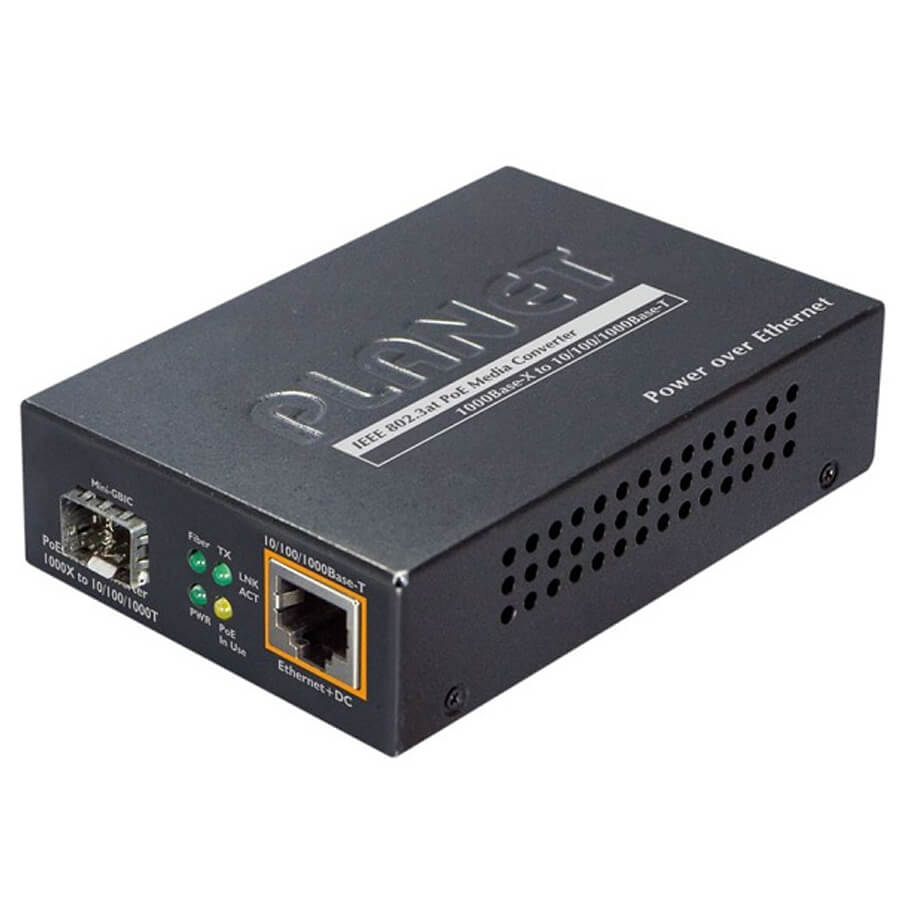

100/1000BASE-X to 10/100/1000BASE-T 802.3at PoE Media Converter PLANET GTP-805A
- The GTP-805A, a Power over Ethernet Media Converter, meets the need of higher power input and long distance transmission PoE devices. With the brand-new IEEE 802.3at High Power over Ethernet technology applied, the GTP-80x series provides the following key features:
o IEEE 802.3at / IEEE 802.3af PoE standard compliance
o Supports a maximum of 30 watts of output power
o 1000BASE-T port supports 10/100/1000Mbps in full-duplex mode
o 100/1000Mbps fiber-optic support
Specifications
| Interface | |
| Version | 2 |
| Copper Port | 10/100/1000BASE-T Ethernet TP interface Auto-negotiation, auto MDI/MDI-X with PoE injector function |
| SFP Port | 100/1000BASE-X SFP interfaces |
| Fiber Mode | May vary on SFP Module |
| Fiber Port Type (connector) | SFP |
| Cable Distance | May vary on SFP Module |
| Optical Frequency | May vary on SFP Module |
| Launch Power (dBm) | May vary on SFP Module |
| Receive Sensitivity | May vary on SFP Module |
| Maximum Input Power | May vary on SFP Module |
| Power Over Ethernet | |
| PoE Output | IEEE 802.3af Power over Ethernet standard IEEE 802.3at Power over Ethernet enhancements standard |
| Power Output | PoE 52V DC, max. 30 watts |
| PoE Power Supply Type | Mid-span |
| Power Pin Assignment | 4/5 (+), 7/8 (-) |
| PoE Power Budget | 30 watts |
| Hardware | |
| Switch Architecture | Store-and-Forward |
| Flow Control | Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode |
| Maximum Frame Size | 9K |
| LED | System: PWR Fiber 100/1000BASE-X: LNK / ACT (GTP-805A) Fiber 1000BASE-X: LNK / ACT (GTP-802/GTP-802S) TP 10/100/1000BASE-T: LNK / ACT PoE: Power-in-use |
| Dimensions (W x D x H) | 70 x 94 x 26 mm |
| Weight | 0.21kg |
| Power Supply | 52V DC, 0.58A external AC-to-DC adapter |
| LFP mode | Enable: Shut down either TP port or fiber port that is broken Disable: Link LED indicators still on if connection of the other end is broken |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Protocols and Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet. IEEE 802.3at Power over Ethernet enhancements standard |
| Environment | |
| Temperature | 0~50 degrees C |
| Humidity | 5~90% (non-condensing) |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
Giá: 1.764.000 VND
(Đã bao gồm VAT)
