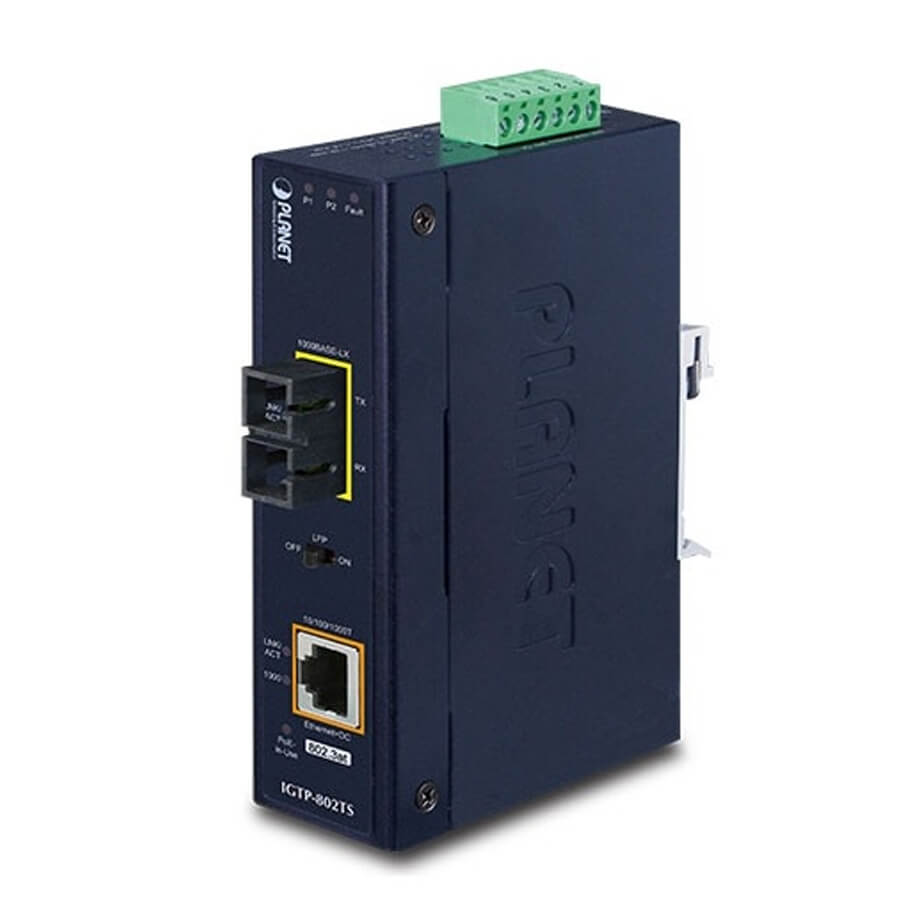

1000BASE-X to 10/100/1000BASE-T PoE+ Media Converter PLANET IGTP-802TS

1000BASE-X to 10/100/1000BASE-T PoE+ Media Converter PLANET IGTP-802TS
Cổng vật lý
- 1 cổng RJ45 10/100/1000BASE-T tích hợp tính năng cấp nguồn PoE+ (Injector) theo chuẩn IEEE 802.3af / 802.3at.
- 1 cổng quang 1000BASE-SX/LX chuẩn SC.
Nguồn qua Ethernet (PoE)
- Tuân thủ chuẩn IEEE 802.3at/af PoE Plus, kiểu cấp nguồn end-span PSE.
- Hỗ trợ cấp nguồn cho 1 thiết bị chuẩn IEEE 802.3at/af.
- Công suất cấp nguồn tối đa lên đến 30.8 watt trên mỗi cổng PoE.
- Cấp nguồn DC 52V thông qua cáp Ethernet RJ45 đến thiết bị nhận nguồn (PD) có cổng mạng.
- Tự động phát hiện thiết bị chuẩn IEEE 802.3at/af, bảo vệ thiết bị khỏi hư hỏng do lắp đặt sai chuẩn.
- Hỗ trợ cấp nguồn từ xa lên đến 100 mét.
- Tương thích với các thiết bị splitter theo chuẩn IEEE 802.3at/af.
Tính năng Layer 2
- Hỗ trợ tự động đàm phán tốc độ và chế độ hoạt động: 10/100Mbps ở chế độ bán hoặc song công; 1000Mbps ở chế độ song công.
- Ngăn ngừa mất gói tin với cơ chế back pressure (ở chế độ half-duplex) và điều khiển luồng IEEE 802.3x (ở chế độ full-duplex).
Thiết kế công nghiệp và phương thức lắp đặt
- Vỏ kim loại chuẩn IP30.
- Thiết kế hỗ trợ lắp đặt DIN-rail hoặc gắn tường.
- Hỗ trợ nguồn dự phòng 12 ~ 48V DC hoặc 24V AC, có chức năng bảo vệ ngược cực và khối đầu nối tháo rời riêng biệt cho nguồn chính và nguồn phụ.
- Bảo vệ ESD Ethernet lên đến 6000 VDC.
- Nhiệt độ hoạt động rộng: từ -40 đến 75°C.
Thông số kỹ thuật
Ethernet Interface | |
Copper | 10/100/1000BASE-T Ethernet TP interface. Maximum 100m distance Auto-negotiation, auto MDI/MDI-X with PoE injector function |
1000BASE-X Fiber-optic Connector Type | SC |
Fiber Cable | Single-mode: 9/125μm optic fiber |
Fiber Cable Distance | 10km |
Fiber Optical Frequency | 1310nm |
Launch Power | Max. -3dBm Min. -9.5dBm |
Receive Sensitivity | -14.4dBm |
Maximum Input Power | -20dBm |
Power Over Ethernet | |
PoE Standard | IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
PoE Power Output | 52V DC: 15.4 watts 52V DC: 30 watts |
PoE Power Supply Type | End-span |
Power Pin Assignment | 1/2(+), 3/6(-) |
PoE Power Budget | 30 watts |
Hardware | |
Speed | Twisted-pair: 10/20Mbps for half/full duplex 100/200Mbps for half/full duplex 1000/2000Mbps for full duplex Fiber Optic: 200Mbps / 2000Mbps for full duplex |
Flow Control | Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode |
Maximum Frame Size | 9K |
LED | System: Power 1, Power 2 and Fault LED (Green) Fiber 1000BASE-X: LNK/ACT (Green) TP 10/100/1000BASE-T: LNK/ACT, 1000 (Green) PoE: Power-in-use (Orange) |
Dimensions (W x D x H) | 135 x 87 x 32 mm |
Weight | 510g |
Unit Input Voltage | 12 ~ 48V DC 24V AC |
Power Consumption | 24V: 4.3watts/14BTU, 48V: 4.8watts/16BTU (without PoE) 24V: 33watts/112BTU, 48V: 31watts/105BTU (with PoE) |
Link Fault Passthrough DIP Switch | ON/OFF |
Enclosure | IP30 metal case |
Installation | DIN-rail kit and wall-mount ear |
ESD Protection | 6KV DC |
Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
Cables | 10/100/1000BASE-T: 2-pair UTP Cat. 3, 4, 5, 5e, 6 (maximum 100 meters) EIA/TIA-568 100-ohm STP (maximum 100 meters) 100BASE-FX/1000BASE-SX/LX: Multi-mode: 50/125μm or 62.5/125μm optical fiber Single-mode: 9/125μm optical fiber |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Protocols and Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
Environment | |
Temperature | Operating: -40~75 degrees C Storage: -40~85 degrees C |
Humidity | Operating: 5~90% (non-condensing) Storage: 5~90% (non-condensing) |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
