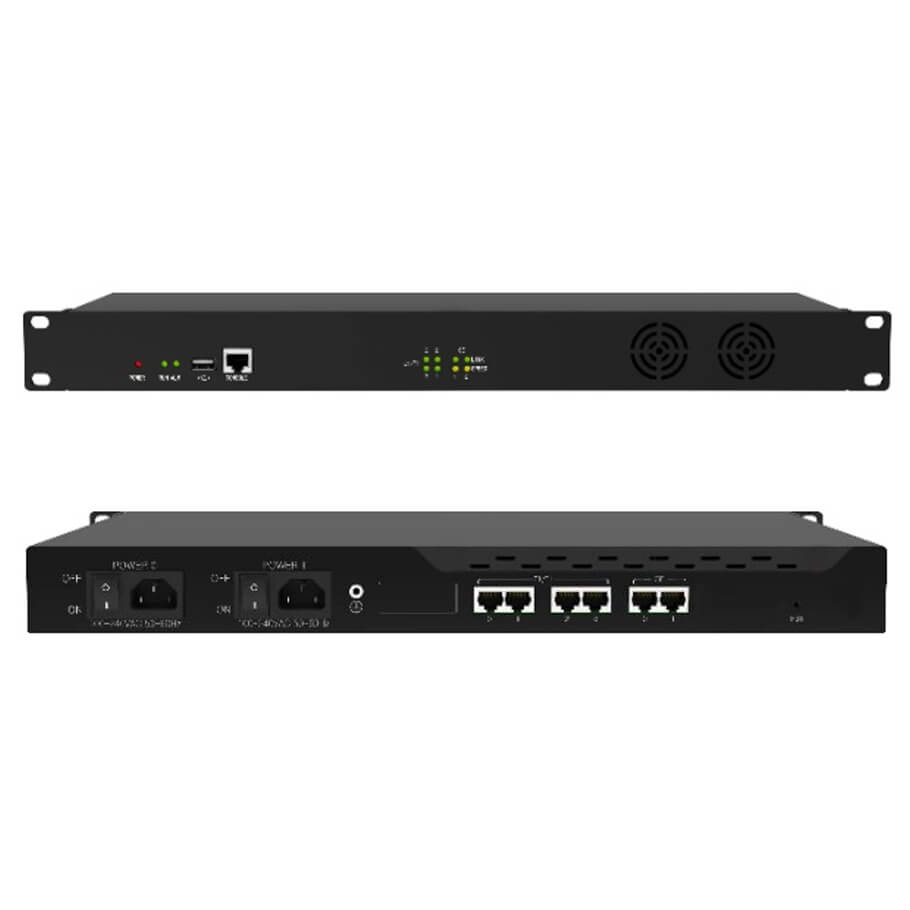

VoIP Trunk Gateway Dinstar MTG1000
- Efficient concurrent processing, up to 60 channels.
- Support flexible dialing rules and operations, allowing users to customize dialing rules according to different working environments.
- Support T.38,Pass-through fax, as well as modem and POS machines.
- Support multiple coding standards: G.711A/U, G.723.1, G.729A/B and AMR.
- High compatibility, interoperable with PBX of Avaya, NEC and Alcatel, and also leading soft-switch of Huawei, Cisco and ZTE etc.
Đặc tính kỹ thuật
| Physical Interfaces | - E1/T1 Ports 1 to 2 E1/T1 - Interface Type RJ48(Impedance 120Ω） - Ethernet Interface GE1: 10/100/1000 Base-T Adaptive Ethernet GE0: 10/100/1000 Base-T Adaptive Ethernet - Serial Port 1* RS232, 115200bps |
| PSTN | - ISDN PRI 23B+D(T1),30B+D(E1),NT or TE ITU-T Q.921, ITU-T Q.931, Q.Sig - Signal 7/SS7 ITU-T, ANSI，ITU-CHINA MTP1/MTP2/MTP3, TUP/ISUP - R2 MFC China and other 22 variants standard E1 Frame Type : DF,CRC-4,CRC_ITU - T1 Frame Type : 4-Frame Multi-frame (F4,FT) 2-Frame Multi-frame (F12, D3/4) Extended Super-frame (F24, ESF) Remote Switch Mode (F72, SLC96) - Line Codes: E1:NRZ,CMI,AMI,HDB3 T1:NRZ,CMI,AMI,B8ZS |
| Call Features | - Flexible Route Methods PSTN-PSTN, PSTN-IP, IP-PSTN Intelligent Routing Rules Call Routing base on Time Call Routing base on Caller/Called Prefixes 256 Route Rules for each Direction Caller and Called Number Manipulation |
| Voice Capabilities | Codecs: G.711a/μ law,G.723.1, G.729A/B, iLBC 13k/15k,AMR Silence Suppression Comfort Noise Voice Activity Detection Echo Cancellation (G.168), with up to128ms Adaptive Dynamic Buffer Voice ,Fax Gain Control FAX:T.38 and Pass-through Support Modem/POS DTMF Mode: RFC2833/SIP Info/In-band Clear Channel/Clear Mode |
| VoIP Protocol | SIP v2.0 (UDP/TCP), RFC3261 SDP, RTP(RFC2833), RFC3262, 3263, 3264, 3265, 3515, 2976, 3311 RTP/RTCP, RFC2198, 1889 SIP TLS/SRTP SIP-T, RFC3372, RFC3204, RFC3398 SIP Trunk Work Mode :Peer/Access SIP/IMS Registration : with up to 256 SIP Accounts NAT: Dynamic NAT, Rport |
| Environmental | 1+1 Redundancy Power Supply Input 100-240VAC, 50-60 Hz Power Consumption:15W Operating Temperature:0 ℃ ~ 45 ℃ Storage Temperature: -20 ℃ ~80 ℃ Humidity:10%-90% Non-Condensing Dimensions(W/D/H): 436*300*44.5mm(1U) Unit Weight: 2.0kg Compliance: CE, FCC |
| Software Features | Local/Transparent Ring Back Tone Overlapping Dialing Dialing Rules, with up to 2000 PSTN group by E1 port or E1 Timeslot IP Trunk Group Configuration Voice Codecs Group Caller and Called Number White Lists Caller and Called Number Black Lists Access Rule Lists IP Trunk Priority |
| Maintenance | Web GUI Configuration Data Backup/Restore PSTN Call Statistics SIP Trunk Call Statistics Firmware Upgrade via TFTP/Web SNMP v1/v2/v3 Network Capture Syslog: Debug, Info, Error, Warning , Notice Call History Records via Syslog NTP Synchronization Centralized Management System |
- Bảo hành: 12 tháng.
