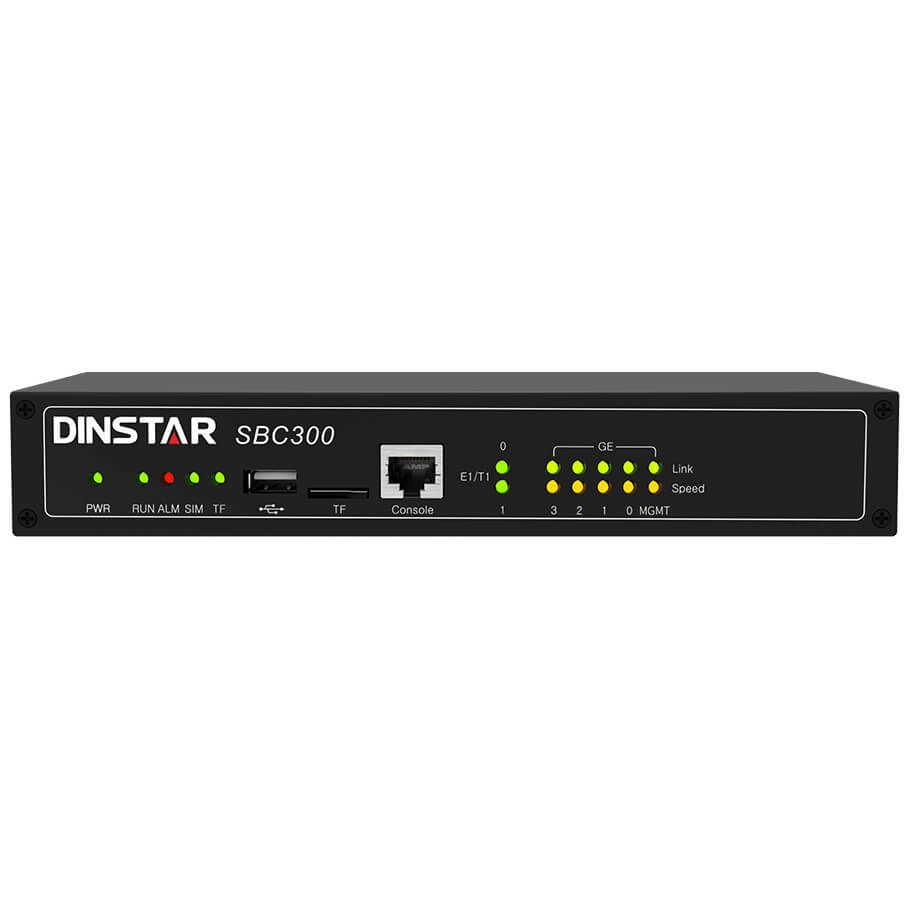

Session Border Controller Dinstar SBC300-05
- Supports up to 5 SIP sessions and 5 transcoding sessions.
- Support WebRTC2SIP to turn WebRTC client into a phone with audio capability.
- SIP trunks & flexible routing rules for accessing IMS.
- Embedded VoIP firewall, prevention of DoS and DDoS attacks.
- Bandwidth limitation and dynamic white list & black list.
- QoS, static route, NAT traversal.
- Import & export of remote upgrade and configuration data.
- User-friendly web interface, multiple management ways
Specifications
| Physical Interfaces | 4 x 10/100/1000M Base-T Ethernet ports 1 x 10/100/1000M Base-T (Admin) 1x USB 1x TF Card Slot Serial Console 1x RS232, 115200bps, RJ45 |
| Media Capabilities | Voice, FAX support Codecs: G.729, G.723, G.711, iLBC,AMR, OPUS RTP Transcoding Pass-through fax No RTP detection One-way audio detection RTP/RTCP,SRTP RTCP statistics reports DTMF: RFC2833, SIP Info, INBAND Silence Suppression Comfort Noise Voice Activity Detection Echo Cancellation Adaptive Dynamic Buffer |
| Environmental | Power Supply: DC 12V Power Consumption: 10W Operating Temperature. 0 ℃ ~ 45 ℃ Storage Temperature: -20 ℃ ~80 ℃ Humidity: 10%-90% Non-Condensing Dimensions (W/D/H): 227×147×39mm Unit Weight: 1.5 kg |
| Capabilities | Concurrent Calls: Supports up to 5 SIP sessions Transcoding: Supports up to 5 transcoding calls Registrations: Maximum SIP registrations: 1000 CPS for Registration: 20 Registration per second SIP Trunks: Unlimited SIP Trunks |
| Security | Prevention of DoS and DDoS attacks Control of Access Policies Policy-based anti-attacks Call Security with TLS,SRTP White List & Black List Access Rule List Embedded VoIP Firewall |
| Call Control | Dynamic load balancing and call routing Flexible Routing Engine Call routing base on prefixes Call routing base on caller / called number regular express Call routing base on time profile Call routing base on SIP URI Call routing base on SIP method Call routing base on endpoint Caller/ Called number Manipulation |
| VoIP | SIP 2.0 compliant, UDP, TCP, TLS SIP trunk (Peer to peer) SIP trunk (Access) SIP Registrations B2BUA (Back-to-Back User Agent) SIP Request rate limiting SIP registration rate limiting SIP registration scan attack detection SIP call scan attack detection SIP anti-attack SIP Header manipulation SIP malformed packet protection Multiple Soft-switches supported QoS (ToS, DSCP) NAT Traversal |
| Maintenance | Web-bases GUI for Configurations Configuration Restore/Backup HTTP Firmware Upgrade CDR Report and Export Ping and Tracert Network Capture System log Statistics and Reports Multiple language support Centralized management system Remote Web and Telnet |
- Bảo hành: 12 tháng.
