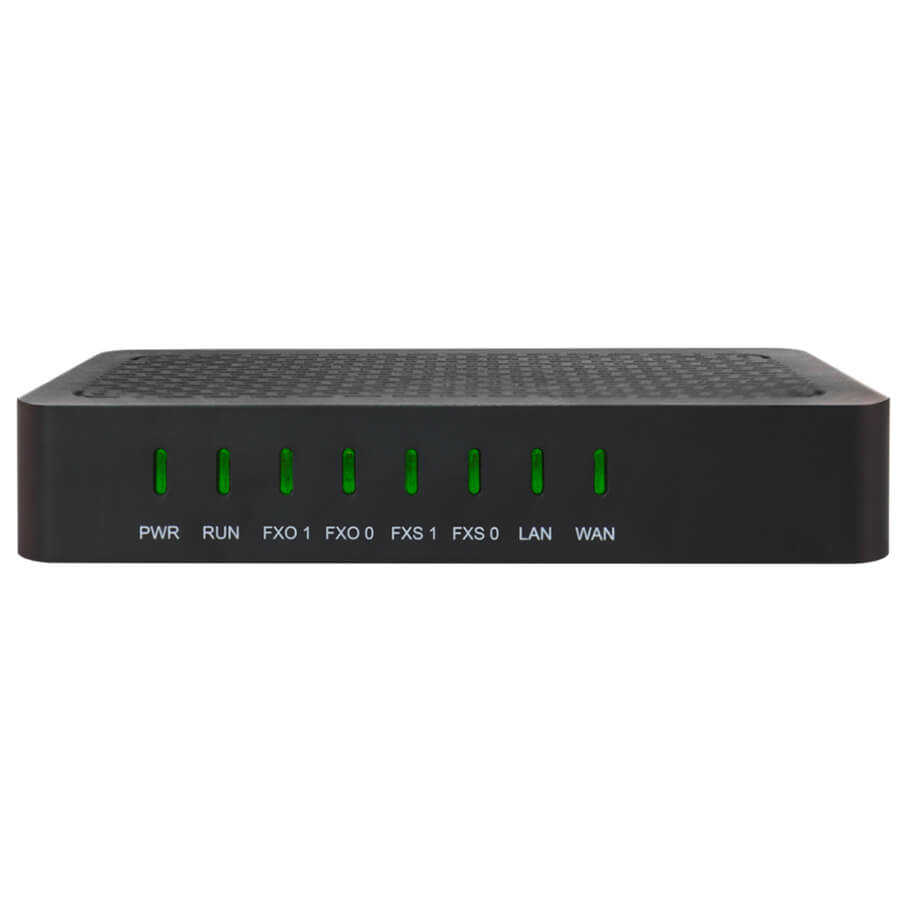

Hybrid Analog VoIP Gateway Dinstar DAG1000-2S2O
- 2 FXS Port(s) and 2 FXO Port(s).
- SNMP and TR069.
- Power and network failure life line.
- Supports call detection and reverse polarity detection.
- Multiple codecs: G.711, G.729, G.723, G.726, AMR.
- Fully compatible with leading IMS/NGN, SIP-based IP telephony system.
- Supports connecting with various Open Source and Commercial IPPBX platforms.
Đặc tính kỹ thuật
| Physical Interfaces | • Phone Interfaces: 2 FXS and 2 FXO, RJ-11 • Ethernet Interfaces: 1* LAN, 10/100Mbps, RJ45 1* WAN, 10/100Mbps, RJ45 |
| FXS | • Connector: RJ11 • Dial Mode: DTMF and Pulse • Pulse: 10 and 20 PPS • Caller ID: DTMF/FSK CLI Presentation • Reversed Polarity |
| FXO | • Connector: RJ11 • Pulse: 10 and 20 PPS • Caller ID: FSK, DTMF • Polarity Reversal • Busy Tone Detection • No Current Detection • Automatic Impedance Matching • Dial Mode: DTMF/Pulse • Dial Mode: Primary Dial/ Secondary dial • Call Detection: Bellcore Type 1&2, ETSI, DTMF |
| Software Features | • Port Group • Web ACL • Telnet ACL • Action URL • Digitmap • Speed Dial • Routing Rules based Prefixes • Caller/Called Number Manipulation |
| VoIP | • Protocol: SIP v2.0 (UDP/TCP), RFC3261 SDP, RTP(RFC2833), RFC3262, RFC3263, RFC 3264, RFC3265, RFC3515, RFC2976, RFC3311 • SIP Trunk • SIP TLS/SRTP • RTP/RTCP, RFC2198, 1889 • RFC4028 Session Timer • RFC2806 TEL URI • RFC3581 NAT, rport • Outbound Proxy • DNS SRV/ A Query/NATPR Query • Early Media/Early Answer • NAT: STUN, Static/Dynamic NAT |
| Voice & FAX | • Modem/POS • T.38/Pass-through • Silence Suppression • VLAN 802.1P/802.1Q • Layer3 QoS and DiffServ • Programmable Gain Control • Comfort Noise Generation(CNG) • Voice Activity Detection(VAD) • Adaptive (Dynamic) Jitter Buffer • Echo Cancellation(G.168), with up to 128ms • Audio Codec: G.711A/U law, G.723.1, G.729A/B, • DTMF mode: Signal/RFC2833/INBAND |
| Network | • Static/Dynamic IP • PPPoE • Action URL • DHCP Client • IPv4, TCP, UDP, TFTP, FTP, ARP, RARP, Ping, NTP, SNTP, HTTP/HTTPS, DNS • Ping / Tracert • DHCP Option 66,120,121 • OpenVPN |
| Maintenance | • CDR • Syslog • Web/Telnet • SNMP v1/v2/v3 • TR069, TR181 • Auto Provisioning • Configuration Backup/Restore • Firmware Upgrade via Web • Network Capture • NTP/Daylight Saving Time • IVR local Maintenance • Cloud-based Management |
| Environmental | • Power supply: Input 100~240VAC Output 12VDC, 2A • Power consumption(W): 10W • Operator Temperature: 0 ℃ ~ 45 ℃ • Storage Temperature: -20 ℃ ~80 ℃ • Humidity: 10%-90% no condensation • Dimensions(W/D/H): 195*135*35mm • Weight: 0.6kg • Compliance: CE, FCC |
- Bảo hành: 12 tháng.
