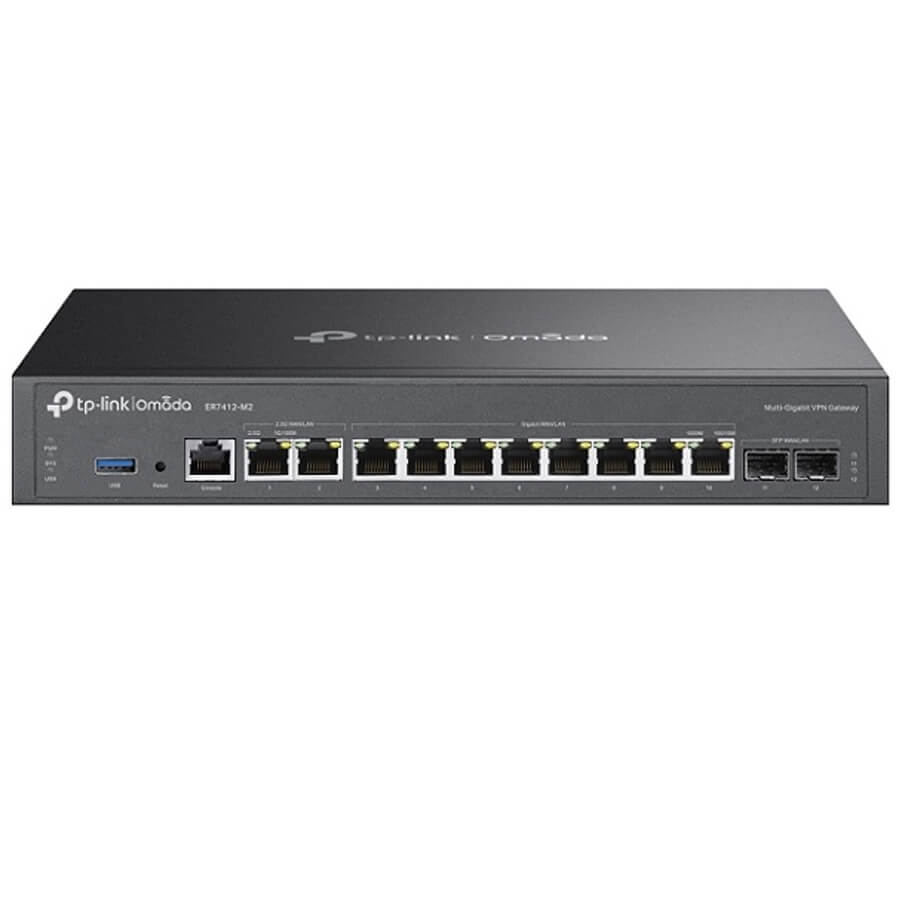

Omada Multi-Gigabit VPN Router TP-LINK ER7412-M2
- Bộ xử lý mạnh mẽ: CPU 4 nhân tốc độ 2.0 GHz, đảm bảo hiệu suất cao cho các tác vụ mạng phức tạp.
- Cổng kết nối:
o 2 cổng 2.5G RJ45 WAN/LAN: Đáp ứng nhu cầu băng thông cao.
o 10 cổng Gigabit WAN/LAN: Gồm 2 cổng SFP và 8 cổng RJ45 để kết nối linh hoạt với các thiết bị khác.
o 1 cổng USB 3.0: Hỗ trợ lưu trữ qua USB hoặc sử dụng dongle LTE để sao lưu kết nối mạng.
- Cân bằng tải (Load Balancing): Hỗ trợ lên đến 11 cổng WAN, tăng hiệu quả sử dụng nhiều đường truyền internet cùng lúc.
- Hệ thống VPN bảo mật cao: Hỗ trợ các giao thức VPN phổ biến như SSL, IPSec, GRE, WireGuard, PPTP, L2TP, và OpenVPN, phù hợp cho các doanh nghiệp yêu cầu kết nối từ xa an toàn.
- Quản lý tập trung qua đám mây: Dễ dàng giám sát và cấu hình qua giao diện web hoặc ứng dụng Omada.
- Tăng cường bảo mật:
o Bảo vệ khỏi tấn công DoS/DDoS.
o Lọc IP/MAC/URL: Giúp kiểm soát truy cập và ngăn chặn các kết nối không mong muốn.
o DPI và IPS/IDS: Phân tích gói dữ liệu và phát hiện/ ngăn chặn xâm nhập bất hợp pháp.
Thông số kỹ thuật
| SECURITY | |
| Access Control | Source/Destination IP-Based ACL Stateful ACL IPv4/IPv6 ACL Location Based ACL |
| Filtering | WEB Group Filtering URL Filtering Web Security |
| ARP Inspection | Sending GARP Packets ARP Scanning IP-MAC Binding |
| Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| HARDWARE FEATURES | |
| Interface | • 1× 2.5G RJ45 WAN/LAN Port • 1× 2.5G RJ45 WAN/LAN Port • 2× Gigabit SFP WAN/LAN Ports • 8× Gigabit RJ45 WAN/LAN Ports • 1× RJ45 Console Port • 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle) |
| Button | Reset Button |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Flash | 128MB NAND |
| DRAM | 1 GB DDR4 |
| Dimensions (W x D x H) | 11.6×7.1×1.7 in (294×180×44 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop, Rackmountable |
| Max Power Consumption | 18.5W (With USB 3.0 connected) |
| PERFORMANCE | |
| DPI Throughput | 2.2Gbps |
| WireGuard VPN | 771.6 Mbps |
| Concurrent Session | 1,000,000 |
| New Sessions /Second | 7 |
| OpenVPN | UDP: 266.2 Mbps |
| L2TP VPN Throughput | Unencrypted: 2724.5 Mbps Encrypted: 1018.4Mbps |
| PPTP VPN Throughput | Unencrypted: 3035 Mbps Encrypted: 534.6 Mbps |
| SSL VPN Throughput | 263.1 Mbps |
| 66 Byte Packet forwarding rate | 1833 Mbps / 1835 Mbps |
| 1,518 Byte Packet forwarding rate | 2461 Mbps / 2461 Mbps |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static IP/Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP • Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS | |
| Advanced Routing | • Static Routing • Policy Routing • RIP (available in Standalone Mode) • OSPF (available in Standalone Mode) |
| Bandwidth Control | IP/Port-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-based Session Limit |
| AUTHENTICATION | |
| Web Authentication | No Authentication Simple Password* Hotspot (Local User/Voucher*/SMS*/Radius*) External Radius Server External Portal Server* LDAP |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)§ • NTP Synchronize • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| OTHERS | |
| System Requirements | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% non-condensing |
- Bảo hành: 5 năm.
