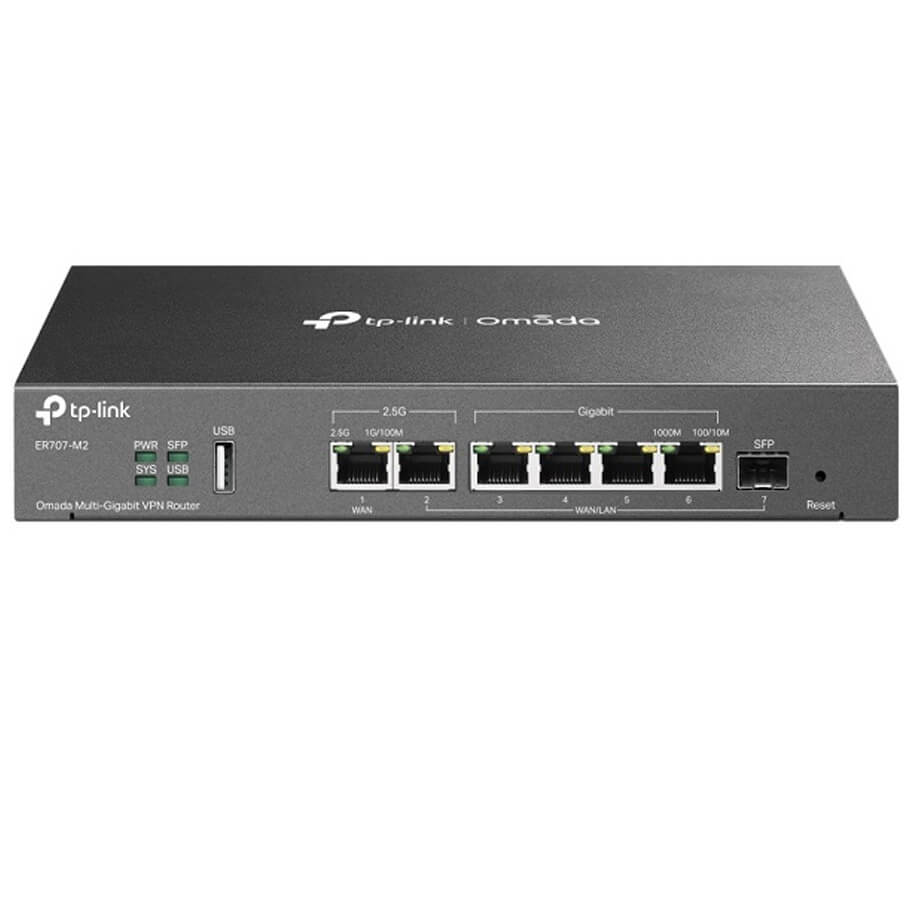

Omada Multi-Gigabit VPN Router TP-LINK ER707-M2
- Hai cổng 2.5G: 1 cổng 2.5G WAN và 1 cổng 2.5G WAN/LAN, cung cấp kết nối tốc độ cao để đáp ứng nhu cầu băng thông lớn.
- Hỗ trợ tối đa 6 cổng WAN: Gồm cổng 2.5G RJ45, Gigabit Fiber, và Gigabit RJ45, kết hợp với tính năng cân bằng tải (load balancing) để tối ưu hóa sử dụng nhiều đường truyền internet.
- Hệ thống VPN bảo mật cao: Hỗ trợ các giao thức VPN chuẩn doanh nghiệp như SSL, IPSec, GRE, PPTP, L2TP, và OpenVPN, phù hợp cho kết nối từ xa giữa các chi nhánh hoặc làm việc tại nhà (WFH).
- Tích hợp hệ thống Omada SDN: Hỗ trợ Zero-Touch Provisioning (ZTP), quản lý tập trung qua đám mây, giám sát thông minh và nhiều tính năng khác.
- Quản lý tập trung: Truy cập qua đám mây hoặc ứng dụng Omada giúp quản lý thiết bị dễ dàng và thuận tiện nhất.
- Tính năng bảo mật toàn diện: Bảo vệ mạng và dữ liệu với các chính sách tường lửa tiên tiến, chống tấn công DoS, lọc IP/MAC/URL, và các chức năng bảo mật khác.
Thông số kỹ thuật
| SECURITY | |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | WEB Group Filtering URL Filtering Web Security |
| ARP Inspection | Sending GARP Packets ARP Scanning IP-MAC Binding |
| Attack Defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| HARDWARE FEATURES | |
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
| Interface | • 1× 2.5G RJ45 WAN/LAN Port • 1× Gigabit SFP WAN/LAN Port • 4× Gigabit RJ45 WAN/LAN Ports • 1× USB 2.0 Port (Supports USB storage, and LTE backup with LTE dongle) |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | 12V/1.5A Adapter |
| Flash | 128MB NAND |
| DRAM | 1 GB DDR4 |
| Dimensions (W x D x H) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop/Wall Mounting |
| PERFORMANCE | |
| IPS Throughput | TCP: 208 Mbps; UDP: 161 Mbps |
| DPI Throughput | TCP: 1823 Mbps; UDP: 1272 Mbps |
| Concurrent Session | 500 |
| New Sessions /Second | 6 |
| NAT (Static IP) | 2365.17 Mbps / 2364.45 Mbps |
| NAT(DHCP) | 2364.45 Mbps / 2366.04 Mbps |
| NAT(PPPoE) | 2347.14 Mbps / 2348.29 Mbps |
| NAT (L2TP) | 1308.86 Mbps / 974.10 Mbps |
| NAT (PPTP) | 1236.27 Mbps / 1280.99 Mbps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 673.3 Mbps • ESP-SHA256-AES256: 650.2 Mbps • ESP-SHA384-AES256: 629.3 Mbps • ESP-SHA512-AES256: 633.8 Mbps |
| L2TP VPN Throughput | Unencrypted: 1243.7 Mbps Encrypted: 561.0 Mbps |
| SSL VPN Throughput | 132.24 Mbps |
| 66 Byte Packet forwarding rate | 1832.69 Mbps / 1741.84 Mbps |
| 1,518 Byte Packet forwarding rate | 2461.18 Mbps / 2457.32 Mbps |
| BASIC FUNCTIONS | |
| WAN Connection Type | • IPv4_Static IP • IPv4_Dynamic IP • IPv4_PPPOE • IPv4_L2TP • IPv4_PPTP • IPv6_PPP • IPv6_DHCPv6 • IPv6_Static IP • IPv6_6in4 • IPv6_Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS | |
| Advanced Routing | • Static Routing • Policy Routing • RIP (only in Standalone Mode) • OSPF (only in Standalone Mode) |
| Bandwidth Control | • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Clients (12) • 60 Tunnels (Shared with L2TP) • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Clients (12) • 60 Tunnels (Shared with PPTP) • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Clients (6) • 66 OpenVPN Tunnels |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password • Hotspot (Local User/Voucher* /SMS*/Radius*) • External Radius Server • External Portal Server • LDAP |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning) |
| OTHERS | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% non-condensing |
- Bảo hành: 5 năm.
