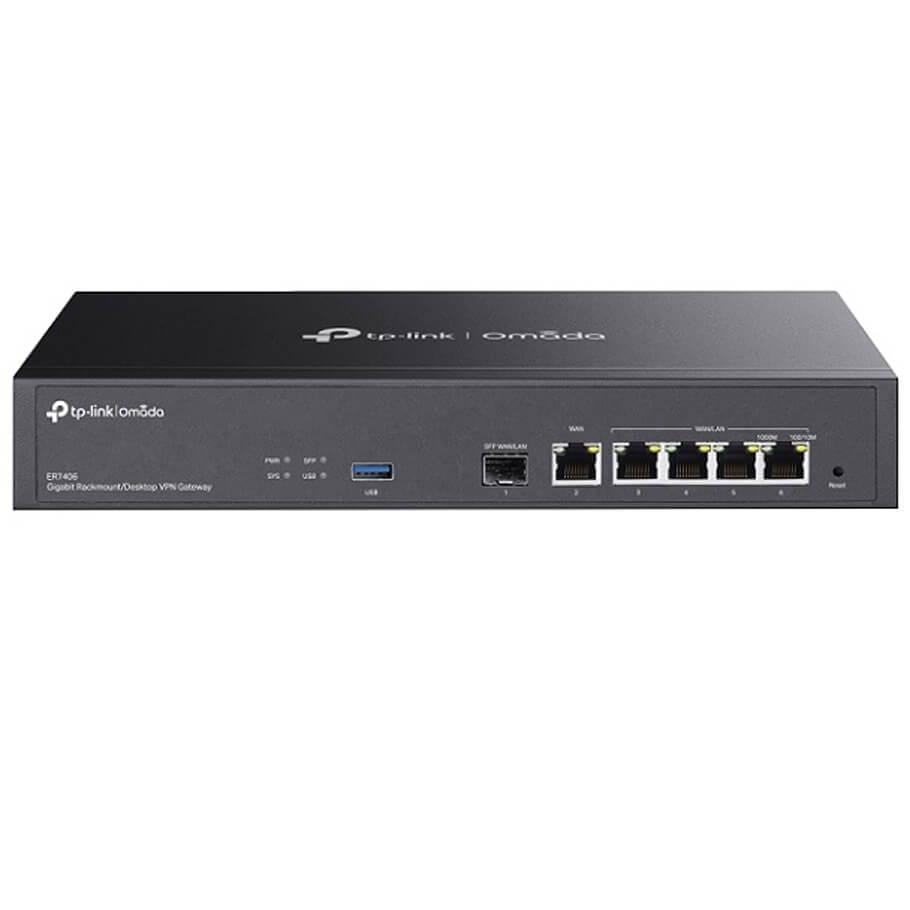

Omada Gigabit Rackmount/Desktop VPN Router TP-LINK ER7406
- 1 cổng Gigabit SFP WAN/LAN: Hỗ trợ kết nối linh hoạt giữa WAN và LAN qua cổng quang.
- 5 cổng Gigabit RJ45: Bao gồm 1 cổng WAN và 4 cổng WAN/LAN để kết nối các thiết bị mạng tốc độ cao.
- 1 cổng USB 3.0: Hỗ trợ lưu trữ qua USB hoặc dự phòng LTE bằng thiết bị LTE dongle.
- Cân bằng tải trên tối đa 5 cổng WAN: Tăng hiệu suất sử dụng cho các kết nối internet đa tuyến.
- Hệ thống VPN bảo mật cao: Tích hợp các giao thức như SSL, IPSec, GRE, WireGuard, PPTP, L2TP, và OpenVPN, đảm bảo kết nối từ xa an toàn.
- Quản lý tập trung: Truy cập quản lý dễ dàng qua web hoặc ứng dụng Omada trên đám mây.
- Tính năng bảo mật nâng cao: Bao gồm phòng chống tấn công DoS, lọc IP/MAC/URL, phân tích dữ liệu DPI, và hệ thống phát hiện/ngăn chặn xâm nhập IPS/IDS.
- Thiết kế linh hoạt: Có thể lắp đặt dạng rackmount hoặc để bàn.
Thông số kỹ thuật
| SECURITY | |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • WEB Group Filtering • URL Filtering • Web Security |
| ARP Inspection | • Sending GARP Packets • ARP Scanning • IP-MAC Binding |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
| Interface | 1 Gigabit SFP WAN/LAN Port 1 Gigabit WAN Port 4 Gigabit LAN/WAN Ports 1 USB 3.0 Port (supports USB LTE dongle and USB storage) |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | 100-240VAC, 50/60Hz |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| Dimensions (W x D x H) | 11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop, Rackmountable |
| PERFORMANCE | |
| IPS Throughput | TCP: 229 Mbps; UDP: 188 Mbps |
| DPI Throughput | TCP: 933 Mbps; UDP: 927 Mbps |
| GRE | Unencrypted: 611.9 Mbps Encrypted: 325.0 Mbps |
| WireGuard VPN | 341.3 Mbps |
| Concurrent Session | 150 |
| New Sessions /Second | 5,3 |
| NAT (Static IP) | 945.3 Mbps / 940.5 Mbps |
| NAT(DHCP) | 939.6 Mbps / 940.9 Mbps |
| NAT(PPPoE) | 943.6 Mbps / 940.9 Mbps |
| NAT (L2TP) | 880.1 Mbps / 859.0 Mbps |
| NAT (PPTP) | 855.0 Mbps / 907.2 Mbps |
| OpenVPN | 139.1 Mbps |
| L2TP VPN Throughput | • Unencrypted: 977.4 Mbps • Encrypted: 334.6 Mbps |
| PPTP VPN Throughput | • Unencrypted: 1064.1 Mbps • Encrypted: 206.8 Mbps |
| SSL VPN Throughput | 131.6 Mbps |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static IP • Dynamic IP • PPPoE(supports MRU Configuration) • PPTP • L2TP |
| MAC Clone | Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode) |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| IPv6 | StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS | |
| Advanced Routing | • Static Routing • Policy Routing • RIP (available in Standalone Mode) • OSPF (available in Standalone Mode) |
| Bandwidth Control | IP-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-based Session Limit |
| VPN | |
| GRE | √ (Only in Standalone Mode) |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10) • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10)** • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5) • 55 OpenVPN Tunnels • 'Certificate + Account' Mode • Full Mode |
| MANAGEMENT | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| OTHERS | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0 °C to 50 °C (32 °F to 122°F) Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing |
- Bảo hành: 5 năm.
