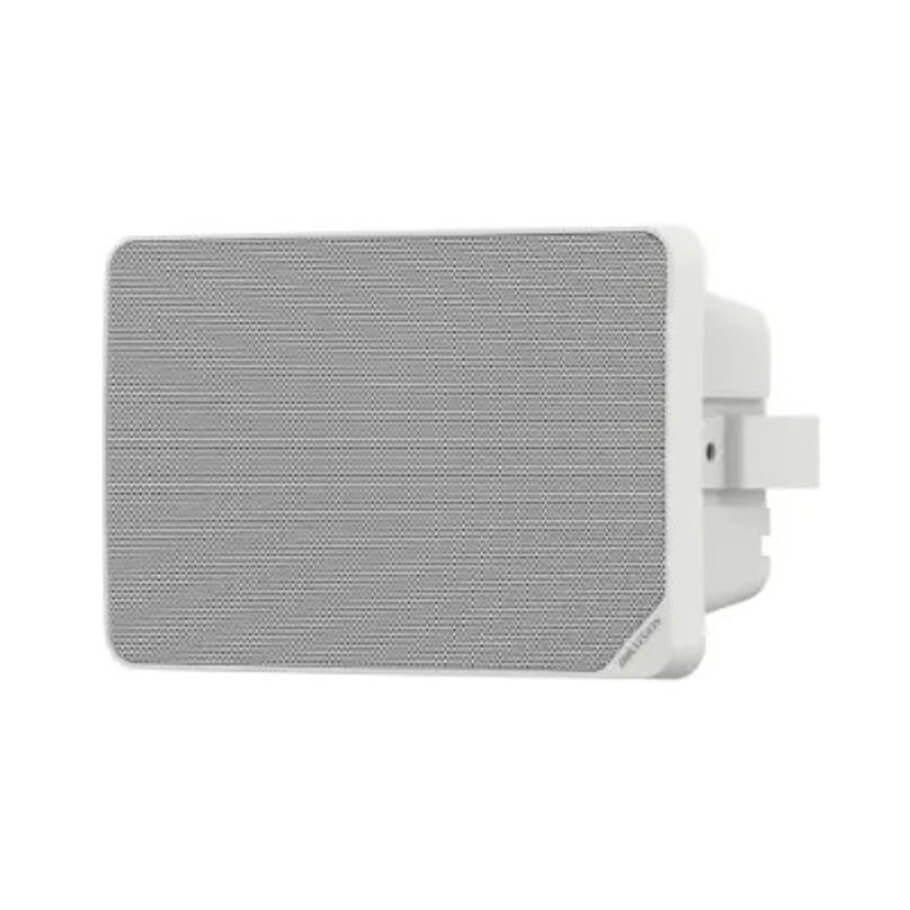

Loa Cabinet Analog 20W HIKVISION DS-QAE0120G1R
- Công suất (100V): 5W/10W/15W/20W.
- Tần số đáp ứng: 130Hz đến 17.5kHz.
- Trở kháng: 8Ω.
- Độ nhạy loa: 90dB.
- Áp suất âm thanh tối đa: 103 dBSPL.
- Hỗ trợ lắp đặt ngang hoặc dọc.
Thông số kỹ thuật
| Speaker | |
| Rated Power | 70V: 5 W/10 W/15 W/20 W 100V: 5 W/10 W/15 W/20 W |
| Impedance | 8 Ω |
| Sensitivity(1 m, 1 W) | 90 dB ± 3dB |
| Max. Acoustic Pressure | 103 dBSPL |
| Direction | All directions |
| Frequency Response | 130 Hz to 17.5 kHz |
| Speaker Unit | 5.25 inch × 1 |
| Interface | |
| Audio In | Fixed pressure in 100 V/Fixed pressure in 70 V/Fixed resistance input 8 Ω × 1 |
| General | |
| Material | Main body&Front cover: plastic, bracket: metal |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Operating Humidity | ＜90% (No condensation) |
| Dimension | 268.4 mm × 180.4 mm × 125.12 mm |
| Weight | Approx. 1.5kg |
| Color | White |
| Packing List | Device × 1 U-shaped bracket × 1 Screw pack × 1 Installation sticker × 1 Regulatory Compliance and Safety Information × 1 |
- Bảo hành: 24 tháng.
