Loa Cabinet thông báo IP 20W HIKVISION DS-QAZ1120G1R-B
- Trở kháng: 8Ω.
- Tích hợp 2 micro độ lợi: -42 dBV/Pa.
- Độ nhạy loa: 90dB.
- Áp suất âm thanh tối đa: 103dBSPL.
- Tích hợp thẻ nhớ 64GB EMMC (Audio file storage is 55GB).
- Hỗ trợ âm thanh đàm thoại 2 chiều.
- Hỗ trợ NTP Timing, Broadcast.
- Hỗ trợ phần mềm: Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone.
- Nguồn cấp: 24V DC/2.5A.
- Kích thước: 268.4 × 180.4 × 125.12 mm.

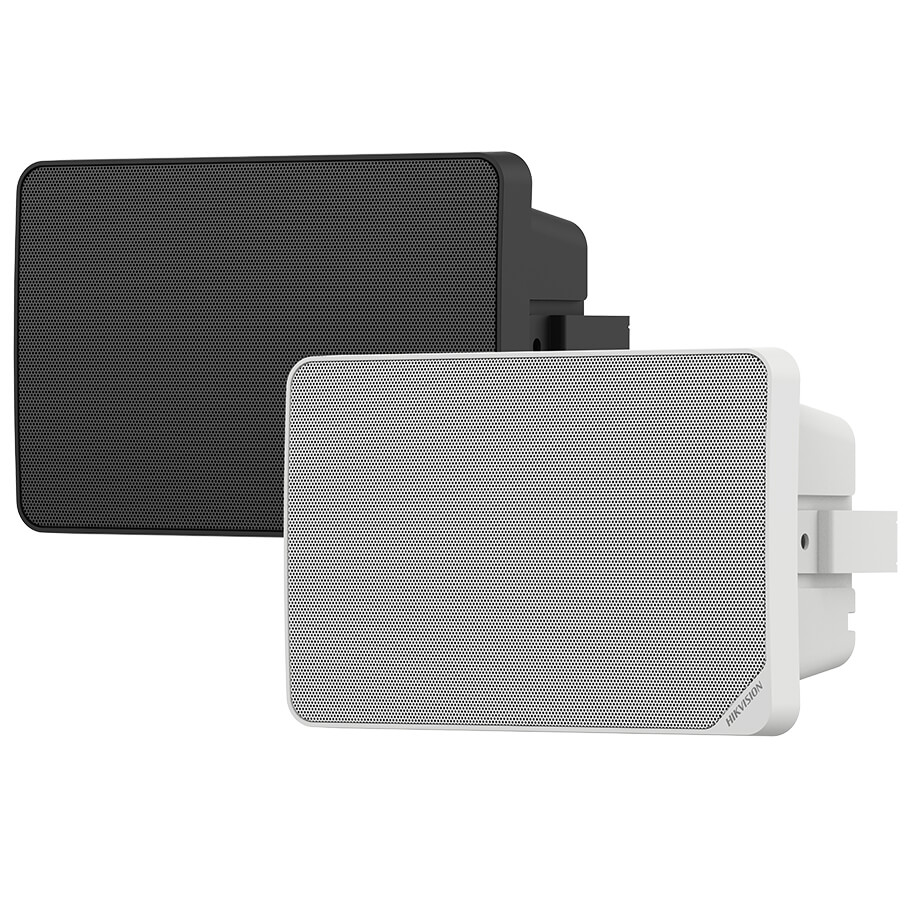

- Màu sắc: Trắng (DS-QAZ1120G1R-B)/ Đen (DS-QAZ1120G1R-B/Black).
Thông số kỹ thuật
| Microphone | |
| Type | Electret |
| Amount | 2 |
| Frequency Response | 100 Hz to 18 kHz |
| Sensitivity | -42 dBV/Pa |
| Sampling Rate | 48 kHz |
| Quantization Bits | 16 bit |
| Speaker | |
| Rated Power | 20 W |
| Impedance | 8 Ω |
| Sensitivity(1 m, 1 W) | 90 dB |
| Max. Acoustic Pressure | 103 dBSPL |
| Direction | All directions |
| Frequency Response | 130 Hz to 17.5 kHz |
| SNR | 83 dB |
| Speaker Unit | 5.25 inch × 1 |
| Function | |
| Audio Algorithm | AEC, AGC, ANS, DRC |
| Audio Bit Rate | G.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps) |
| Audio File Format | WAV, MP3, MP2, AAC |
| NTP Timing | Support |
| Broadcast | Regular broadcast, live broadcast, emergency broadcast |
| Two-Way Audio | Support |
| Speech Synthesis | English, Spanish, Japanese, Thai |
| Network | |
| Network Protocol | IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP |
| Client | Hik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone |
| Communication | |
| Communication Method | Support wired network and bluetooth communication |
| Interface | |
| Ethernet Interface | RJ45 10 M/100 M Adaptive Ethernet port × 1 |
| Local Storage | Built-in 64 GB EMMC (Audio file storage is 55 GB.) |
| API | ISAPI, ISUP, SIP |
| Audio In | 3.5 mm audio interface × 1 |
| Audio Out | Fixed resistance output × 1, phoenix terminal, 8 Ω |
| LED Indicator | Solid green: normal working Flashing green: intercom in progress Solid red: start or network disconnection Flashing red: upgrading |
| Reset | Support |
| Volume Knob | Support |
| General | |
| Power | 24 VDC/2.5 A |
| Material | Main body&Front cover：plastic, bracket: metal |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Operating Humidity | ＜90% (No condensation) |
| Language | 5 languages: English, French, Spanish, German, Italian |
| Dimension | 268.4 mm × 180.4 mm × 125.12 mm |
| Weight | Approx. 2kg |
| Approval | |
| RF | CE-RED: EN 301489-1 V2.2.3 (BT or 2.4G), EN 301489-17 V3.2.4 (BT or 2.4G), EN 300 328 V2.2.2 (BT or 2.4G), EN62311 2020(BT or 2.4G) RCM: EN 300 328 V2.2.2 (BT or 2.4G), AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note IC ID: RSS-247(BT or 2.4G) ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018 |
| EMC | CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 |
| Safety | CB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017 |
| Environment | CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006 |
- Bảo hành: 24 tháng.
