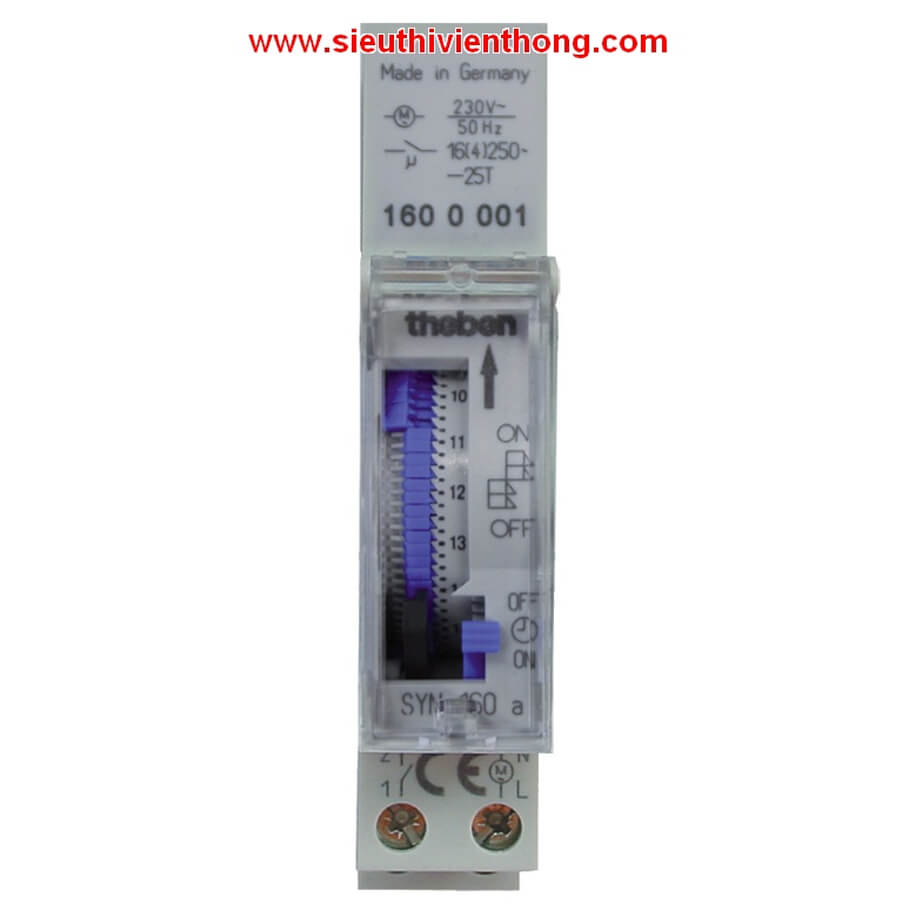

Công tắc hẹn giờ dạng cơ THEBEN SYN 160 a
- Analogue time switch
- 1 channel
- Daily program
- Without power reserve
- 96 switching segments
- Synchronised with mains
- Shortest switching time: 15 minutes
- Screw terminals
- Manual switch with 3 positions: Permanent ON/AUTO/continuous OFF
- Switching status display
Specifications
|
Operating voltage |
230 V AC |
|
Frequency |
50 Hz |
|
Number of channels |
1 |
|
Program |
Daily program |
|
Width |
1 modules |
|
Installation type |
DIN rail |
|
Type of connection |
Screw terminals |
|
Drive |
Synchronous motor |
|
Program |
Daily program |
|
Switching capacity at 250 V AC, cos φ = 1 |
16 A |
|
Switching capacity at 250 V AC, cos φ = 0,6 |
4:00 AM |
|
Incandescent/halogen lamp load |
1000 W |
|
Shortest switching times |
15 min |
|
Programmable every |
15 min |
|
Time accuracy |
Synchronised with mains |
|
Type of contact |
NO contact |
|
Switching output |
Potential-free and phase-independent |
|
Number of switching segments |
96 |
|
Stand-by consumption |
0,9 W |
|
Test approval |
VDE |
|
Housing and insulation material |
High-temperature resistant, self-extinguishing thermoplastic |
|
Type of protection |
IP 20 |
|
Protection class |
II as per EN 60 730-1 |
|
Ambient temperature |
-25 °C ...+50 °C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
