Công tắc cảm ứng chuyển động THEBEN theMova S360-100 DE WH

Trang Chủ >> Báo cháy-Báo trộm >> Công tắc cảm ứng THEBEN >> Công tắc cảm ứng chuyển động THEBEN theMova S360-100 DE WH
Mã số:13130076

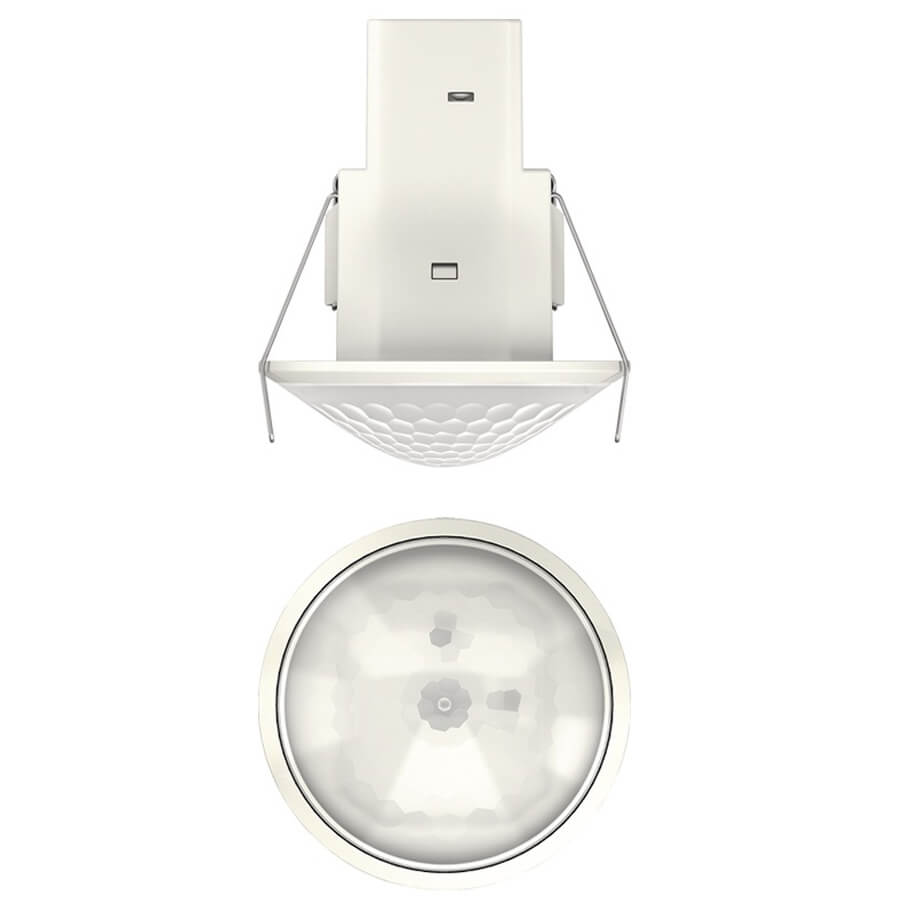

Công tắc cảm ứng chuyển động THEBEN theMova S360-100 DE WH

Công tắc cảm ứng chuyển động THEBEN theMova S360-100 DE WH

- Passive infra-red motion detector for ceiling installation.

- Circular detection area 360º, up to Ø9m (64m²).

- Automatic motion and brightness-dependent control for lighting.

- Mixed light measurement.

- Channel A light: Relay, 230 V.

- Operation as fully automatic device.

- Brightness switching value configurable, teach-in function.

- Pulse function for staircase light time switch.

- Time delay configurable.

- Detection sensitivity configurable.

- Test mode for checking function and detection area.

- Ready for immediate use due to factory presetting (Brightness switching value 300 lux, Time delay 10 min.)

- One of these optional remote controls is required for changing the values and attitudes:

· Management remote control SendoPro.

· Installation remote control theSenda P.

- Optional user remote control: theSenda S.

Đặc tính kỹ thuật

Model theMova S360-100 DE WH
Operating voltage 230 VAC
Frequency 50Hz
Power consumption ~0,5W
Light measurement Mixed light measurement
Installation type Ceiling installation
Setting range brightness 30 – 3000 lx
Type of contact light Relay 230 V/10 A µ-contact
Lamps Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Installation height 2 – 4 m
Light switch-off delay 10s-60 min
Incandescent/ halogen lamp load 2300W
Compact and flourescent lamps 1150 VA (cos φ = 0,5)
Inrush current max. 400 A/ 200 µs
LED lamp < 2 W 25W
LED lamp 2-8 W 70W
LED lamp > 8 W 80W
Type of connection Spring terminals
Ambient temperature -15ºC … +50ºC
Type of protection IP54 (when fitted)

- Hãng sản xuất THEBEN của Đức.

- Bảo hành: 12 tháng.

Giá: 1.664.000 VND
