0916 287 068 Presence Detector THEBEN thePrema P360 Slave E UP GR
Trang Chủ >>
Báo cháy-Báo trộm >> Công tắc cảm ứng THEBEN >> Presence Detector THEBEN thePrema P360 Slave E UP GR
Mã số:13139802

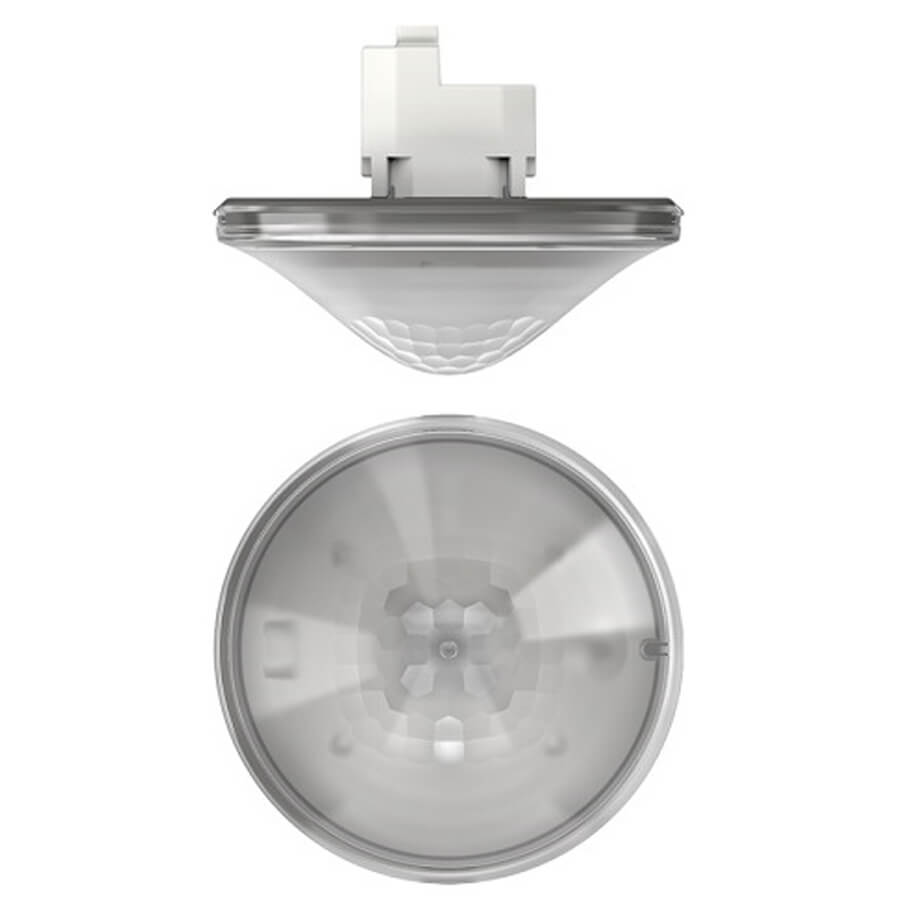

Presence Detector THEBEN thePrema P360 Slave E UP GR
- Passive infra-red presence detector for flush-mounted ceiling installation.
- Square detection area 360°.
- Slave version for thePrema master presence detectors.
- Ready for immediate use due to factory preset.
- Test mode for checking function and detection area.
- Extension of detection area via Master/Slave or Master/Master switching, a maximum of 10 detectors can be switched in parallel with each other.
- Ceiling installation in flush-mounted socket.
- Ceiling installation also possible with surface-mounted frame.
- User remote control theSenda S, management remote control SendoPro (optional).
Đặc tính kỹ thuật
| Operating voltage | 110 – 230 V AC ± 10 % |
| Frequency | 50 – 60 Hz |
| Installation height | 2 – 10 m |
| Minimum height | > 1,7 m |
| Installation type | Ceiling installation |
| Colour | Grey |
| Switching output | Slave |
| Power consumption | ~0.1 W |
| Light measurement | Mixed light measurement |
| Lamps | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Type of connection | Screw terminals |
| Max. cable cross section | max. 2 x 2,5 mm² |
| Size of concealed housing | Ø 55 mm (NIS, PMI) |
| Detection range | 81 m² (9,0 x 9,0 m) |
| Ambient temperature | 0°C ... 50°C |
| Type of protection | IP 40 (when fitted) |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
Giá: Vui lòng gọi
