Công tắc cảm ứng hiện diện THEBEN theRonda P360-101 M UP WH

Trang Chủ >> Báo cháy-Báo trộm >> Công tắc cảm ứng THEBEN >> Công tắc cảm ứng hiện diện THEBEN theRonda P360-101 M UP WH
Mã số:13130103

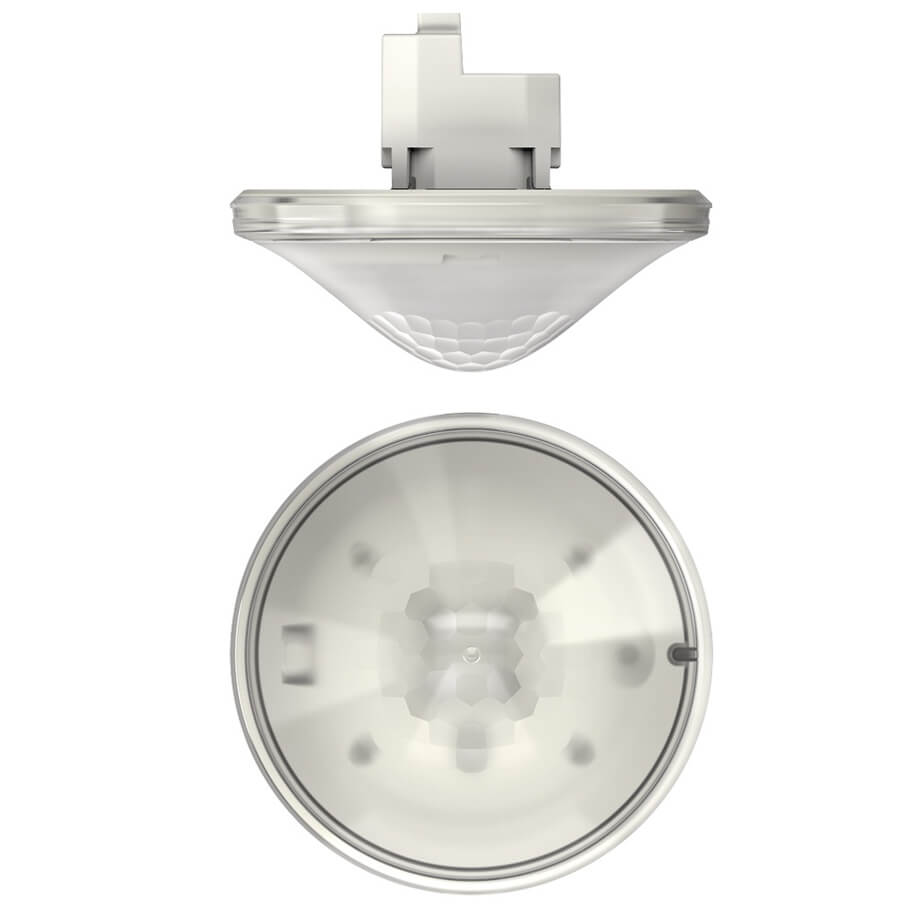

Công tắc cảm ứng hiện diện THEBEN theRonda P360-101 M UP WH

Công tắc cảm ứng hiện diện THEBEN theRonda P360-101 M UP WH

- Passive infrared presence detector for ceiling mounting.

- Round detection area 360°, up to Ø 24 m (452 m²).

- Automatic presence- and brightness-dependent control for lighting and HVAC.

- Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen/incandescent lamps and LEDs.

- Channel A, light: Relay, 230V.

- Choice of fully or semi-automatic operation.

- Adjustable brightness switching value, teach-in function.

- Reduction of switch-off delay time in the event of short presence (brief-presence).

- Connection option for sensors or switches for manual switching with automatic recognition of sensor/switch.

- Pulse function for staircase light time switch.

- Channel H, presence: relay, floating

- e.g. for HVAC control.

- Switch-on delay and switch-off delay configurable.

- Sensitivity adjustable.

- Detection area can be limited using cover clip.

- Ready for immediate use due to factory preset.

- Test mode for checking function and detection area.

- Extension of detection area via Master/Slave or Master/Master switching, a maximum of 10 detectors can be switched in parallel with each other.

- Ceiling installation in flush-mounted socket.

- Ceiling installation also possible with surface-mounted frame.

- User remote control theSenda S, management remote control SendoPro (optional).

Đặc tính kỹ thuật

Model theRonda P360-101 M UP WH
Operating voltage 110 - 230 VAC
Frequency 50 - 60Hz
Installation height 2 – 10 m
Minimum height > 1,7m
Installation type Ceiling installation
Power consumption ~0,15W
Light measurement Mixed light measurement
Setting range brightness 30 – 3000 lx
Light switch-off delay 10s-60 min
Lamps  Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Incandescent/ halogen lamp load 2300W
Compact and flourescent lamps 1150 VA (cos φ = 0,5)
Inrush current max. 800 A / 200 µs
LED lamp < 2 W 60W
LED lamp 2-8 W 180W
LED lamp > 8 W 200W
Switch-on delay presence 0 s – 10 min / Room surveillance
Presence switch-off delay 10 s – 120 min
Switching capacity presence 50 W/50 VA
Type of connection Screw terminals
Max. cable cross section max. 2 x 2,5 mm²
Size of concealed housing Ø 55 mm (NIS, PMI)
Ambient temperature -15°C … +50°C
Type of protection IP54 (when fitted)

- Hãng sản xuất THEBEN của Đức.

- Bảo hành: 12 tháng.


Giá: 7.644.000 VND
