0916 287 068 Bộ đếm giờ THEBEN BZ 145

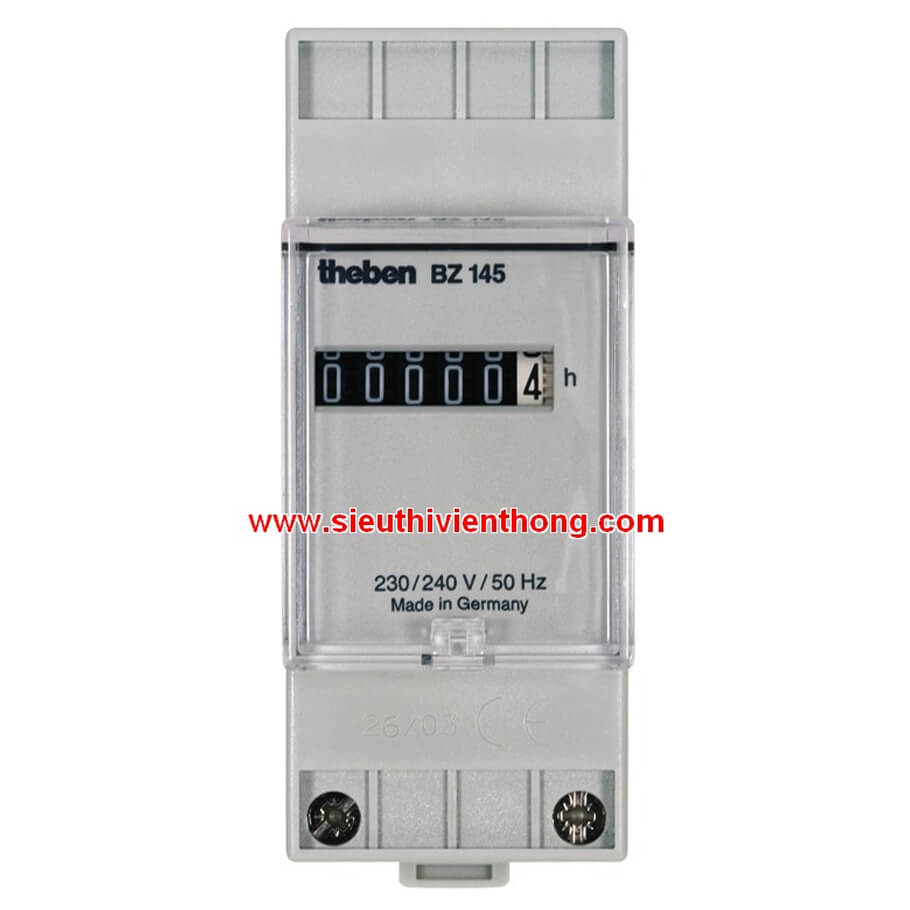

Bộ đếm giờ THEBEN BZ 145
- Hour counter with synchronous motor drive
- Built in distributor device with quick fastening for 35 mm profile rails (DIN EN 60 715)
- Top mounting with additional terminal box cover plate, sealable
- Control panel installation with assembly kit No. 907 0 001
- Contact protection to comply with accident prevention regulation BGV A3
- Captive screw terminals
Specifications
|
Operating voltage |
230 V AC |
|
Frequency |
50 Hz |
|
Width |
2 modules |
|
Installation type |
DIN rail |
|
Size front plate |
35 x 45 mm |
|
Size of Installation section |
35 x 45 mm (depth 60 mm) |
|
Counting range |
99 999,9 hours without reset |
|
Type of protection |
IP 20 |
|
Protection class |
II as per EN 60 335-1 |
|
Ambient temperature |
-10 °C ... +70 °C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
