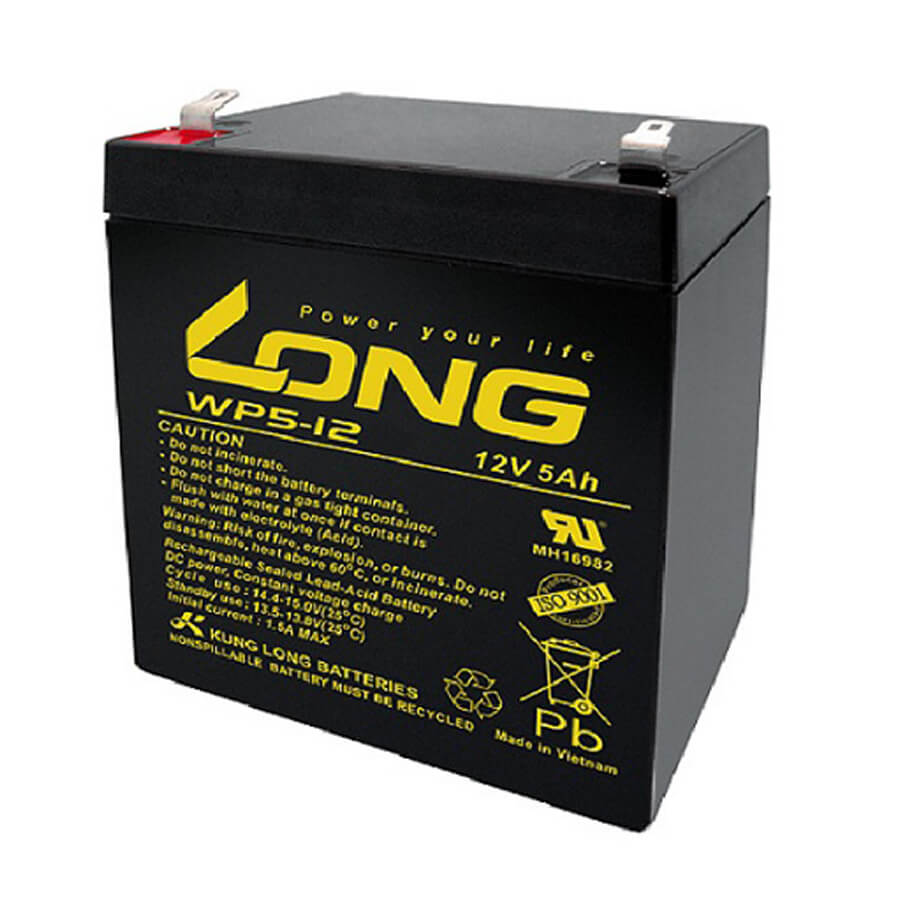

Ắc quy 12V-5Ah Long WP5-12
- Dung lượng: 12V - 5AH.
- Kích thước (L x W x H): 90 x 70 x 101.5±1 mm.
- Trọng lượng: 1.9kg.
Đặc tính kỹ thuật
| Nominal Voltage(V) | 12V |
| Nominal Capacity | 20 hour rate (0.25A to 10.50V): 5Ah 10 hour rate (0.475A to 10.50V): 4.75Ah 5 hour rate (0.85A to 10.20V): 4.25Ah 1 C (5A to 9.60V): 2.833Ah 3 C (15A to 9.60V): 2.0Ah |
| Internal Resistance (at 1KHz) | Approx. 19 mΩ |
| Maximum Discharge Current for | 5 seconds: 75A |
| Charging Methods at 25℃(77℉) | Cycle use: - Charging Voltage: 14.4 to 15.0V - Coefficient -5.0mV/℃/cell Maximum Charging Current: 1.5A Standby use: - Float Charging Voltage 13.5 to 13.8V - Coefficient -3.0mV/℃/cell |
| Operating Temperature Range | Charge: -15℃(5℉) to 40℃(104℉) Discharge: -15℃(5℉) to 50℃(122℉) Storage: -15℃(5℉) to 40℃(104℉) |
| Charge Retention (shelf life) at 20℃(68℉) | 1 month: 92％ 3 month: 90％ 6 month: 80％ |
| Case Material | ABS UL94 HB Option: Flammability resistance of (UL94 V-0) |
| Terminal | F1 or F2 (Faston Tab 187 or 250) |
| Design Life | 3-5 Years |
| Dimensions | Length (L): 90±1 (3.54±0.04) Width (W): 70±1 (2.76±0.04) Height (H): 101.5±1 (4.00±0.04) Overall Height (HT): 107±1 (4.21±0.04) mm(inch) |
| Weight | Approx. 1.9kg |
- Bảo hành: 12 tháng.
