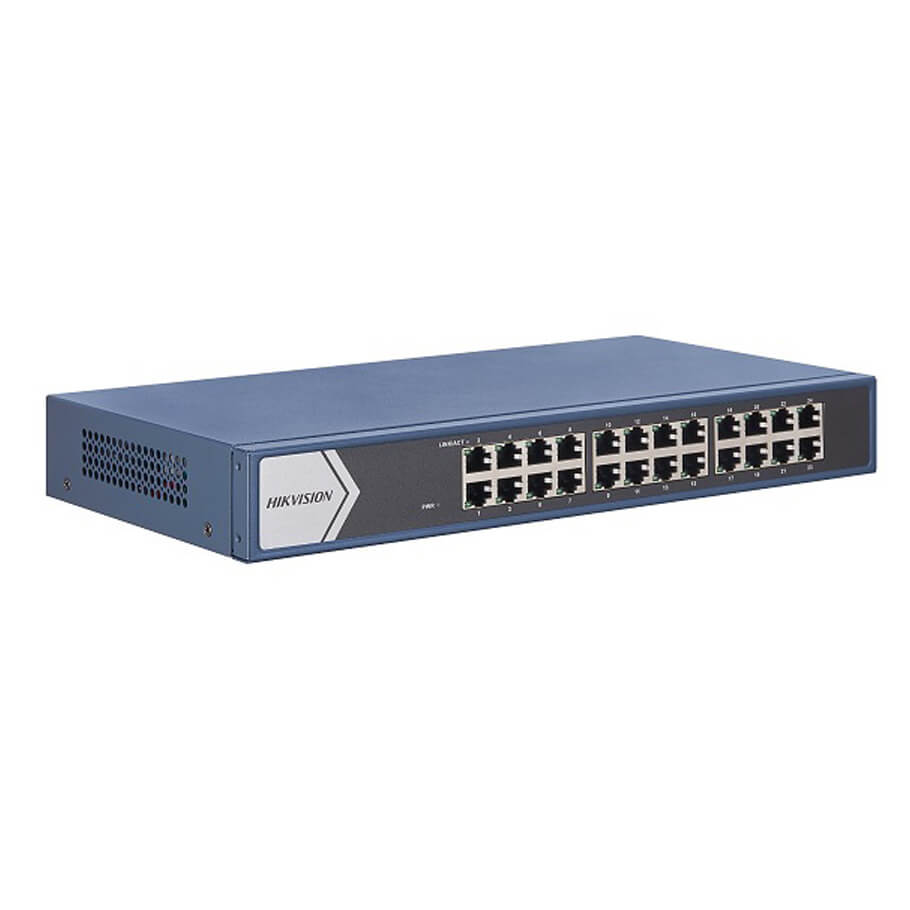

24-Port Gigabit Smart Switch HIKVISION DS-3E1524-EI
- Hỗ trợ 24 cổng RJ45 Gigabit.
- Bảng địa chỉ MAC: 8K.
- Khả năng chuyển mạch: 48Gbps.
- Tốc độ chuyển tiếp gói tin: 35.712Mpps.
- Hỗ trợ tính năng cấu hình quản lý bằng phần mềm: quản lý băng thông, nhật ký, upgrade firmware...
- Hỗ trợ tính năng hiển thị sơ đồ mạng.
- Hỗ trợ tính năng gộp cổng để tăng băng thông: Tối đa 2 nhóm và 4 cổng cho mỗi nhóm.
- Nguồn điện: 220VAC.
Đặc tính kỹ thuật
| Model | DS-3E1524-EI |
| Network parameters | |
| Port number | 24 × gigabit RJ45 ports |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default) |
| MAC address table | 8 K |
| Switching capacity | 48 Gbps |
| Packet forwarding rate | 35.712 Mpps |
| Internal cache | 2 Mbits |
| General | |
| Shell | Metal material, fan-free design |
| Weight | 1.62 kg (3.57 lb) |
| Dimension (L × H × D) | 335 mm × 44.5 mm × 175.8 mm |
| Operating temperature | -10°C to 55°C (14°F to 131°F) |
| Storage temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating humidity | 5% to 95% (no condensation) |
| Relative humidity | 5% to 95% (no condensation) |
| Power supply | 220 VAC, 50/60 Hz, Max. 0.7 A |
| Power source | 18 W |
| Max. power consumption | 13 W |
| Software function | |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN. |
| Device maintenance | Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters |
| Typology display | Support typology display |
| Port configuration | Support rate, flow control, and switch configuration |
| Link aggregation | Support static link aggregation with up to 2 aggregation groups and up to 4 ports in each group |
| Device status alarm | Support the device status alarm |
| Network management | Support client management |
| Port statistics | Support port transmitting/receiving real-time rate statistics, 7-day transmitting/receiving peak rate statistics |
| Approval | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
- Bảo hành: 24 tháng.
