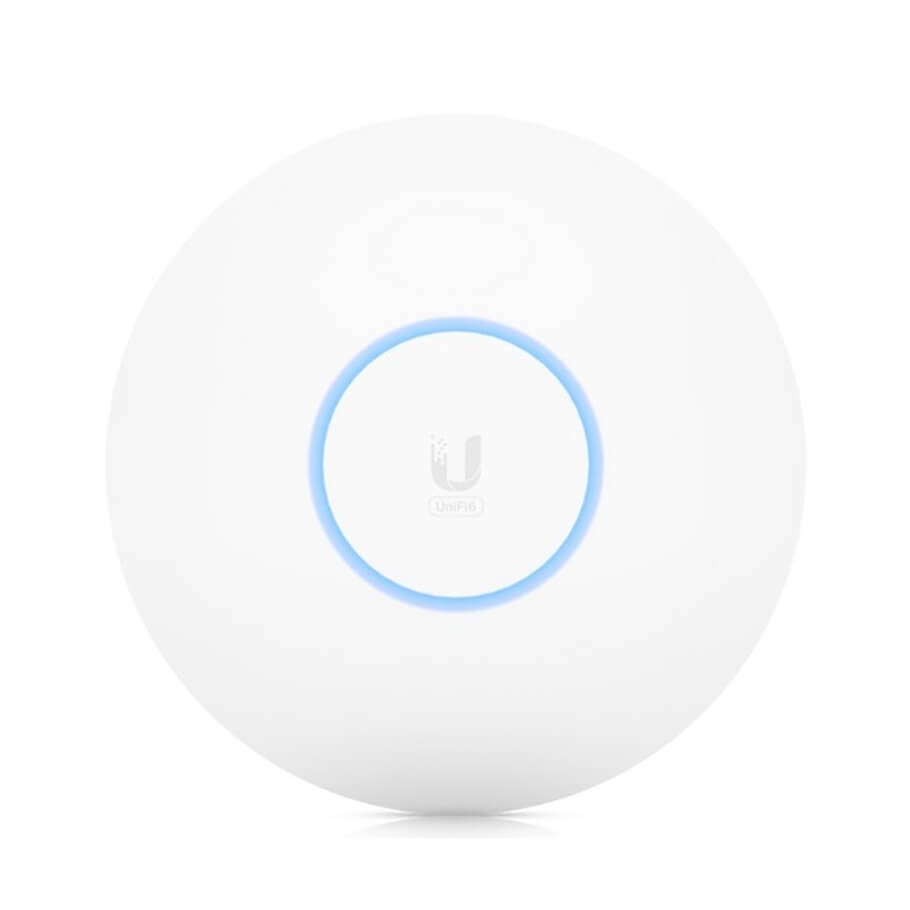

Wifi Access Point UBIQUITI UniFi U6-PRO
- Điểm truy cập WiFi 6 gắn trần hiệu suất cao, được thiết kế cho các văn phòng lớn.
- Phủ sóng: 140m².
- Hỗ trợ hơn 350 thiết bị kết nối.
- WiFi 6 (4x4 MIMO).
- Cấp nguồn qua PoE.
Đặc tính kỹ thuật
| Mechanical | |
| Dimensions | Ø197 x 35 mm |
| Weight | Without mount: 460g With mount: 600g |
| Enclosure material | Polycarbonate |
| Mount material | Stainless steel (SUS304) |
| Weatherproofing | IP54 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet Bluetooth |
| Power method | PoE |
| Power supply | UniFi PoE switch 48V, 0.5A PoE adapter (not included) |
| Supported voltage range | 44-57V DC |
| Max. power consumption | 13W |
| Max. TX power | 2.4 GHz: 22 dBm 5 GHz: 26 dBm |
| MIMO | 2.4 GHz: 2 x 2 (UL MU-MIMO) 5 GHz: 4 x 4 (DL/UL MU-MIMO) |
| Throughput rate | 2.4 GHz: 573.5 Mbps 5 GHz: 4.8 Gbps |
| Antenna gain | 2.4 GHz: 4 dBi 5 GHz: 6 dBi |
| LEDs | White/blue |
| Button | Factory reset |
| Mounting | Wall/ceiling (Included) |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Concurrent clients | 350+ |
| Zero wait DFS | Yes (Supported with upcoming firmware versions) |
| Supported Data Rates | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Application Requirements | |
| UniFi Network | Version 6.1.56 and later |
- Bảo hành: 12 tháng.
