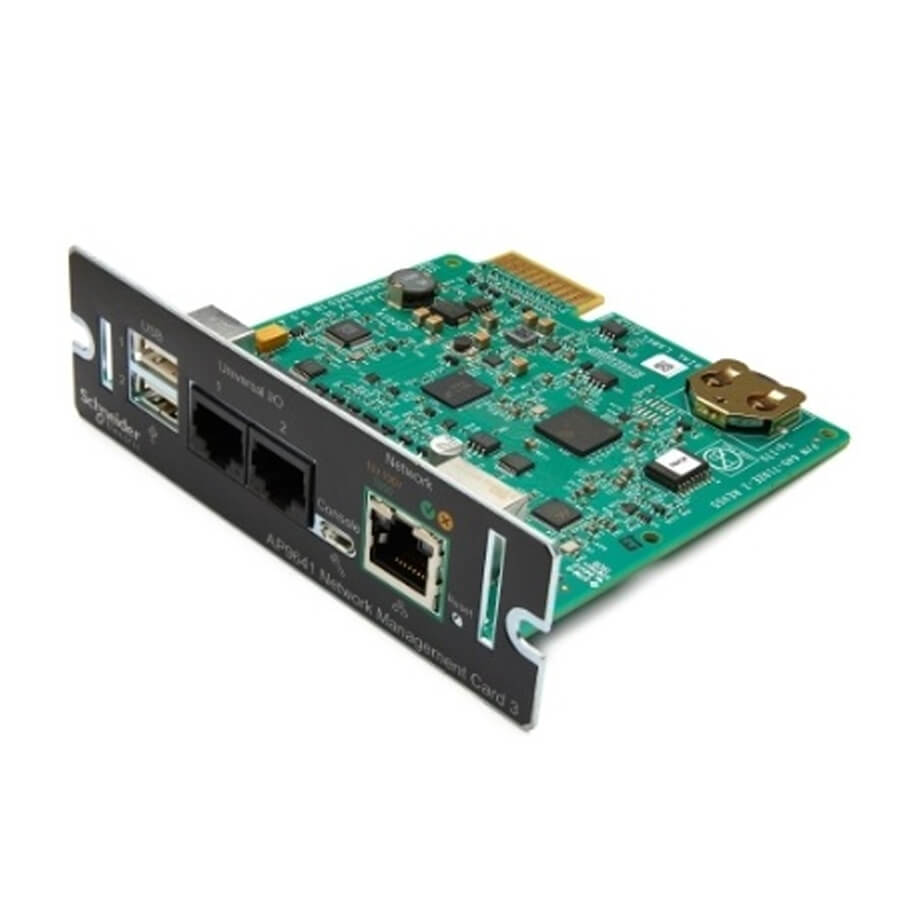

UPS Network Management Card 3 APC AP9641
- UPS Network Management Card 3 with Environmental Monitoring.
- Remote monitoring and control of an individual UPS by connecting it directly to the network.
Specifications
| Features | |
| BACnet/IP Support | Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS only) |
| Command line interface | Offers simultaneous remote management access through Telnet and SSH |
| Compatible with SmartSlot enabled UPSs | Compatible with Smart-UPS |
| Device Encryption | Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3 |
| Expandable Input and Output Ports | Supports the Temperature Sensor, Temperature and Humidity Sensor and Dry Contact I/O Accessory |
| Gigabit Ethernet Support | Supports faster Communication at 1 Gbps (Gigabit per second) over Network. |
| IPv6 Support | Capable of operating on a network using IPv6 protocol |
| Micro-USB based Console Support | For faster and easier Troubleshooting and Configuration. |
| Modbus TCP Support | Supports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP |
| Multiple language support | Web browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese |
| Multiple user access | Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users |
| Root of Trust Support | Supports Secure Boot with Root of Trust for enhanced Security |
| Smart Battery Management Support | Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only) |
| Standard UPS RFC 1628 MIB Compatible | Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB |
| UPS Firmware Update | User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only) |
| Manageability | |
| Enterprise management system compatible | Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1 and SNMPv3 using the PowerNet MIB |
| Notification | Be notified of problems to ensure crucial situations are dealt with in a timely manner. |
| Integrates with StruxureWare Data Center Expert | An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network |
| Event logging | Pinpoint the timing and sequence of events leading up to an incident with the event log |
| Data logging | Identify problematic trends before they escalate or export the data log for analysis. |
| Scheduled shutdown and reboot | Customize shut down and reboot of connected equipment and UPSs |
| Protection | |
| Password Security | User-selectable password with strong password rules and reset password mechanism |
| Network Shutdown | Reliable network-based shutdown of multiple servers |
| Radius support | Use an existing radius server to securely authenticate, authorize, and account for your APC device |
| Multi-tier user access | Supports up to four access levels - Administrator, Device User, Read-Only User and Network-only User - with user name and password requirements |
| Availability | |
| Reboot equipment remotely | Saves dispatching technicians to remote locations |
| Marketing Features | |
| Remote device management | Enable management of your UPS by connecting it directly to the network |
| Fault notification | Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime. |
| Total Cost of Ownership | |
| Flash upgradeable firmware | Install maintenance releases of firmware remotely using FTP |
| Browser Accessible | View the user interface with a browser. Provides quick access from anywhere on a secure network |
| Communications & Management | |
| Authentication | Radius |
| Physical | |
| Dimension (Height x Width x Depth) | 38x121x114 mm |
| Net Weight | 0.09 kg |
| Environmental | |
| Operating Temperature | 0 - 45°C |
| Operating Relative Humidity | 0 - 95% |
| Operating Elevation | 0-3048meters |
| Storage Temperature | -5 - 45 °C |
| Storage Relative Humidity | 0 - 95 % |
| Storage Elevation | 0 - 15240meters |
- Bảo hành: 3 năm.
