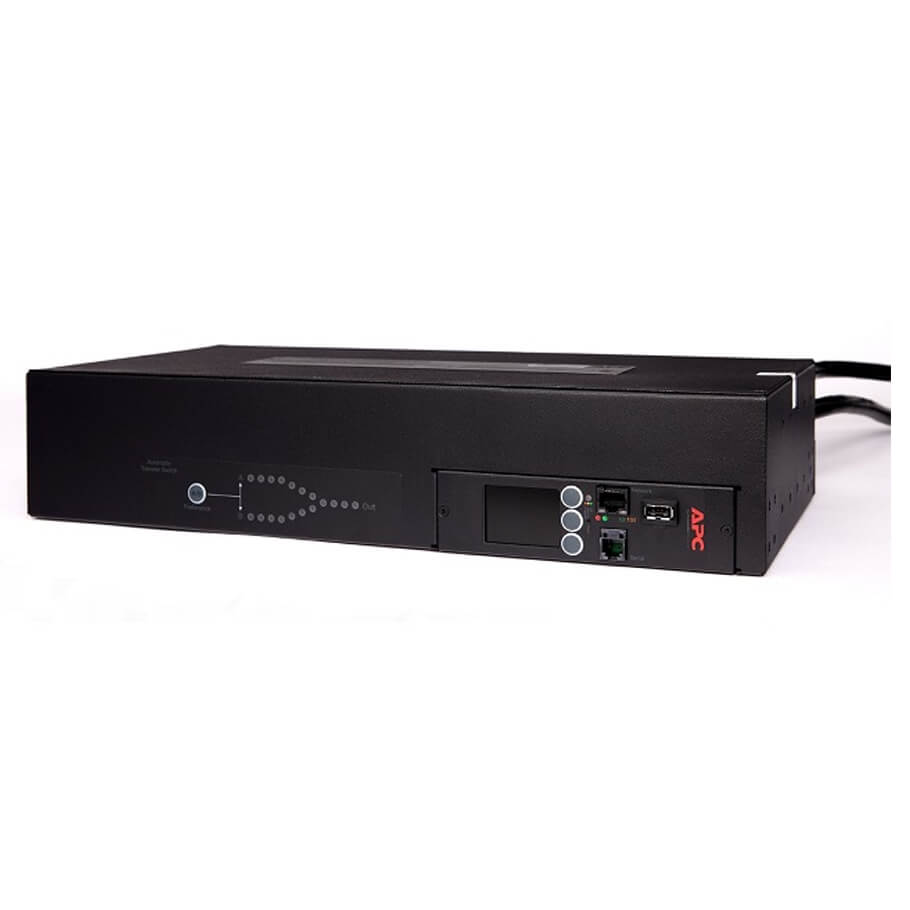

Rack ATS APC AP4424
- Rack ATS, 230V, 32A, IEC 309 in, (16) C13 (2) C19 out.
- Main Input Voltage: 230V.
- Main Output Voltage: 230V.
- Input Connection Type: IEC 60309 32 A 2P+E.
- Number of rack unit: 2U.
- Provided equipment: Rack Mounting brackets; RS-232 configuration cable; Serial configuration cable.
Thông số kỹ thuật
| Main | |
| Main Input Voltage | 230V |
| Main Output Voltage | 230V |
| Input Connection Type | IEC 60309 32 A 2P+E |
| Number of rack unit | 2U |
| Cable length | 8ft (2.44m) |
| Number of cables | 2 |
| Provided equipment | Rack Mounting brackets RS-232 configuration cable Serial configuration cable |
| Physical | |
| Colour | Black |
| Dimension (H x W x D) | 8.8 x 43.2 x 23.6 cm |
| Weight | 6.94kg |
| Mounting location | Front Rear |
| Mounting preference | No preference |
| Mounting mode | Rack-mounted |
| Input | |
| Network frequency | 50/60 Hz |
| Max line current | 32A |
| Input current limits | 32A |
| Load capacity | 7400VA |
| Output | |
| Maximum Total Current Draw per Phase | 32 A |
| Number of power socket outlets | 16 IEC 60320 C13 2 IEC 60320 C19 |
| Protection Type | Circuit breaker |
| Conformance | |
| Standards | EN 55022 Class A FCC Part 15 class A |
| Environmental | |
| Ambient air temperature for operation | -5…45 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -13…149 °F (-25…65 °C) |
| Storage Relative Humidity | 5…95% |
| Storage altitude | 0…50000 ft (0.00…15240.00 m) |
- Công nghệ Nhật Bản.
- Bảo hành: 12 tháng.
