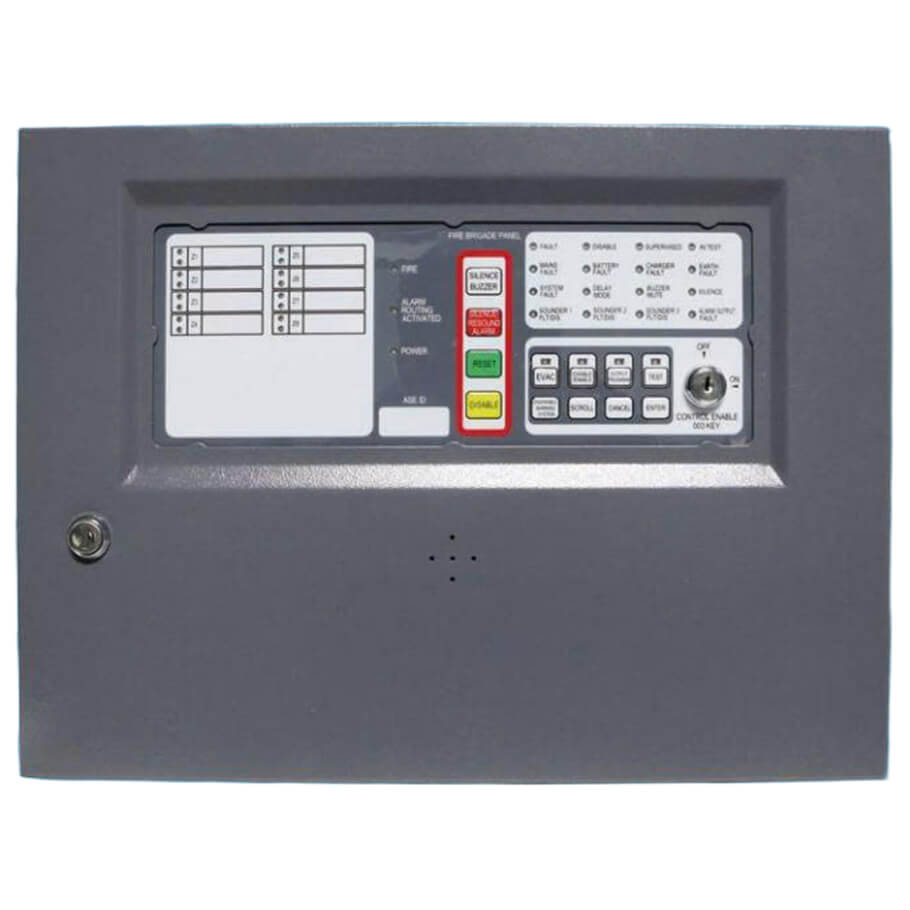

Trung tâm báo cháy 8 kênh GST GST-108A
The GST-108A conventional fire control panels provide eight zones of fire detection. All panels have been designed to offer high standards of performance, reliability and quantity and comply fully with BS5839, Part 4, 1988 and EN 54 parts 2 and 4.
Specification
- Operating voltage: 220VAC ± 15% , 50Hz.
- Standard: BS5839, Part 4, 1988 and EN 54 parts 2 and 4.
- Approval: CE, LPCB.
- Operating Temperature: -10°C to 40°C @ 95% relative humidity.
- Standby Batteries: 7AH, 24 hours monitoring state .
- Output Voltage: 20Vdc to 28Vdc.
- Static Loading Current: 2.4mA (when connected with 15 conventional detector).
- Fire Alarming Resistance: 150Ω-1.5KΩ (normal 470Ω).
- End Of Line resistor: 4.7KΩ or AEOL (Active End Of Line).
- Fire Alarm Output: Output voltage: 20VDC ~28VDC; Output current: 0.5A.
- Fault Output Capacity: Passive contact output: 24VDC/1A.
- Aux.Power Output: 20VDC to 28VDC, 0.5A.
- Repeater Panel Output: 10mA.
- Zone Capacity: 8 zone.
- Application: Indoor use.
- Materials and colour: Coated metal/Grey.
- Dimension: 380mm x 320mm x 95mm.
- Bảo hành: 12 tháng.
