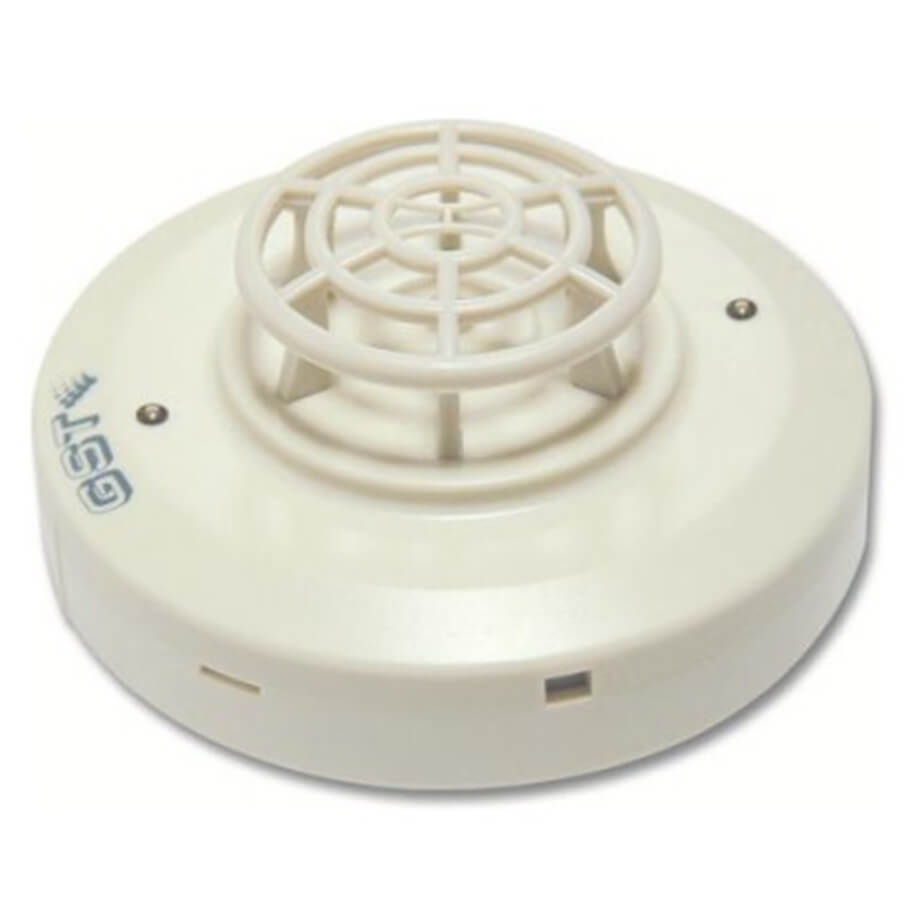

0916 287 068 Đầu dò báo nhiệt địa chỉ GST I-9103
Đầu dò báo nhiệt địa chỉ GST I-9103
- I-9103 Intelligent Rate of Rise and Fixed Temperature Heat Detector is an addressable fire alarm device cooperating with GST intelligent fire alarm control panels to build a fire detection system.
- The detector shows fire alarm by the LED indicators. It uses thermistor as its sensor and transmits the signal to a microprocessor which, after voltage transfer, processes the signal using intelligent arithmetic and sends any fire alarm to the control panel. The LED indicators will then be lit by the control panel.
- Twin LED for 360°view.
- Electronically addressed in field.
- Built-in microprocessor stores 14 history data.
- Rate of rise and fixed temperature alarm modes.
- Self-diagnostic.
- Remote indicator output available.
- Complies with EN 54-5 standard.
Thông số kỹ thuật
| Model | I-9103 |
| Operating Voltage | Loop 24V (16V～28V) |
| Standby Current | ≤0.8mA |
| Alarm Current | ≤5.0mA |
| Indicators | Red. Flashes in normal condition, and illuminates in alarming |
| Remote indicator output | Directly connect to remote indicator (built-in 5.1kΩ resistor in series. Max. output current is 5.0mA). Quiet in normal condition. Illuminates in alarming. |
| Action Temperature | 58℃ |
| Class | A1R |
| Programming Method | Electronically programming |
| Code Range | One address within 1～242 |
| Wiring | Non-polarized 2-core for loop. Polarized 2-core for remote indicator. |
| Ingress Protection Rating | IP33 |
| Ambient Temperature | -10℃～+50℃ |
| Relative Humidity | ≤95%, non condensing |
| Material and Color of Enclosure | ABS, white (RAL 9016) |
| Dimensions | Diameter: 100mm Height: 58mm (with base) |
| Mounting Hole Distance | 45mm～75mm |
| Weight | About 120g |
- Bảo hành: 12 tháng.
