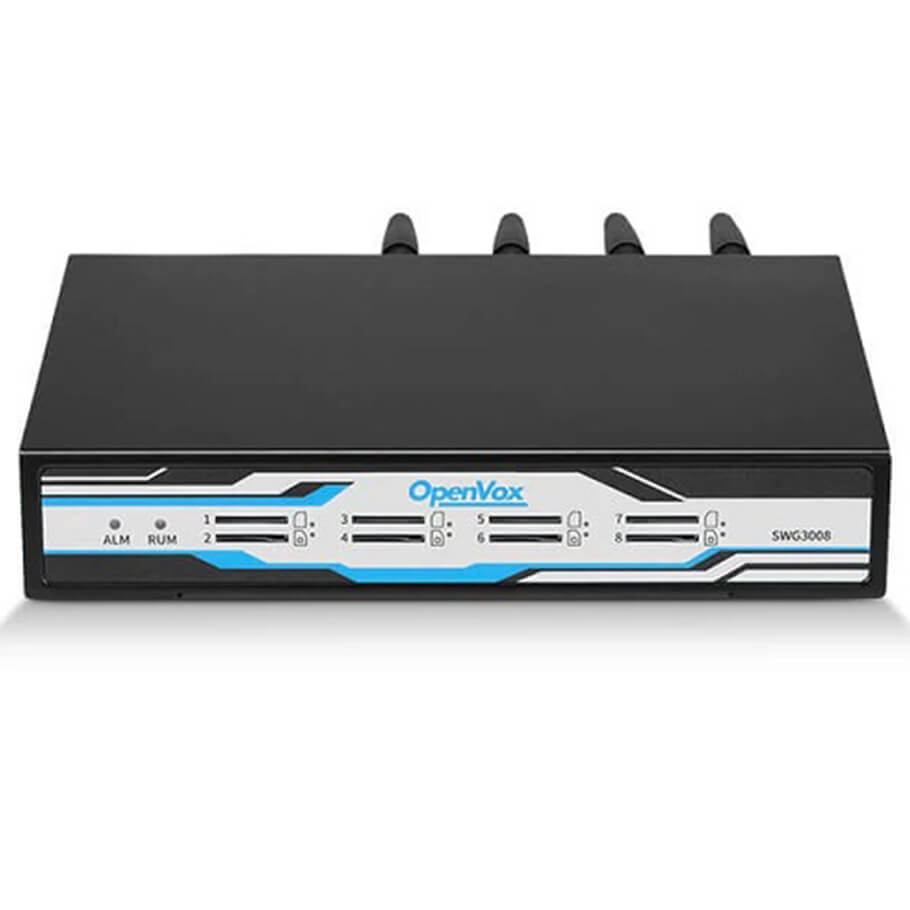

Thiết bị mạng LTE 8 kênh SIM di động Openvox SWG-3008L
- Hỗ trợ 8 khe cắm sim.
- Sử dụng cho mạng 2G, 3G, 4G.
- SIM Card: Hot-Swap.
Tính năng
VoIP Characters
- Support SIP/IAX2 Protocol
- DTMF Mode: RFC2833/Inband/SIP Info
- SIP V2.0 RFC3261 Compliance
- Abundant Codecs:G.711A, G.711U, G.729, G.722, G.726, GSM
- Work as both SIP Client and Server mode
Network
- IPv4, UDP/TCP, ARP, DHCP, NTP, DNS, HTTP/HTTPS, SSH
- OpenVPN/PPTP/ N2N/ L2TP
- Ping & Traceroute
- Firewall
Management
- Friendly GUI and easy configuration
- WEB/SSH Access and Management
- Support configuration files backup and restore
- Support multiple languages
- Firmware Update by Web
- CDR
- Detailed Log
- Network and SIP packet capture
- Network and SIP capture
System Features
- SIP/IAX2/Wireless Group Settings
- Random Call Interval
- Call Duration Limitation
- Open API Protocol
- Two-stage Dialing
- Multiple SMS API
- SMS/USSD
- PIN Identification
- SMS Bulk Transceiver and Auto Resend
- SMS to Email
- SMS Forwarding and Quick Reply
- SMS Remotely Controlling Gateway
- Support SMPP, SNMP, MMP
- Mobile Number Portability (MNP)
- Flexible Call Routings
- Schedule Reboot
- Support for Custom Scripts, Dialplans
- Support OpenVox Cloud Service
- CLID Display & Hide (Need operators’ support )
Thông số kỹ thuật
| Product Name | SWG-3008L |
| Module Type | LTE |
| Module Number | 8 |
| Sim Slot Number | 8 |
| Band | LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B8 TD-SCDMA: B34/B39 CDMA: BC0 GSM: 900/1800MHz |
| Weight (bare) | 0.8kg |
| Power | 10W |
| Dimension (bare) | 190 x 140.8 x 35 mm |
| SIM Card | Hot-Swap |
| LAN | 1 x 10/100M |
| WAN | 1 x 10/100M |
| USB Micro-B | 1 (Supports USB Micro-B storage) |
| Operation Temperature | 0℃ ~ 45℃ |
| Operation Humidity Range | 10% ~ 90% |
| Storage Temperature Range | -20℃ ~ 70℃ |
- Bảo hành: 24 tháng.
