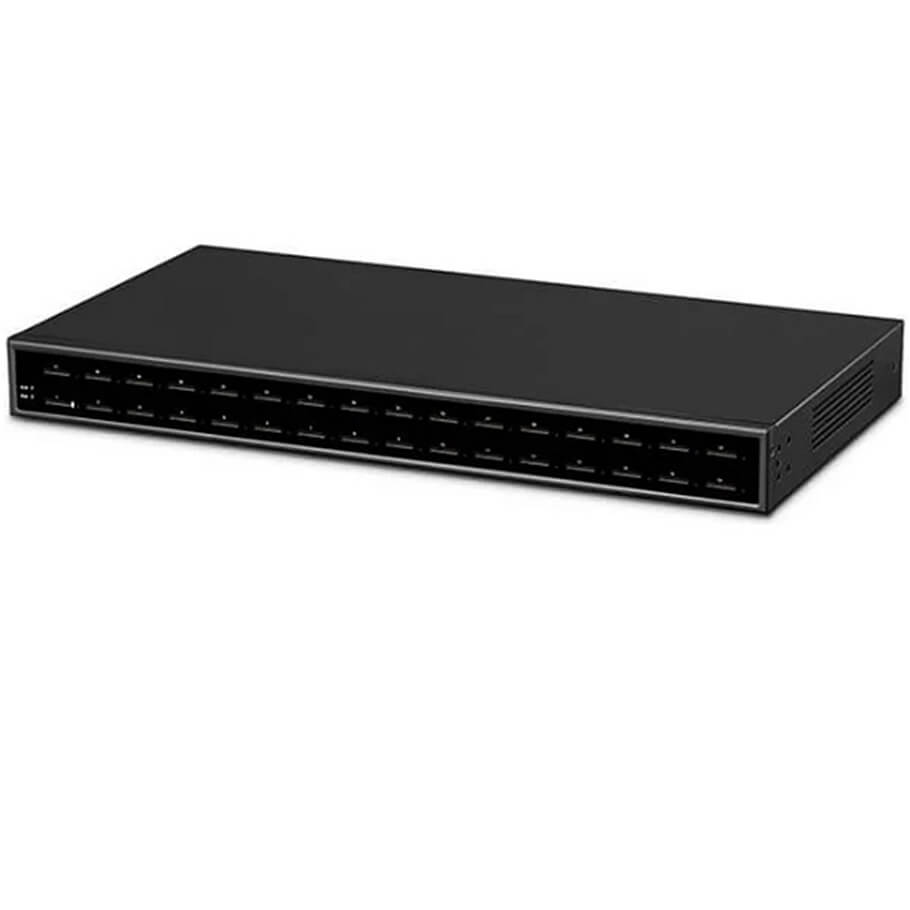

Thiết bị mạng LTE 32 kênh SIM di động Openvox SWG-3032L
- Hỗ trợ 32 khe cắm sim.
- Sử dụng cho mạng 2G, 3G, 4G (GSM/WCDMA/LTE).
- SIM Card: Hot-Swap.
- Hỗ trợ lưu trữ USB Micro-B
Tính năng
VoIP Characters
- Support SIP/IAX2 Protocol
- DTMF Mode: RFC2833/Inband/SIP Info
- SIP V2.0 RFC3261 Compliance
- Abundant Codecs: G.711A, G.711U, G.729, G.722, G.726, GSM
- Work as both SIP Client and Server mode
Network
- IPv4，UDP/TCP，ARP, DHCP, NTP, DNS, HTTP/ HTTPS, SSH
- VPN Type: OpenVPN/PPTP VPN/N2N VPN/L2TP VPN
- Ping & Traceroute
- Firewall
Management
- Friendly GUI and easy configuration
- WEB/SSH Access and Management
- Support configuration files backup and restore
- Support multiple languages
- Firmware Update by Web
- CDR
- Detailed Log
System Features
- SIP/IAX2/Wireless Group Settings
- Random call interval
- Call Duration Limitation
- Open API Protocol (based on Asterisk)
- Two-stage dialing
- Multiple SMS API
- SMS/USSD
- PIN Identification
- SMS Bulk Transceiver and Auto Resend
- SMS to Email
- SMS Forwarding and Quick Reply
- SMS Remotely Controlling Gateway
- Support SMPP
- Flexible Call Routings
- Schedule Reboot
- Support MMP
- Support for Custom Scripts, Dialplans
- Support OpenVox Cloud Service
- CLID Display & Hide (Need operators’ support)
- Support SNMP
Thông số kỹ thuật
| Product Name | SWG-3032L |
| Module Type | LTE |
| Module Number | 32 |
| Sim Slot Number | 32 |
| Band | LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B8 TD-SCDMA: B34/B39 CDMA: BC0 GSM: 900/1800MHz |
| Weight (with packaging) | 4.4kg |
| Power | 54W |
| Dimension (bare) | 440 x 45 x 220 mm |
| Dimension (with packaging) | 510 x 90 x 350 mm |
| SIM Card | Hot-Swap |
| LAN | 1 x 10/100M |
| WAN | 1 x 10/100M |
| USB Micro-B | 1 (Supports USB Micro-B storage) |
| Console | 1 |
| Operation Temperature | 0℃ ~ 45℃ |
| Operation Humidity Range | 10% ~ 90% |
| Storage Temperature Range | 20℃ ~ 70℃ |
- Bảo hành: 24 tháng.
