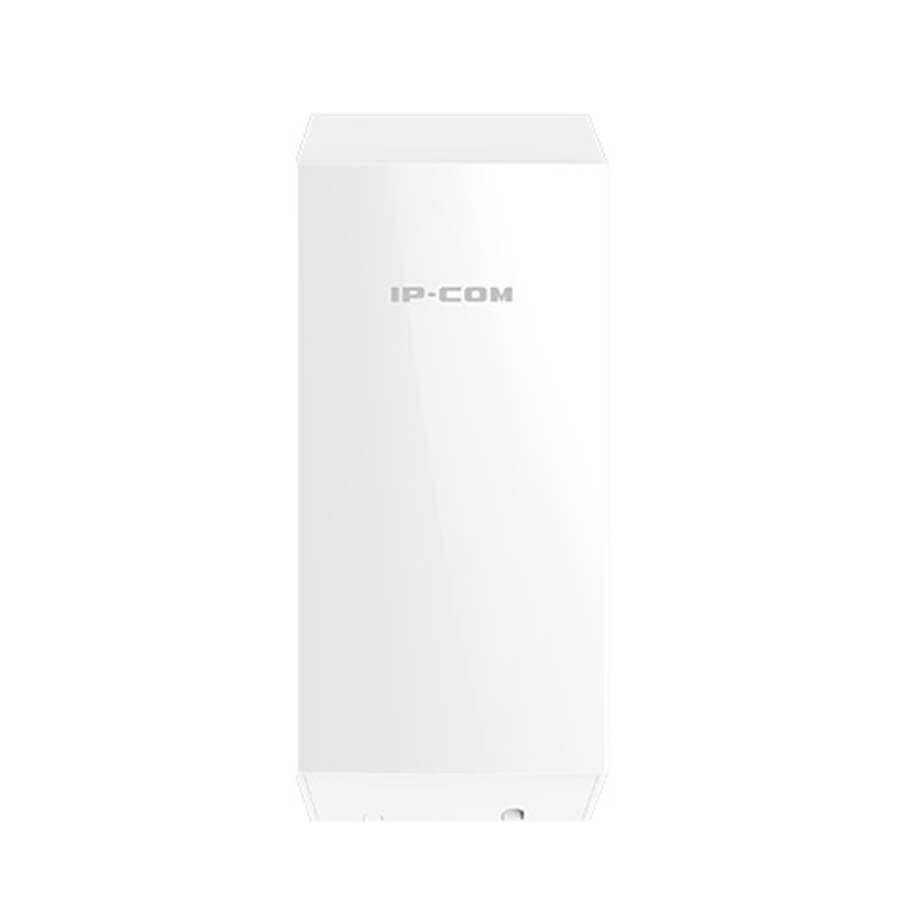

Point to Point Outdoor CPE IP-COM CPE3
- Point to Point Outdoor CPE IP-COM CPE3 là thiết bị phát sóng Wifi ngoài trời khoảng cách xa.
- Băng tần: 2.4Ghz.
- Tốc độ: 300Mbps.
- Khoảng cách kết nối: 500m.
- Chuẩn: IEEE 802.11b/g/n.
- Antenna: 8dBi định hướng.
- Ứng dụng: CCTV Surveillance, WISP.
- Tiêu chuẩn chống nước: IP65.
- Kích thước: 190.35 x 80 x 67.5 mm.
Đặc tính kỹ thuật
| Model | CPE3 |
| Product Information | |
| Dimensions | 190.35x80x67.5mm |
| Deployment | Pole Mount |
| Application Scenarios | Long range video surveillance,data transmission and WISP CPE |
| Hardware Features | |
| Frequency Range | 2.4GHz |
| Maximum Wireless Rate | 300Mbps |
| Waterproof Level | 1x10/100Mbps PoE/LAN Port |
| Antennas Gain | 8dbi |
| Antenna Beamwidth | Horizontal: 60° Vertical: 60° |
| Reset Button | 1 |
| Max Power Consumption | 2.6W |
| Waterproof Level | IP65 |
| LED indicator | PoE/LAN,WiFi,LED1,LED2,LED3 |
| Power Method | DC or Passive PoE |
| Passive PoE | Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins) Voltage range: 9-12VDC |
| Receiver sensitivity | MCS0: -92dbm MCS7: -72dbm |
| Software Features | |
| Operating mode | AP/Station/WISP |
| Compliant Standards | IEEE 802.11b/g/n |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Client Limitation For SSID | Support |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server | Support |
| VPN Pass-Through | PPTP,L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time&Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Log | Support |
| Managed By Controller | PC Software -- CPE Controller |
| Others | |
| Package Contents | 1x2.4GHz 8dBi Outdoor CPE 1xPower Adapter 1xPoE Injector 2xPlastic Staps 1xQuick Installation Guide |
| Operating Temperature | -30℃ ~ 55℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1 |
| Default Login Username | Admin |
| Default Login Password | Admin |
| Certifications | FCC/CE/RoHS |
- Bảo hành: 36 tháng.
