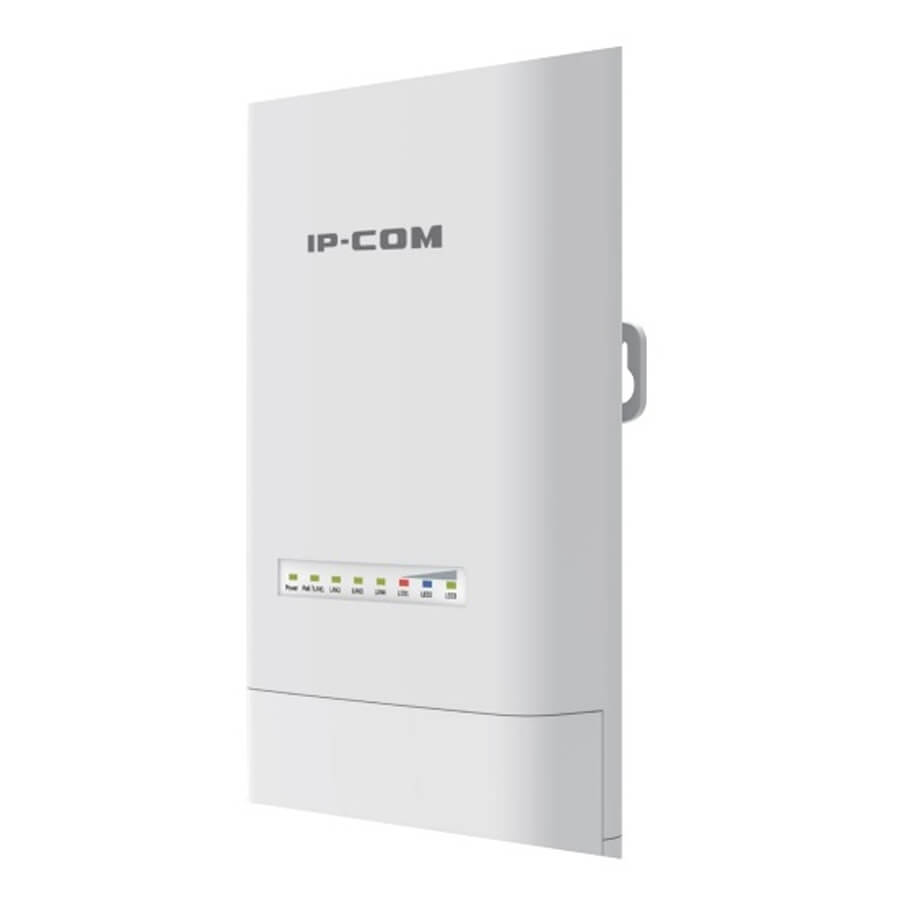

5GHz 12dBi ipMAX ac Outdoor CPE IP-COM CPE6S
- 5GHz 11AC 867Mbps
- 12dbi directional antenna
- Four fast ethernet Port
- IP65 waterproof enclosure
- 6000V Lightning Protection
- 12V-1A DC/ 12V-1A Passive PoE supported
Specifications
| Model | CPE6S |
| Dimensions | 193*109*61mm |
| Deployment | Pole/Wall Mount |
| Application Scenarios | PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance |
| Hardware Features | |
| Frequency Range | 5GHz |
| Compliant Standards | IEEE 802.11a/n/ac |
| Private TDMA Protocol | ipMAX |
| Maximum Wireless Rate | 867Mbps |
| Interfaces | 4*10/100Mbps Ethernet Port |
| Antennas Gain | 12dBi |
| Antenna Beamwidth | Horizontal: 30° Vertical: 30° Elevation: 30° |
| Reset Button | 1 |
| Power Consumption | 4.7W |
| Waterproof Level | IP65 |
| LED indicator | Power,PoE/LAN1,LAN2,LAN3,LAN4LED1,LED2,LED3 |
| Power Method | 12V1A Passive PoE 12V 1A DC |
| Lightning Protection | 6000V |
| PoE 802.3af/at | / |
| Passive PoE | Passive power over ethernet via PoE/LAN (+4,5pins; -7,8pins ) up to 60 meters Voltage range: 11-13V DC |
| Software Features | |
| Operating mode | AP/Station/WISP/P2MP/WDS Repeater/Router |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Channel Bandwidth | 20/40/80MHz |
| Client Limitation For SSID | Support |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security | 64/128 WEP, WPA-PSK, WPA2-PSK, WPA&WPA2-PSK, WPA, WPA2 |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server | Support |
| VPN Pass-Through | PPTP,L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time&Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Log | Support |
| Managed By Controller | PC Software -- CPE Controller |
| Others | |
| Operating Temperature | -30℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
- Bảo hành: 36 tháng.
