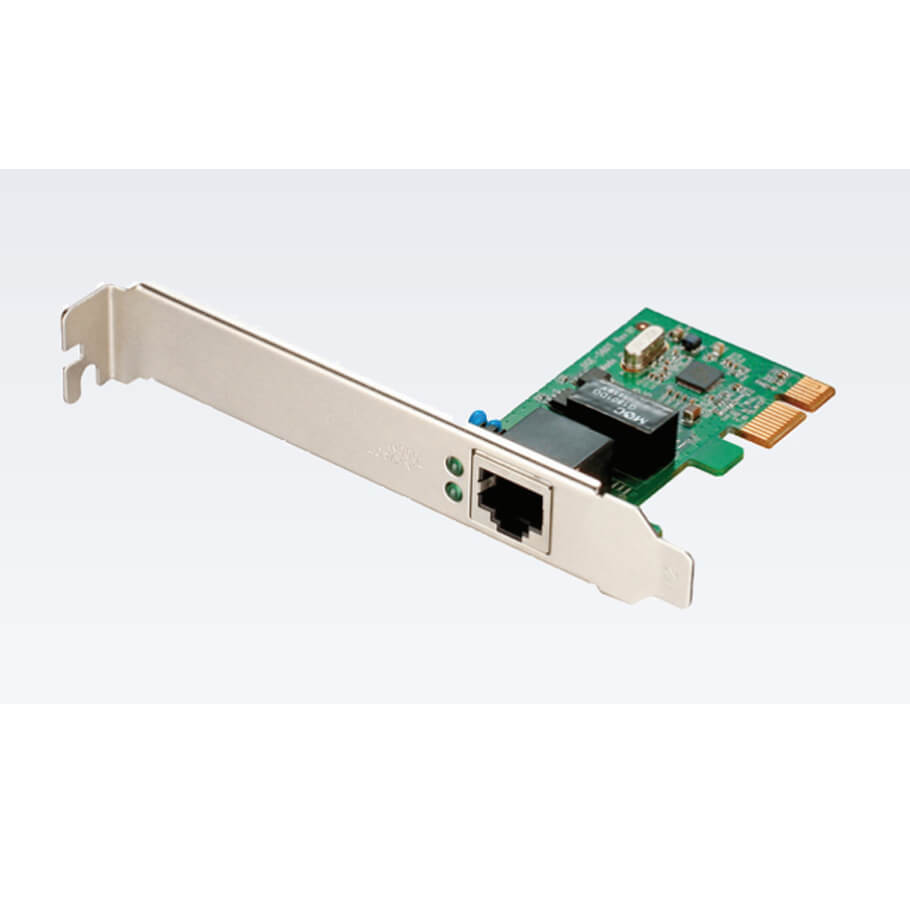

PCI Express Giga Network Adapter D-Link DGE-560T

Specifications

802.1P Priority Tagging

802.1Q VLAN Tagging

Wake-on-Lan and ACPI 2.0

802.3x Flow Control

802.3ad Link Aggregation

Interface Options

10Base-T

100Base-TX

1000Base-T

RJ-45

Management

SNMPv1 and Integrated Cable Diagnostics

PXE

RPL

RFC 1157 SNMP

Data Transfer Rate

Gigabit

Network Operation Mode

Full Duplex (2000 Mbps)

Network Protocols and Standards

802.3 Ethernet

802.3u Fast Ethernet

802.3ab Gigabit Ethernet

802.3x Flow Control

802.1Q VLAN Tagging

802.1P Priority Tagging

802.3ad Link Aggregation

802.1x Authentication

Emissions

CE

VCCI

FCC Class B

RoHS Compliant

Driver Support

Microsoft Windows 7 32/ 64bit

Microsoft Windows Vista 32/ 64bit

Microsoft Windows XP 32/64 bit

Microsoft Windows 2000

Linux for Kernel 2.4.x , 2.6.x

Free BSD 7.x and 8.0

NDIS2 for DOS

Novell client for DOS (ODI Client)

Novell server driver (Support OS 5.X and 6.X)

Mac OS 10.4, 10.5, 10.6 (x86-based Mac computer)

Temperature

Operating: 32° to 122°F (0° to 50°C)

Storage: 32° to 140°F (0° to 60°C)

Humidity

Operating: 5% ~ 95% RH, Non-condensing

Storage: 5% ~ 95% RH, Non-condensing

Dimensions (W x D x H)

0.1 x 3.5 x 2.2 inch (2.5 x 88.9 x 55.9mm)
